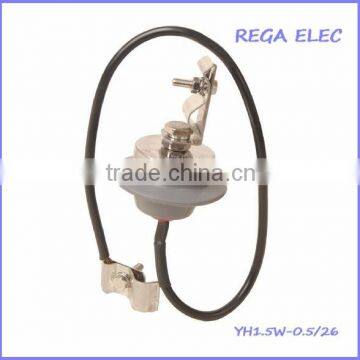

YH1.5W-0.5/26 L.V. Surge Arrester,polymer surge arrester

FOB Price

USD $2 - $20 / Piece

1000 Pieces(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port Shanghai
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	REGA
Model Number	Model:YH1.5W-0.5/26

Product Description

Specifications

1.Passed ISO9001 and IEC60099-4 standard.
2.The pass rate is up to 99.9%
3.OEM and sample is available.

Metal -oxide surge arrester(Lightning arrster, polymer surge arrester)

Model: YH1.5W-0.5/26

Specification:
1)Rated voltage:0.5kV
2)Continuous working voltage:0.42kV
3)DC reference voltageNo less than:1.2KV

Manufacturing standard:
Chinese National Standard
Accord with Chinese national technical requirements GB 11032-2000 JB/T8952-2005, JB/T 10497-2005, DL/T815-2002

More Technical Parameters as below

Type	Rated voltage	MCOV	Nominal discharge current	8/20us lightning current impulse	D.C 1mA voltage	2ms rectanglar current impulse withstand	Leaking current
Type	kV	kV	kA	kVp	kV	A	uA
YH 1.5W-0.28/1.3	0.28	0.24	1.5	1.3	0.6	100	15
YH 1.5W-0.5/2.6	0.5	0.42	1.5	2.6	1.2	100	15

Any trial order in small quantity is welcomed.

Please contact us now if you have any questions or requirements.
