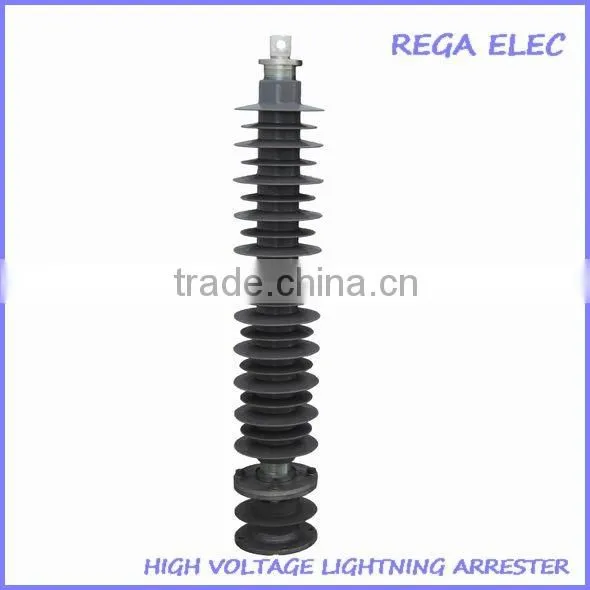

110kV&Above surge arrester,Surge protective Device,High-voltage Lightning Arrester

Specifications

1.ISO9001 quality management system
2.Own test laboratory
3.accordding to IEC60099-4 and IEEE(ANSI)C62.11
vide component

 More Technical Parameters as below:



Type	Nominal  system  voltage	Rated voltage	MCOV	8/20us lightning current impulse	D.C 1mA voltage	2ms rectanglar current impulse withstand	Height
	kV	kV	kV	kVp	kV	A	mm
YH 10WZ-90/235	110	90	72.5	235	130	800	1345
YH 10WZ-96/250	110	96	75	250	140	800	1345
YH 10WZ-100/260	110	100	78	260	145	800	1345
YH 10WZ-102/266	110	102	79.6	266	148	800	1345
YH 10WZ-108/281	110	108	84	281	157	800	1345
YH 10WZ-192/500	220	192	150	500	280	800	2485
YH 10WZ-200/520	220	200	156	520	290	800	2485
YH 10WZ-204/532	220	204	159	532	296	800	2485
YH 10WZ-216/562	200	216	168.5	562	314	800	2485



Keywords

Lightning arrester,voltage Suppressor,Surge Voltage Absorber,Polymer Lightning Arrester,High-voltage Lightning Arrester,Surge Arrester,Surege Protector,Surge protective Device,Lightning Protector,Polymer Arrester,Thunder Protection,Power surge Protector,Surge Suppressor,Overvoltage Protector,Thunder Protection,Electrical Control,System Protector,circuit Breaker,Direct stirck Protection, Power solutions,Power Factor Correction. Lightning Surge Arrester









 Any trial order in small quantity is welcomed.

 More other type lightning arrester for choose



















Please contact us now if you have any questions or requirements.
