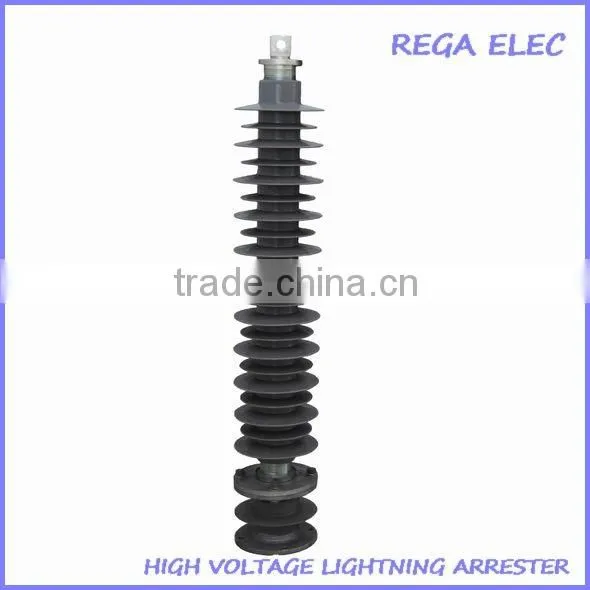

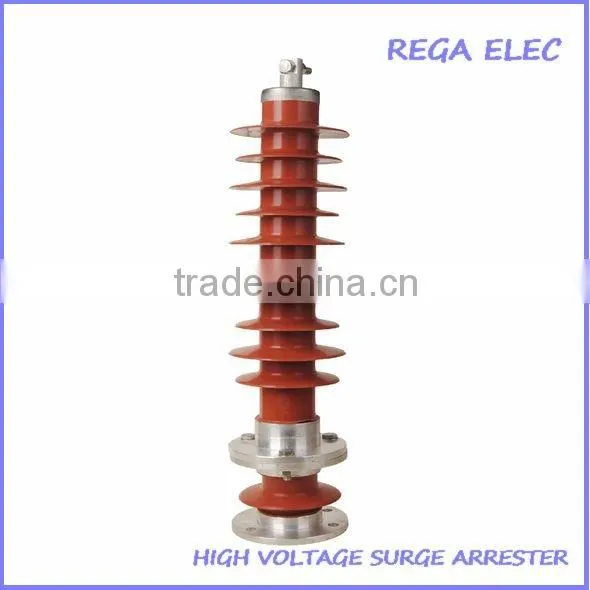

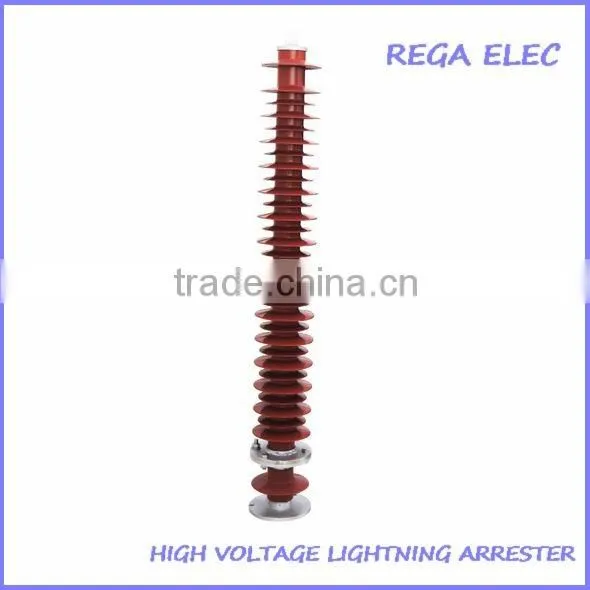

110kV&Above Surge Arrester,YH10WZ-90/235,surge Protective Device

Name: 110kV&Above Surge Arrester,YH10WZ-90/235,surge Protective Device
Brand: REGA
SKU: 130521653

US$ 2 - 20 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

REGA

Model Number:

YH10WZ-90/235

Jiaxing Rega Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name REGA

Model Number YH10WZ-90/235

Specifications

1.ISO9001 quality management system
2.Own test laboratory
3.accordding to IEC60099-4 and IEEE(ANSI)C62.11
vide component

More Technical Parameters as below:

Type	Nominal system voltage	Rated voltage	MCOV	8/20us lightning current impulse	D.C 1mA voltage	2ms rectanglar current impulse withstand	Height
Type	kV	kV	kV	kVp	kV	A	mm
YH 10WZ-90/235	110	90	72.5	235	130	800	1345
YH 10WZ-96/250	110	96	75	250	140	800	1345
YH 10WZ-100/260	110	100	78	260	145	800	1345
YH 10WZ-102/266	110	102	79.6	266	148	800	1345
YH 10WZ-108/281	110	108	84	281	157	800	1345
YH 10WZ-192/500	220	192	150	500	280	800	2485
YH 10WZ-200/520	220	200	156	520	290	800	2485
YH 10WZ-204/532	220	204	159	532	296	800	2485
YH 10WZ-216/562	200	216	168.5	562	314	800	2485
