20kw Wind Turbine

Name: 20kw Wind Turbine
Brand: Great-Trust
SKU: 130508041
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Great-Trust

Model Number:

GT10000W

Zhangjiagang Great-Trust Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Great-Trust

Model Number GT10000W

Type Other, Generator

Product Features:

Starting with low wind speed, wind energy utilization; small size, beautiful appearance, low vibration operation.
Humanized design, easy installation, maintenance and repair.
Using the new slip ring power output devices, to overcome the traditional small wind turbine wind when the cable winding.
The wind turbine blades using new technology by precision injection molding, together with optimized aerodynamic and structural design, wind energy utilization coefficient is high, increasing the annual generating capacity.

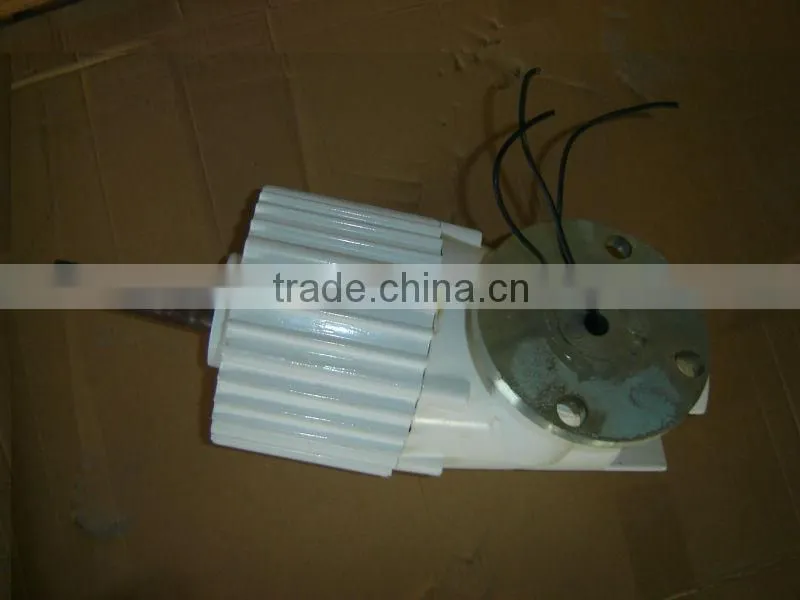

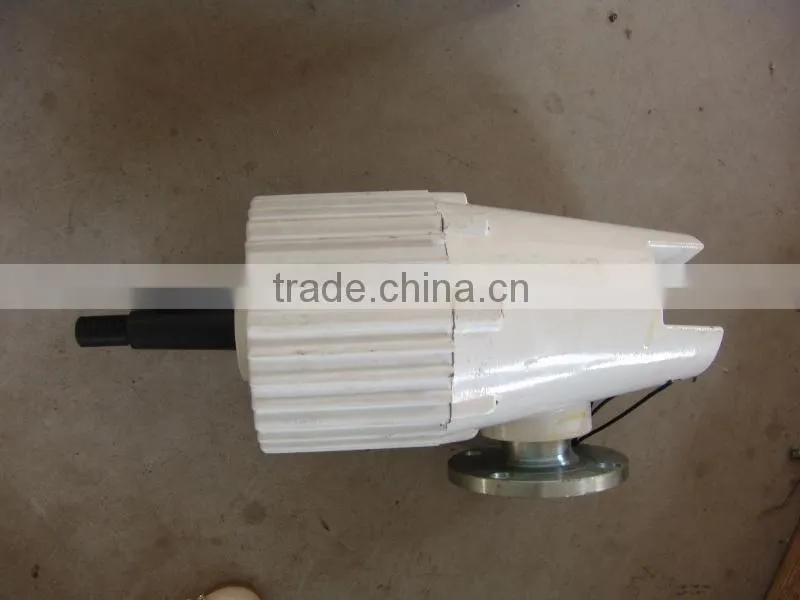

The permanent magnet generator rotor using patented technology alternators, together with the special stator design, effectively reducing the generator resistance torque, while allowing more wind turbines and generator has good matching characteristics, plant operation reliability.
Intelligent and efficient sine wave inverter dc ac inverter to 220V/50Hz or 110V/60Hz, can directly drive inductive load, but also has a short circuit, overload and battery over-discharge, overcharge automatic protection function, can effectively to prolong battery life.

Product Description

Model	NE-20KW
Rated power	20000W
Maximum Power	25000W
Rated voltage	380V
Start-up wind speed	3m/s
Rated wind speed	10m/s
Rated rotor speed	120r/m
Survival wind speed	35m/s
Top net weight	700kg
Wheel diameter	15m
Tower height	12m
Tower type	Guyed tower
Number of blades	3
Blades material	Reinforced Glass fiber
generator	Three-phase AC permanent magnet synchronous generator
Protection	Electronic-magnet & mechanic furling
Working temperature	-40°C-80°C
