Specifications
1.Decent appearance2.Easy operation
3.Visual LCD display
4.Perfect protection functions
5.Meet CE standard

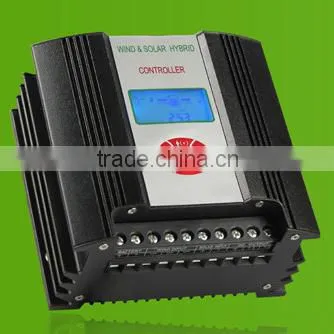

GTWS 48V Wind Solar Hybrid Street Light Controller
1.Introduction

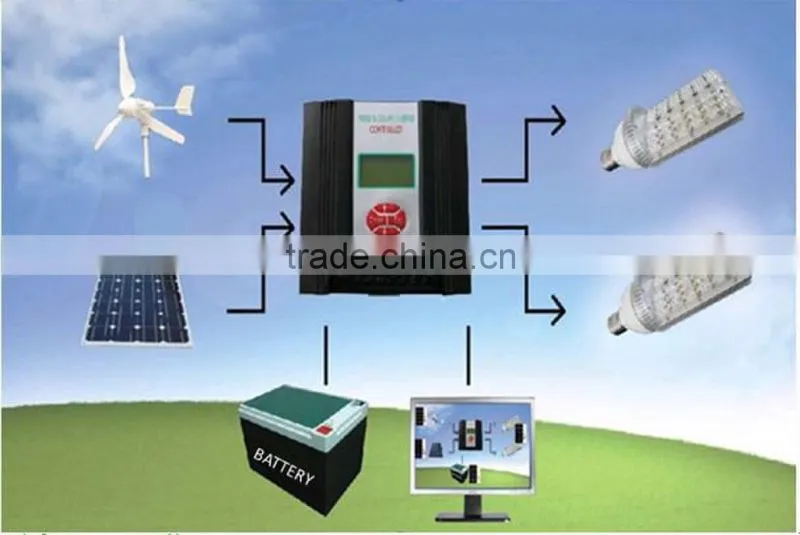

The wind/solar hybrid controller is specially designed for high-end small-scale wind / solar hybrid system and especially suitable for wind/solar hybrid street light system and wind / solar hybrid monitoring system. The controller can control wind turbine and solar panel at the same time and transform the wind and solar energy into electricity for DC load use, with excess energy stored into batteries.
2. Performance features
2.1Superior military-grade components to ensure the product stability.
2.2Perfect protection function, thus the system has higher reliability.
2.3Check and set all operation parameters as requirement from LCD display.
2.4Voltage limiting and current limiting charge mode ensures battery in the best charging status.
2.5Two DC Load output, light control, time control, constant output, and multiple output control mode selections.
2.6PWM stepless dumpload mode, releasing excess power into dumpload, making battery charging in best status.
2.7Design of high quality aluminum alloy appearance, with small size and good cooling effect.
3. Certifications
Small and medium-sized S&T enterprise technology innovation fund project approval
Anhui province high and new technology product certification
Utility patent of strong wind resistance, step less dump load wind power controller
Utility model patent for integration of rectification and dump load of wind power main circuit board
“Industrial Products Quality Supervision and Inspection Center Test Report” from Posts and Telecommunications
Ministry of Information Industry.
European CE certification.
Appearance design patent certification
4.Technical data
| Product Model | GTWS-06-48-S |
| Rated Battery Voltage | 48V |
| Rated Wind Turbine Input Power | 600W |
| Maximum Wind Turbine Output Power | 900W |
| Rated Solar Input Power | 300W |
| Charge Shutoff Voltage | 58V |
| Battery Under Voltage Shutoff | 43.2V |
| Battery Under Voltage Recovery | 48V |
| Input Over Voltage Shutoff | 64V |
| Light Control On Voltage | 4V |
| Light Control Off Voltage | 6V |
| Rated Output Current of Load 1 | 10A |
| Rated Output Current of Load 2 | 10A |
| Load 1 Output Control Mode | Light Control On and Light Control Off |
| Load 2 Output Control Mode | Light Control On and Time Control 5 Hours Off |
| Dumpload Control Mode | PWM |
| Display Mode | LCD |
| Quiescent Current | ≤20 mA |
| Ambient Temperature & Humidity Range | -20~+55°C/35~85%RH(Without Condensation) |
| Display Content | Battery Voltage, Wind Turbine Voltage, PV Voltage, Wind Turbine Current, PV Current, Wind Turbine Power, PV Power, Over Voltage, Under Voltage, Over Load, Short Circuit, Night etc status |
| Protection Function | Solar reverse charge protection , Solar reverse connection protection, |
| Battery over charge protection, Battery over discharge protection, | |
| Battery reverse connection protection, Over load protection, Short circuit protection, Lightning protection, Wind turbine current limiting, Wind turbine automatic brake and manual brake. | |
| By-pass function (Optional) | Auto Switch |
| Temperature Compensation Function (Optional) | -4mV/°C/2V ,–35°C--+80°C ,Precison:±1°C |
| Communication Mode (Optional) | RS232,RS485,RJ45,GPRS (Optional) |
| Dimension (LxWxH) | 205x150x82mm |
| Net Weight | 2.2kg |
| In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |
5.Optional Functions
| OPTIONAL FUNCTIONS | OPTIONAL ACCESSORIES |
| Temperature compensation function | Ethernet communication module |
| Wind turbine low voltage charge function | GPRS communication module |
| RS communication function | SD storage card |
| By-pass function | RS485-USB converter |
| SD card function | RS485-RS232 converter |
| Wind speed detection function | RS232-USB converter |
| Wind turbine rotate speed detection function | |
| Wind turbine micro current charge function |
