Split core (clip-on) outdoor current transformer
Split core outdoor current transformer is our new product, and only we can produce this kind of
outdoor split core current transformer in china now, and we provide best price and good quality as usual.
Application & Features
Utilities pole probe monitoring, measurement
Power distribution line monitoring
Building, factory energy management system
Measurement, moniting of low current in outdoor application
Current balancing monitoring
Smart grid application, energy efficiency
Inner Diameter:20mm
For cable line measuring below 600A
Primary Current: 0~600A
Accurately Class: 0.5%, 1%
Inner Diameter:20mm
Product specification
Model |
FSCT-20 |
Standards |
GB 20840 (IEC 61869), GB4208 |
Equipment maximum voltage |
0.33/0.72KV |
IP rating |
IP 57 |
Rated current |
10-600 Arms |
Max current |
1000 Arms |
Turns |
100-3000T |
Accuracy class |
0.5, 1.0 |
Rated output |
mA/mV/1A/5A |
Wire lead |
3*0.75mm2 sheathed wire |
Insulation strength |
3KVVAC/min |
Insulation impedance |
DC500V/100MΩ |
Rated frequency |
50-400HZ |
Working temperature |
—25℃~50℃ |
Storage temperature |
—30℃~90℃ |

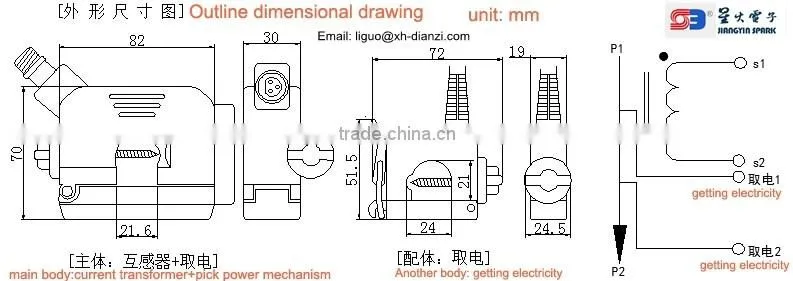

Drawing

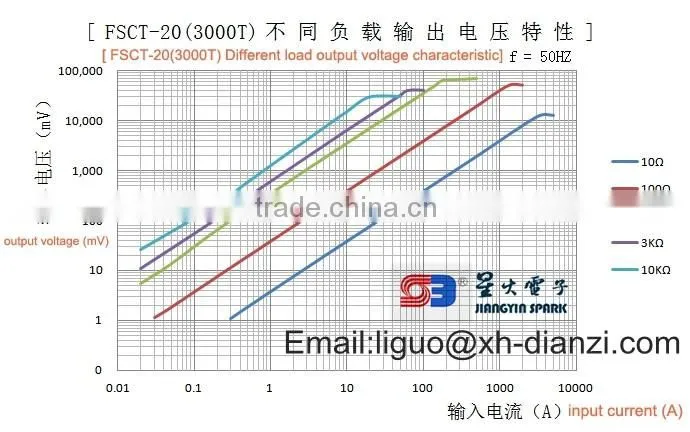

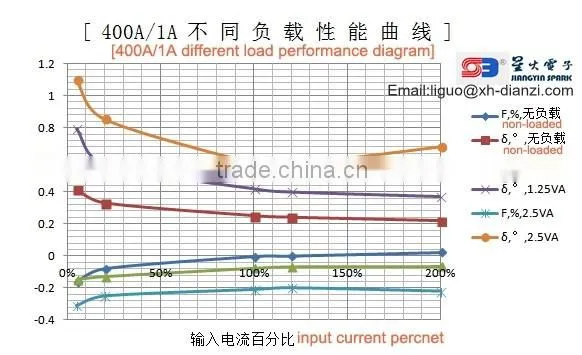

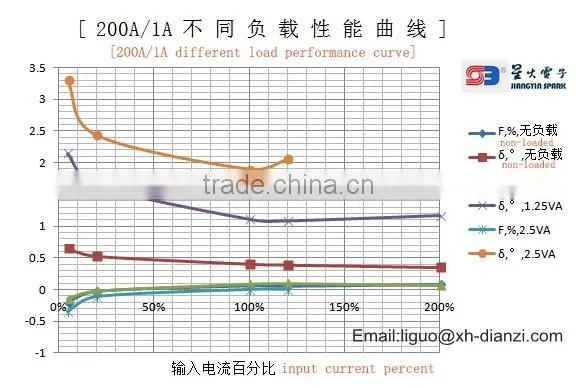

Testing picture
Certifications
Sales manager
