High quality single mode armored
G652D G655 Fiber Optical OPGW Cable
Product Information:
♦Product description of opgw overhead optical fibre cable

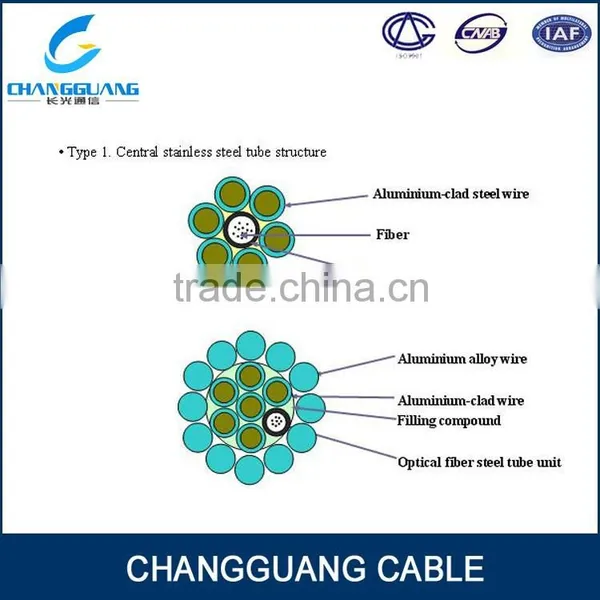

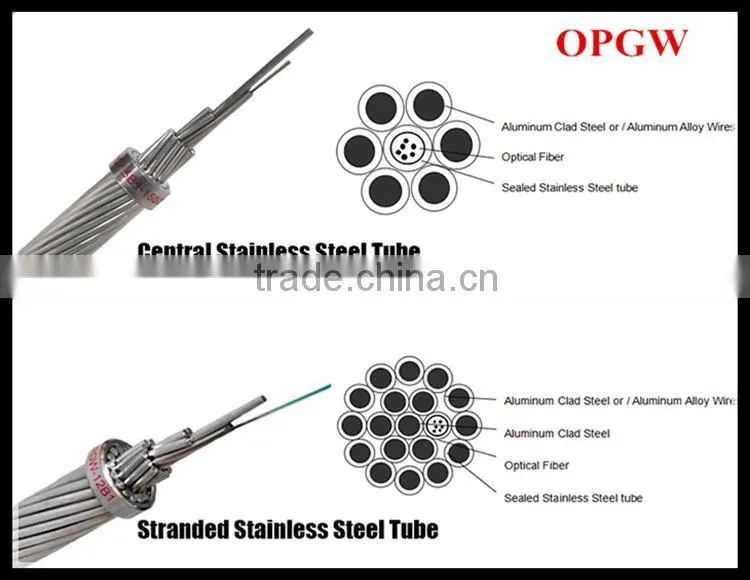

1.The central stainless steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their design is fully adapted to the most common electric line needs.
2.The stainless steel tube is stranded by double or three layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires.

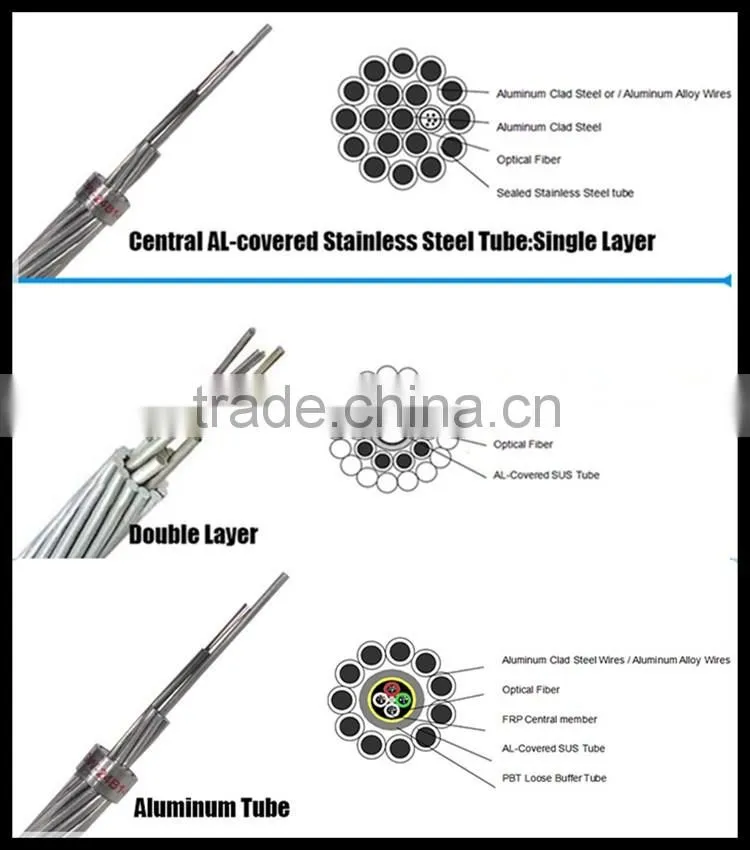

3.The central Al-covered steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires.Al-covered Stainless Steel tube design increases the cross section of AL,to reach a better fault current and lightning resistance performance.Apply to the transmission line which requires small diameter and large fault current.
4.The Aluminum tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires.Good anti-corrosion performance.Material and structure are uniform,good resistance to vibration fatigue.

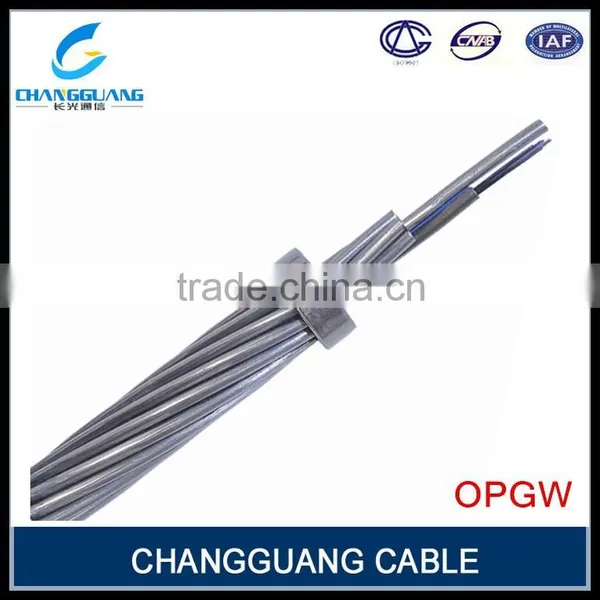

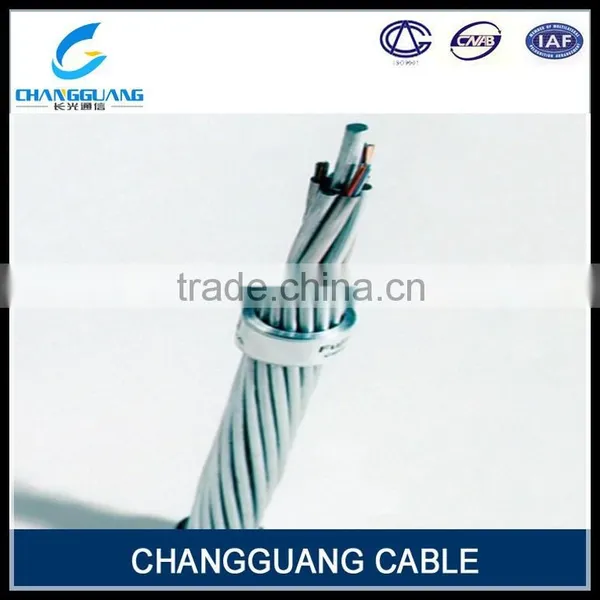

1.Stainless-steel optical fiber unit of central loose tube or layer stranding structure
2. Aluminium alloy wire and aluminium clad steel wire armored
3. Coated with anticorrosive grease between layers
4. OPGW can support heavy load and long span installation
5.OPGW can meet the ground wire‘s requirement of mechanical and electric by adjusting proportion of steel and aluminium
6. Easy to produce the similar specification of exist ground wire can replace the exist ground wire
Application:
1. OPGW cable is mainly used in 500KV, 220KV and 110KV lines, limited by power cut, security and other elements, mostly used in new lines. Its applications are:high pressure over 110kv, with a longer span (usually over 250M)
2. Easy to maintain, easy for line span, its mechanical property can meet a big line span
3. Outer OPGW is metal armoring, with no influence for high pressure electro-corrosion and degradation
4. To construct OPGW must cut power, resulting in greater loss, thus OPGW must be used in constructing high pressure line over 110kv
5. For OPGW performance index, the more short circuit current, the more need a good conductor to be metal armor, and reduce tension strength, while, if the tension strength is certain, to increase short circuit current capacity, the only way is to enlarge metal section area, resulting in an increased cable Dia and weight, so that security is a question for line pole strength.
Note
1. Only a part of cables are listed in the table. Cables with other spans can be inquired.
3. Specially designed Cable structure is available on request.
-
Packaging
Wooden drum, 3000m to 5000m/drum or as you required
Shipping methods.
By sea or by air
Sheath mark
applied at 1-meter intervals
a. Supplier: Changguang or as customer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters
24 Hours online service.
Enquiry will be replied in 2 hours.
Factory price with good service .
Free sample for 1 meter cable.
Changguang communication Technology (Jiangsu)Co., Ltd is aprofessional manufacturer of fiber
optic cable in China for more than 10 years.
We can supply a complete range of outdoor optic fiber / aerial fiber optic cable
/ duct fiber optic cable/ directly buried fiber optical cable/ ADSS, OPGW and
OPPC for power system transmission.
Our Main market for Single mode armored G652D G655 Fiber Optical opgw Cable
Q1:Can I have a sample for testing?
A: Actually we think samples are not very important.You can buy from anywhere.But we think
our cargos will better then any others.
Samples will be 10% higher then the cargo if your sample request is more than 1 meter.
Q2:Can I add my logo on the cable?
A:Yes,OEM are available for us.
But you should send us the Trademark authorization letter.
Q3 :Do you have inspection procedures for optic cable?
A:100% self-inspection before packing
Q4:Can we mix the 20ft container?
A: Yes,if the items are meet our min order qty.
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: B02 west district Taiwanese Industrial Park,Suqian city ,JiangSu provice China.
Our factory is near from GuanYin Airport of Xuzhou.We can pick you up in the airport.
Hotel booking service is available .
