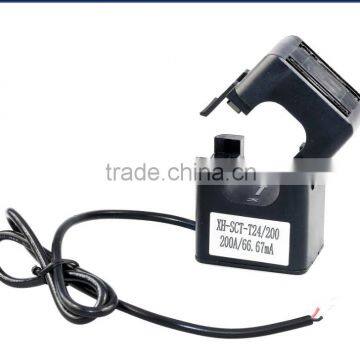

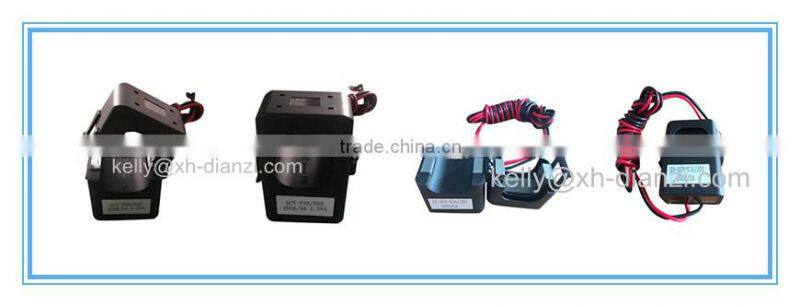

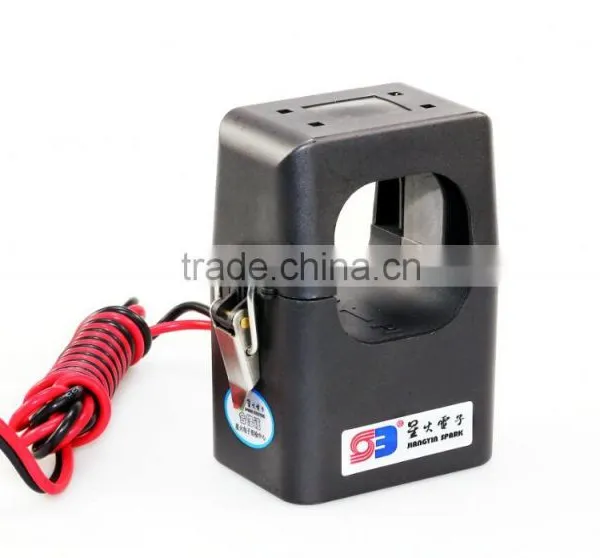

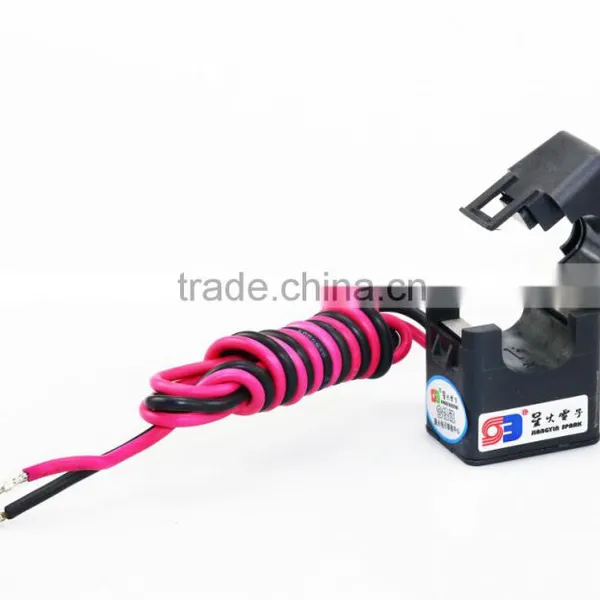

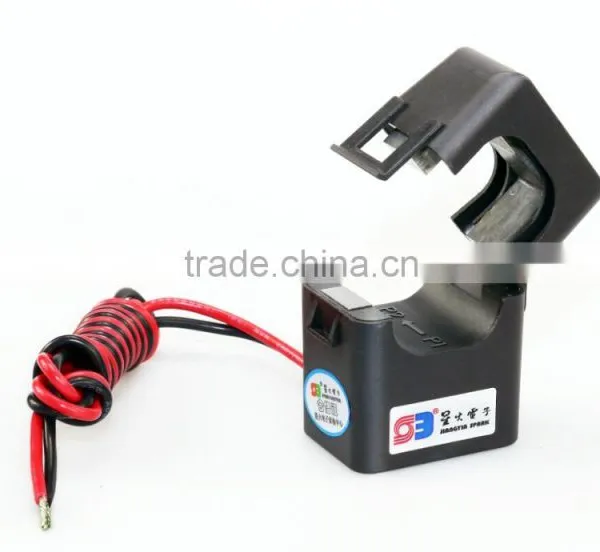

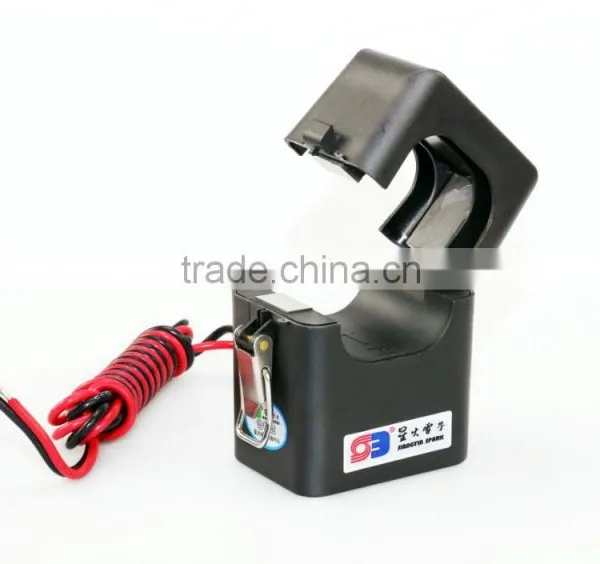

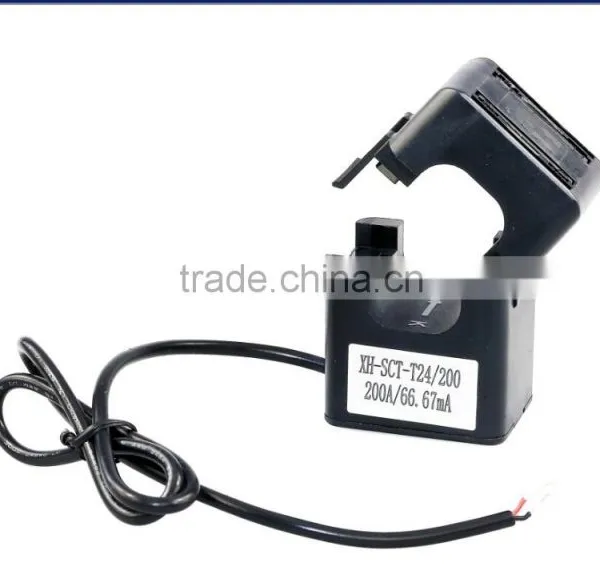

Help CenterSplit-Core 5A Output Current Transformer
Related Products
-
SCT-019 0.75" Window Size Single Phase Mini Split Core Current Transformer 333mV SecondaryUS$ 5 - 20MOQ: 10 Pieces -
0-80A Input 1:3000 Split Core Current Transformer SCT-010US$ 1 - 8MOQ: 10 Pieces
-
CE Energy Monitoring Current Clamp 100a 100 ma Split Core Current TransducerUS$ 2.5 - 39MOQ: 10 Pieces
-
300/5A 400/5A 500/5A 60/5A CE Certificated Electric Split Core Current Transformer ManufacturerUS$ 1 - 20MOQ: 100 Pieces
-
20A/40mV 40A/40mV 200A/40mV Current TransformerUS$ 1 - 8MOQ: 100 Pieces
1) The structure of the self-locking, safe, easy to install, portable
2) Wide inner window, allowing clamping of big cables or bus-bars
3) Wide range of sizes to accommodate all the existing installations
4) Isolated plastic case recognized according to UL94-V0
Applications:
1) Current measurement, monitoring and protection for electrical wiring and equipment.
2) Current and power measurement for electric motors, lighting, air compressor, heating
and ventilation system, air-condition equipment and automation – control system.
3) Current, power and energy monitoring device.
4) Relay protection device.
Split Core Current Transformer /sensors Specification
Model Item |
SCT-T36 |
||||
Current Ratio |
300A/100mA |
400A/40mA |
500A/50mA |
600A/60mA |
100-600A/0.333V |
Primary Current (A) |
300A |
400A |
500A |
600A |
100-600A |
Max. Current (A) |
360A |
480A |
600A |
720A |
720A |
Output |
100mA |
40mA |
50mA |
60mA |
0.333V |
Class |
0.5/1.0 |
||||
Protection Level |
7.5V0-P |
||||
Insulation Category |
CATIII |
||||
Operating Condition |
-20℃ ~ +50℃, ≤85%RH, No condensation, IN-house & Any direction installable |
||||
Storage Condition |
-30℃ ~ +50℃, ≤85%RH, No condensation |
||||
Split Core Current Transformer /sensors Graph
Advantages of Jiangyin Spark Electronic Technology Co.,Ltd
