0-80A Input 1:3000 Split Core Current Transformer SCT-010

0-80A Input 1:3000 Split Core Current Transformer SCT-010 thumbnail-1
0-80A Input 1:3000 Split Core Current Transformer SCT-010 thumbnail-2
0-80A Input 1:3000 Split Core Current Transformer SCT-010 thumbnail-3
0-80A Input 1:3000 Split Core Current Transformer SCT-010 thumbnail-4
0-80A Input 1:3000 Split Core Current Transformer SCT-010 thumbnail-5
0-80A Input 1:3000 Split Core Current Transformer SCT-010 photo-1
0-80A Input 1:3000 Split Core Current Transformer SCT-010 photo-2
0-80A Input 1:3000 Split Core Current Transformer SCT-010 photo-3
0-80A Input 1:3000 Split Core Current Transformer SCT-010 photo-4
0-80A Input 1:3000 Split Core Current Transformer SCT-010 photo-5
US$ 1 - 8 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Jiangyin Spark
Model Number:
XH-SCT
Contact Supplier Request Quote Chat Now
Jiangyin Spark Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Jiangyin Spark
Model Number XH-SCT
Usage Other, Current, Consumption Sensor
Phase Single
Coil Structure Toroidal
Coil Number Other, 3000

Split core current transformer with high quality and CE UL certification



Specifications:
Maximum continuous primary current 5A-120A
Secondary turns: 3000 or as per customer datasheet

current transformer output: voltage or mA
Wire leads: 24# AWG UL1015 24AWG
Frequency: 50/60Hz

Accuracy: 1%

DC resistance: 460ohms @ 20degree Celsius

Applications:
Portable instruments
Sub-metering
Monitor motor load



Our main products:



Split Core Current Transformer, Split Core Current Sensor, Split Core Current Transducer, Clip on Current Sensor, Current Transformer Manufacturer, Split Core Cts Manufacturer, Current Sensor Manufacturer, Clamp on Current Transformer, AC Split Core Current Transformer, Flex Core Current Transformer

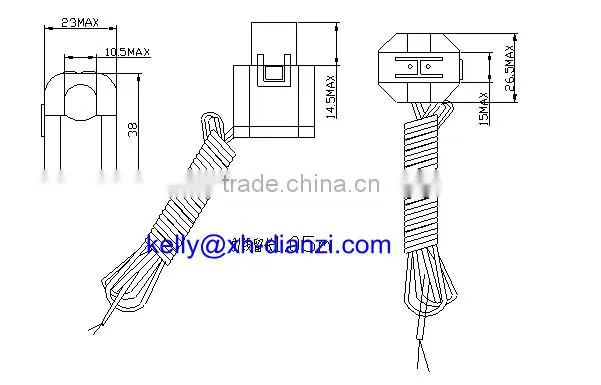

Drawing size



0-80A input 1:3000 split core current transformer SCT-010

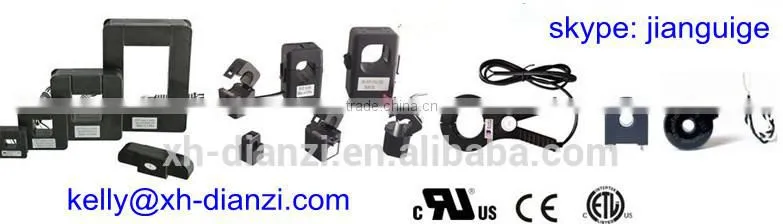

Strong items



0-80A input 1:3000 split core current transformer SCT-010



Certifications



0-80A input 1:3000 split core current transformer SCT-0100-80A input 1:3000 split core current transformer SCT-0100-80A input 1:3000 split core current transformer SCT-010









Package



0-80A input 1:3000 split core current transformer SCT-010



Transportation

0-80A input 1:3000 split core current transformer SCT-010

Contact detail

0-80A input 1:3000 split core current transformer SCT-010
