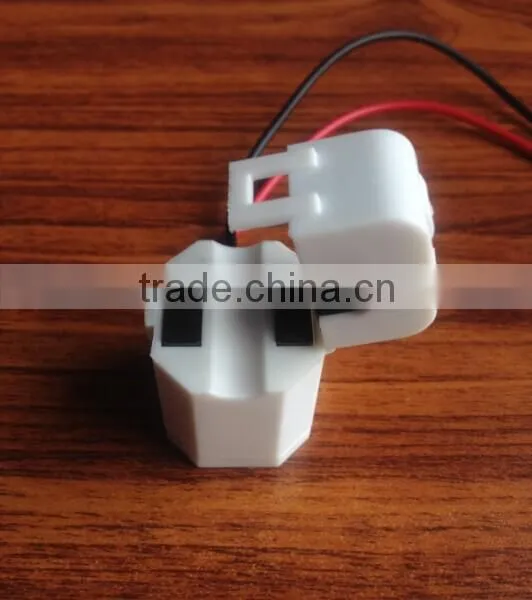

Help CenterCE Energy Monitoring Current Clamp 100a 100 ma Split Core Current Transducer
Related Products
-
300/5A 400/5A 500/5A 60/5A CE Certificated Electric Split Core Current Transformer ManufacturerUS$ 1 - 20MOQ: 100 Pieces -
20A/40mV 40A/40mV 200A/40mV Current TransformerUS$ 1 - 8MOQ: 100 Pieces
-
CE Energy Monitoring Current Clamp 100a 50 ma Split Core Current TransducerUS$ 2.5 - 39MOQ: 10 Pieces
-
CE Current Clamp 100a 50 ma Split Core ct TransformerUS$ 2.5 - 39MOQ: 10 Pieces
-
CE 30A/333mV Energy Monitoring ac Clamp CTsUS$ 2.5 - 39MOQ: 10 Pieces
Feartures Of CE energy monitoring current clamp 100A 100 ma split core current transducer
Small size, low cost
High secondary turns
Secure locking hinge
Features:
Maximum continuous primary current 5A to 5000AAC
Current Ratio: 3000: 1
Output: 0.333V, mV or mA.
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized
Drawing Size Of CE energy monitoring current clamp 100a 100ma split core current transducer
Model |
I.D. |
Ratio |
Rated Amps |
Accuracy |
XH-SCT-T06 |
6mm |
1000:1 |
1, 5,10, 15, 20, |
0.5 , 1.0 |
XH-SCT-T10 |
10mm |
3000:1 |
5, 15, 30, 50, 75,80 |
0.5 , 1.0 |
XH-SCT-T16 |
16mm |
3000:1 |
50, 70, 100, 120 |
0.5 , 1.0 |
XH-SCT-T24 |
24mm |
3000:1 |
100, 150, 200, 300 |
0.5 , 1.0 |
XH-SCT-T36 |
36mm |
3000:1 |
300, 400, 500, 600 |
0.5 , 1.0 |
Pls contact me for much more information by Skype
My Skype:paul.duke188

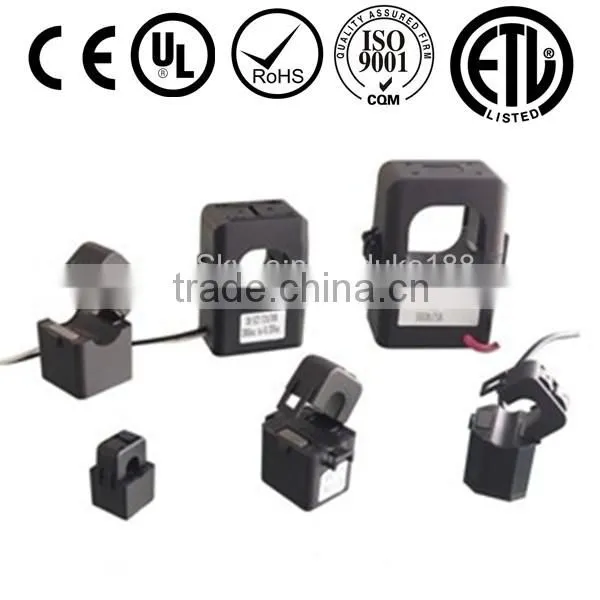

Our products
Strong items

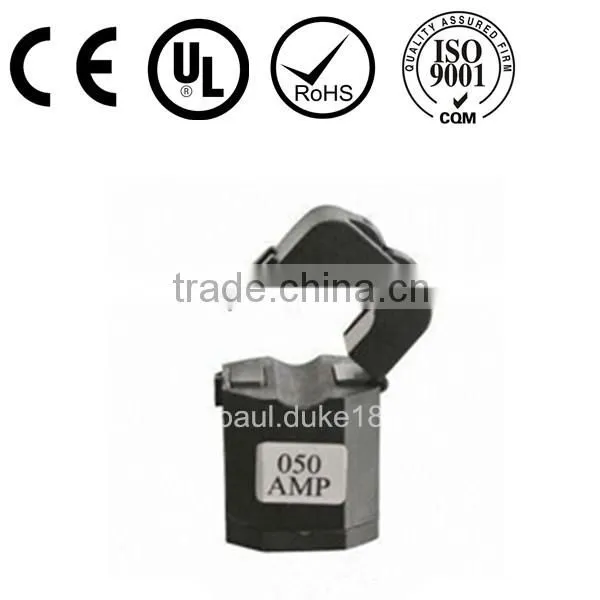

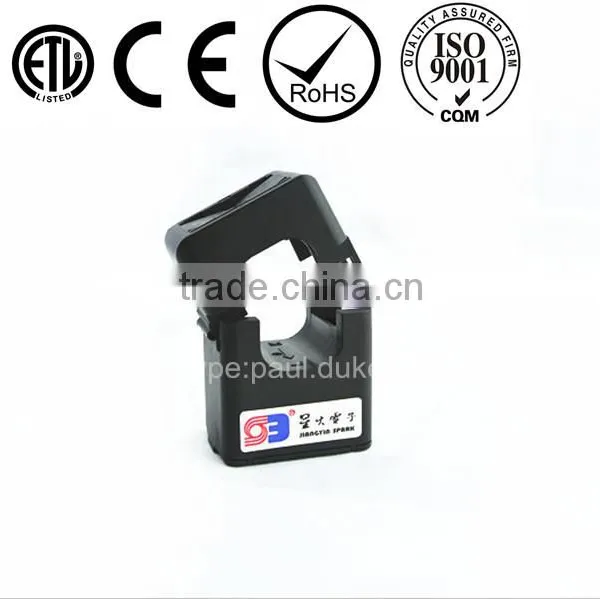

Certifications
Quality Control
Package Of CE energy monitoring current clamp 100a 100 ma split core current transducer
Transportation
Contact detail
