SCT-019 0.75" Window Size Single Phase Mini Split Core Current Transformer 333mV Secondary

Split core current transducer with high quality and CE UL certification

Split Core Current transducer SCT 333mV Secondary Output

The JIANGYIN SPARK series of split core transducer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary

Features

Low cost.
Split core design;safer,easier installation,portable.

Specifications

Rated Current 5A to 3000A loads.
Rated output: 0.333Vac
Accuracy:±1% from 5% to 120% of rated current
Phase Angle: less than 2 degrees at 50% of rated current
Insulation Voltage:600Vac
Maximum Primary Voltage:5000Vac(Insulated Conductor)
Operating Temperature:-15°Cto 60°C.
Frequency Range:50-400Hz
Leads:4Foot(105cm),UL 1015,Twisted Pair,0.34 mm2(22AWG)
UL&CE,ETL recognized. RoHS Compliant
Output and leads can be customized

Application

Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.

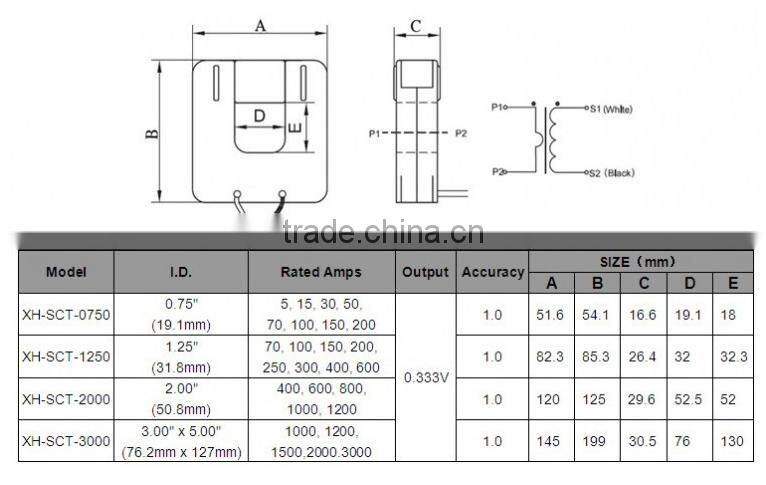

Drawing size
