100:5A 150:5A 200:5A 250:5A current ratio Split core current transformer ce ul
- 2000 Piece / Pieces per Month
- shanghai
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Jiangyin Spark | Model Number: | t10 t16 t24 t36 |
Product Description
Specifications

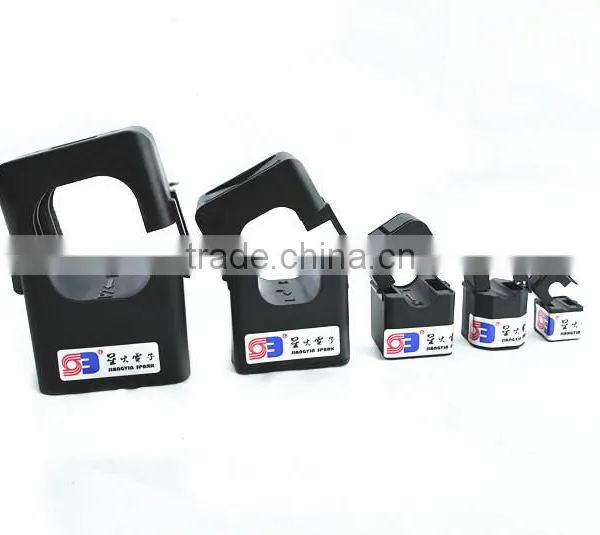

Split core current transformers
1.High Accuracy 0.5-1.0 Class
2.UL94-V0 housing case
3.CE UL ETL ISO9001
4.RoHS compliance
Split core current transformers with 5A or 1A output
SCT-T24 with 24mm hole diameter measures AC current from 100 to 300 Amps
Description:
SCT-T24 series split-core current senses AC current from 100 to 300 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.
Specifications:
Maximum continuous primary current 300 A AC
Current Ratio: as per custoemr need
Output: 5A/1A at rated current
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15Cto 60C.
CE recognized, and RoHS compliant
Output and leads can be customized
Applications:
Sub-Metering Accurate Measurement
Data Loggers to analyze Building & Machinery Performance
Digital Fault Recorders
Smart Grid Application Features
Load Center
Three Phase Balance Control
In-Factory Display In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC
Our main productis:
Split Core Current Transformer, Split Core Current Sensor, Split Core Current Transducer, Clip on Current Sensor, Current Transformer Manufacturer, Split Core Cts Manufacturer, Current Sensor Manufacturer, Clamp on Current Transformer, AC Split Core Current Transformer, Flex Core Current Transformer
SCT-T24
Datasheet:
Current ratio | Input (A) | Output (A) | Max current(A) | Ratio and phase error (5%-120%) | |
F(I)% | δ(I)° | ||||
100A/5A | 100 | 5 | 170 | ≤1% | ≤1° |
250A/5A | 250 | 5 | 420 | ≤0.5% | ≤0.7° |
300A/5A | 300 | 5 | 540 | ≤0.5% | ≤0.2° |
400A/5A | 400 | 5 | 720 | ≤0.5% | ≤0.2° |
600A/5A | 600 | 5 | 960 | ≤0.5% | ≤0.1° |
pls contact us for much more information
If you are interested in flexible rogowski coil, pls click.
