China Cable Manufacturer Changguang armored fiber optic cable ftth FRP g652d Self Supporting Bow Type Drop Cable

Name: China Cable Manufacturer Changguang armored fiber optic cable ftth FRP g652d Self Supporting Bow Type Drop Cable
Brand: ChangGuang
Availability: InStock

FOB Price

USD $0.01 - $0.15 / Meter

3000 Meters(Min.Order)

Supply Ability 5000 Kilometer / Kilometers per Month
Port Shanghai/Lianyungang
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	ChangGuang
Model Number	GJYXFCH	Type	Cat 1
Number of Conductors	1

Product Description

China Cable Manufacturer Changguang armored fiber optic cable ftth FRP g652d Self Supporting Bow Type Drop Cable

Product Description

Product name	China Cable Manufacturer Changguang armored fiber optic cable ftth FRP g652d Self Supporting Bow Type Drop Cable

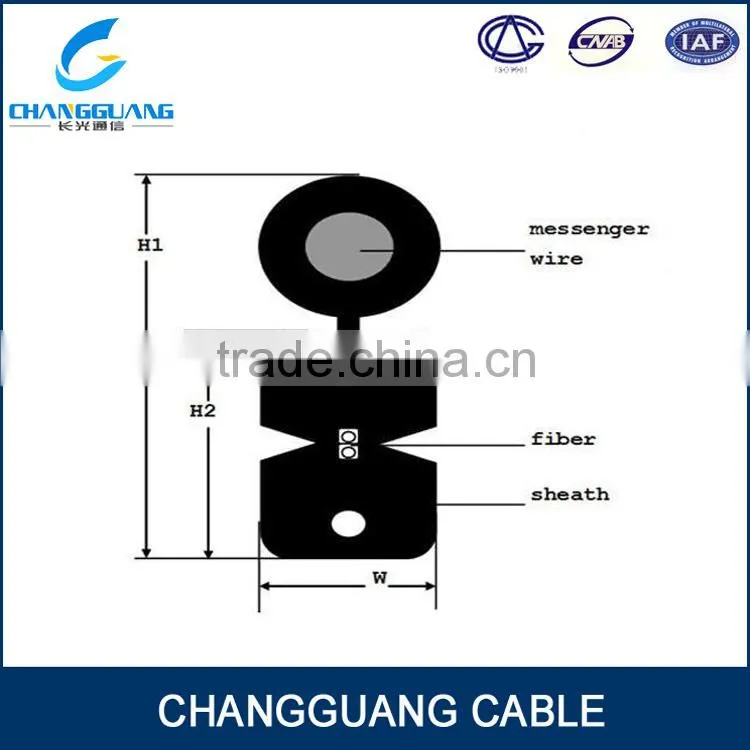

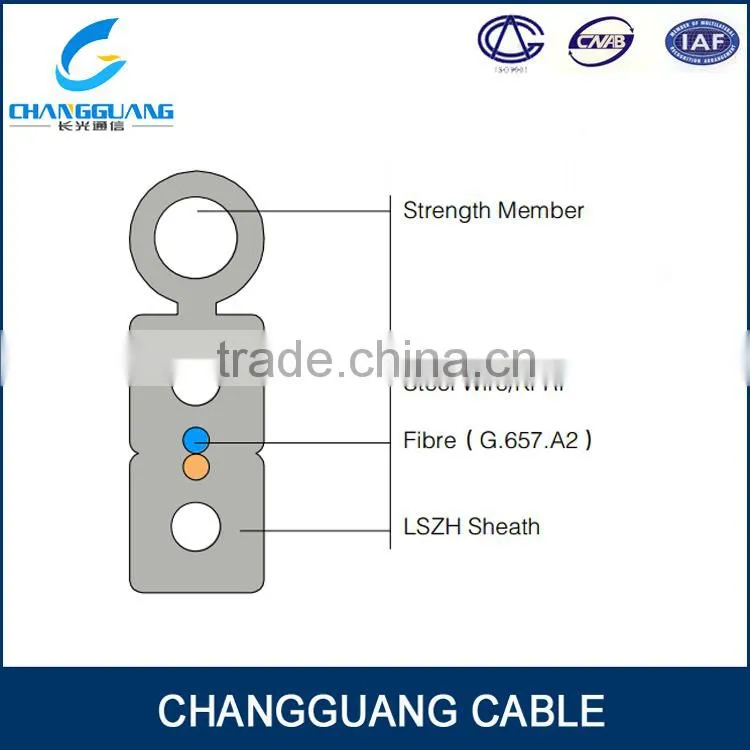

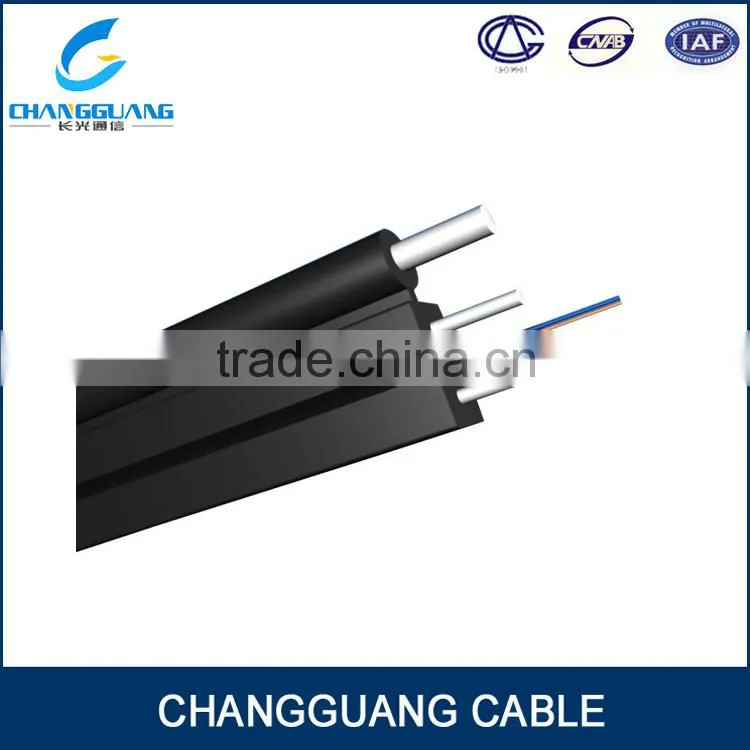

Introduction	The optical fiber unit is positioned in the centre,Two parallel Fiber Reinforced Plastics(FRP) are placed at the two sides,A steel wire as the additional strength member is also applied. Then ,the cable is completed with a black or color LSZH sheath.
Characteristics	Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
	Two parallel FRP strength members ensure good performance of crushi resistance to protect the fiber
	Single steel wire as the additional strength member ensures good performance of tensile strengh
	Simplex structure,light weight and high practicability
	Novel flute desin,easily strip and splice,simplify the installation and maintenance
	Low smoke,zero halogen and flame retardant sheath
	Indoor riser level and plenum level cable distribution
	Interconnect between instruments, communication equipments
Standards	Comply with standard YD/T 1997-2009,ICEA-596,GR-409,IEC 60794,ETC.

Technical Parameter:

Cable Type	Cable Diameter (mm)	Weight (kg/km)	Tensile Strength (N)		Crush Resistance(N/100mm)		Minimum Bending Radius
Cable Type	Cable Diameter (mm)	Weight (kg/km)	Short-term	Long-term	Short-term	Long-term	Static	Dynamic
GJYXFCH-1	2.0*5.0	21	60	30	1000	300	15	30
GJYXFCH-2	2.0*5.0	21	60	30	1000	300	15	30
GJYXFCH-4	2.0*5.6	21.5	60	30	1000	300	15	30
GJYXCH-1	2.0*5.0	21	60	30	1000	300	15	30
GJYXCH-2	2.0*5.0	21	60	30	1000	300	15	30
GJYXCH-4	2.0*5.6	21.5	60	30	1000	300	15	30

Note:

1.Cables can be supplied with a range of single mode or multimode fibers.

2.The dimensions and raw meterials can be designed according to the demand of the customers.

3.Standard Reel Length: 2000m/reel ; other lengths available on request.

Application: China Cable Manufacturer Changguang armored fiber optic cable ftth FRP g652d Self Supporting Bow Type Drop Cable

1.All types of fiber cables with different structures

2.High performance optical network operating

3.High speed optical routes in buildings(FTTX)

Packaging & Shipping

China Cable Manufacturer Changguang armored fiber optic cable ftth FRP g652d Self Supporting Bow Type Drop Cable

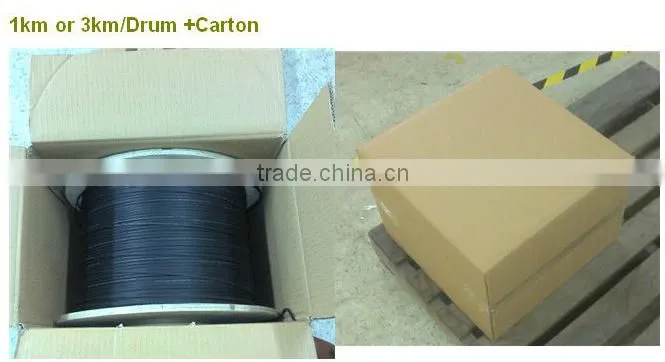

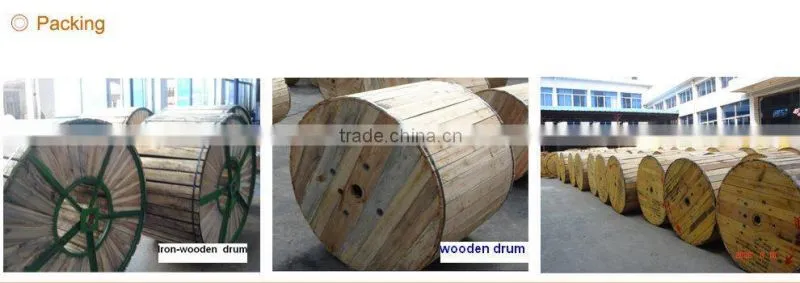

Packaging	Wooden drum, 2000/drum or as you required
Shipping methods.	By sea or by air
Sheath mark applied at 1-meter intervals	a. Supplier: Changguang or as customer required
	b. Standard Code(Product Type, Fiber Type, Fiber Count)
	c. Year of manufacture: xxx
	d. Length marking in meters
