OTDR Launch OM3 Cable
OTDR Launch cable is designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in different configurations and fiber lengths.
Complied with or exceeds Standard
ITU-T G652.D, G656.A
ITU-T G651.1 OM1 OM2 OM3 OM4
IEC60793-2-10 type A1a.1/A1b
OM1/OM2,
type A1a.2 OM3, type A1a.3 OM4
Telcordia (formerly Bellcore) GR-326-CORE
RoHS Compliant Directive 2011/65/EU
Applications
Use as OTDR launch/receive cable.
Test link loss with an OTDR.
Measure insertion loss and reflectance of
near/far end connector.
Pulse suppressor for the first reflection at
the beginning of a fiber.
Features
1. Standard boxes along with custom configurations for OTDR applications.
2.Compact and rugged packaging.
3.Portable for field use.
4.Prevents fiber damage and ensures accurate results.
5.Pulse suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration.
6.Compound latch for positive seal and easy opening with locking feature.
7.Water and dust prove allowing the unit to be taken into almost any environment.

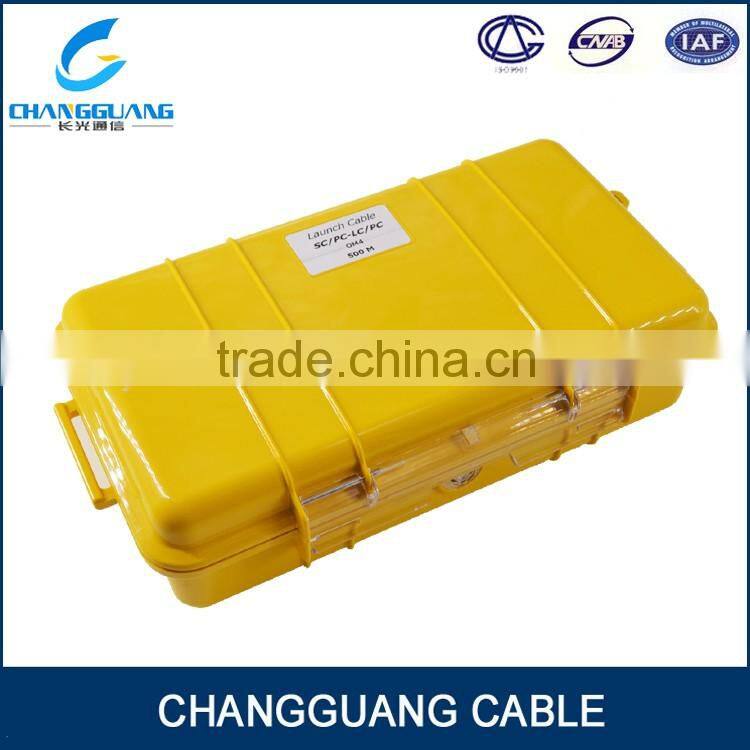

8.Case can house up to 2,000 meters of fiber.
9.Auto Purge Valve for changes in altitude and temperature.
OTDR Launch OM3 Cable
Specifications
Mechanical & Environmental Characteristics | |
Dimension | 23.8CMx 14.1CM x 6.7CM |
Material | SR Polypropylene |
Color | Yellow |
Weight | 0.75kg without fiber |
Packaging | Rugged, hard-shell transit case |
Storage Temperature | -40℃ to +85℃ |
Operating Temperature | -40℃to +85℃ |
Humidity | 0 to 95%, non-condensing |
Fiber & Connector Characteristics | |
Fiber Types | G652D, G657A, OM1, OM2, OM3, OM4 |
Fiber Length (m) | 100 up to 2000 (max) |
Lead Length | 2 Meters, 3mm buffer |
Typical Loss | <0.5dB @ 1310 for 1000 meters |
Connector Type | SC/LC/FC/ST |
Polish | PC, UPC, APC |
Return Loss* | UPC>=50dB, APC>=60dB, PC>=35dB |
Repeatability (dB) | <=0.2 (1000 times) |
Exchangeability (dB) | <=0.2 |
Ordering information:
OTDR-A-B-C-D | |
A for Input connector; | B for Output connector; |
C for Fiber Mode; | D for Length; |
For Example: OTDR-SC-FCA-SM-1KM; 1KM SM, SC on I/P lead, FC/APC on O/P lead | |
Company Scale | Covering an area of 170,000 square meter,with product lines for fiber optic cable and cable accessories , total more than 150 professional workers |
Brands | CHANGGUANG |
Production capabilities | 5000KM per week |
Product series | Indoor and outdoor fiber optic cable, ADSS fiber cable and OPGW cable, fiber optic patch cord, pigtail and other cable accessories |
Quality control | We have strict test on each production line |
Trade shows attended | 2 times canton fair and one oversea fair at least every year |
Main export markets | Central/South America, Mid East/Africa, Eastern Europe, North America, Asia, Western Europe, Australasia ,etc |
FAQ
Payment terms | T/T,L/C,ESCROW ,D/A,D/P, Western Union, MoneyGram, Paypal |
MOQ. | 1km/order |
Delivery Time | Within 3 to 5 working days, but most depends on your quantity |
Loading Port | Shanghai, China |
OEM | Yes |
Place of Origin | Shanghai, China |
FAQ
Quote Request Information | Fiber Count: 2 to 288 Fibers |
Fiber type: Single mode: G652D, G655,G657. Multimode: 50/125,62.5/125. OM3 | |
Order Quantity |
