Swimming pool heat pump water heater
- 1000 Set / Sets per Month
- Foshan
- T/T
- Customized 50liter stainless steel household square heat heat pump thermal storage buffer water tank
- Gas Shortage Remedies 50 liter luftwarmepumpen heat pump hot water buffer tank no coil for house floor heating
- Customized Commercial Domestic Heat Pump Water Heater 100L 200L 300L Hot Water Tank Storage Heat Pump Water Tank For House
- Economical Energy Conservation Domestic Hot Water Combined Tank For Heat Pump System Water Heater 300l Tank 316 Stainless Steel
- Economical Energy Conservation Domestic Hot Water Combined Tank For Heat Pump System Water Heater 300l Tank 316 Stainless Steel
- Air source heat pump water heater swimming pool heat pump
Product Details
Type: | Water Source Heat Pump | Installation: | Freestanding | Storage / Tankless: | Instant / Tankless |
Housing Material: | Other, galvanized steel | Use: | Swimming Pool Heater | Certification: | CB, CE |
Place of Origin: | Guangdong, China | Brand Name: | Aseair | Model Number: | ASP-45HA |
Product Description
Specifications
1. air source heat pump2. easy to install and use
3. greens environmental protection
4. all-weather use
5. low noise

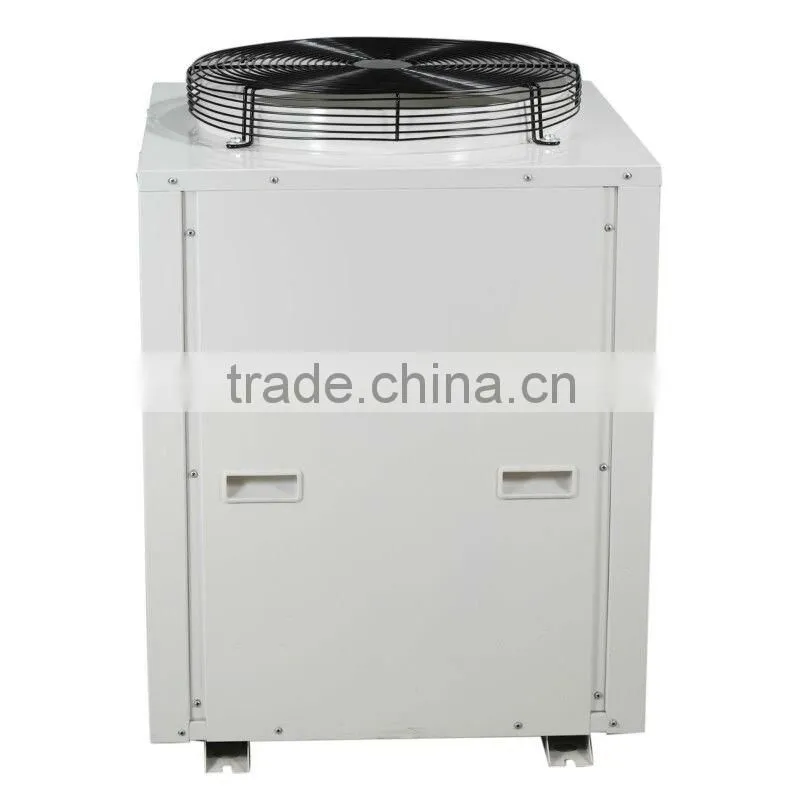

Swimming pool heat pump water heater
Swimming pool heat pump widely used in hotel, villa and school which large water require.
As China famous brand Aseair heat pump water heaters have been sold to Europe and Asia with large mounts in these years.
Geothermal heat pump make people warm according floor with no hot wind, therefore will not take away the moisture of people.
Parameters
TECHNICAL DATA | ASP-45HA | ASP-65HA | ASP-85HA | ASP-100HA | ASP-120HA | ASP-180HA/3 | ASP-230HA/3 | ASP-300HA/3 | ASP-450HA/3 | ASP-500HA/3 | ASP-600HA/3 | ASP-750HA/3 | ASP-1000HA/3 | |
Heating Capacity | KW | 4.5 | 6.5 | 8.5 | 10 | 12 | 18 | 23 | 30 | 45 | 50 | 60 | 75 | 100 |
Power Input(H/C) | KW | 0.9 | 1.28 | 1.69 | 2.02 | 2.44 | 3.65 | 4.47 | 6.07 | 9.18 | 10.2 | 11.98 | 14.79 | 20.3 |
COP | 5.02 | 5.08 | 5.02 | 4.95 | 4.92 | 4.93 | 5.15 | 4.94 | 4.90 | 4.92 | 5.04 | 5.07 | 4.93 | |
Cooling capacity | KW | 3.2 | 4.5 | 6.2 | 8.3 | 9 | 13 | 19.8 | 27 | 39.5 | 44.2 | 51.6 | 67.2 | 89.5 |
Power Input(H/C) | KW | 0.88 | 1.23 | 1.73 | 2.31 | 2.6 | 3.3 | 4.68 | 5.99 | 9.56 | 10.7 | 12.34 | 16.19 | 21.5 |
EER | 3.62 | 3.65 | 3.59 | 3.59 | 3.46 | 3.94 | 4.23 | 4.01 | 4.13 | 4.13 | 4.18 | 4.15 | 4.16 | |
Power Supply | V/Ph/Hz | 220~240/1/50 | 380-418/3/50 | |||||||||||
Water temperature range | °C | 15~45 | ||||||||||||
Refrigerant | R410a | |||||||||||||
Air to water heat exchanger | Titanium Heat Exchanger | |||||||||||||
Water flow rate | m3/h | 1.6 | 2.3 | 3.0 | 3.6 | 4.2 | 7.0 | 9.8 | 12.8 | 19.2 | 20.1 | 25.6 | 32.0 | 42.6 |
Water connection | mm(inch) | 50.8(2") | 50.8(2") | 50.8(2") | 50.8(2") | 50.8(2") | 50.8(2") | |||||||
Dimensions (Net) | mm | 935x360x550 | 1010x370x614 | 830x720x1060 | 900x820x970 | 1210x900x1140 | ||||||||
Dimensions (Packing) | mm | 1005x380x653 | 1085x390x722 | 850x740x1190 | 930x840x1130 | 1300x1000x1260 | ||||||||
Net weight/Gross weight | kg | 52/60 | 56/65 | 70/78 | 86/95 | 92/98 | 119/135 | 156/170 | 165/175 | 178/195 | 280/300 | 295/315 | 330/340 | 350/365 |
Size of swimming pool | m3 | <=14 | <=20 | <=26 | <=30 | <=36 | <=54 | <=70 | <=90 | <=135 | <=140 | <=170 | <=210 | <=300 |
Noise level | dB(A) | 50 | 52 | 52 | 54 | 54 |
Advantage
1.Energy-efficient: Use international faomuse compressor(Mainly use COPELAND), environmental protection refrigerant(R407C, R410A), efficient heating exchanger, special heating system, directy heated and cyclis heating, make significant energy savings. COP up to 4.0 for house heading.
2. Easy to use: Only requires connections of water pipes and electricity power suppy to work with no special care with be taken,
3. Green environmential protection: High temperature hot water can be used as a heat pump drying equipment items baking, eliminate waste gas and waste pollution generated by burning.
4. Security and stability: Automastic working, with high and low pressure protection, water flux protection, overpower protection, temperature control protection,power protection and so on.
5. Reliable and durable: Utilize international brand electrcial components of heat pump.
6. Beautiful and durable appearance design: Compact structure, beautiful appearance, convenient installation. Our air to water heat pump face to world.
Quality control
-Aim to provide best quality products;
-Differ from other heat pump manufacturers;
-Strict quality assurance system:
> 4 times leakage check
> 100% electrical safety inspection
> 100% performance check
- Continous upgrade on inspection skills

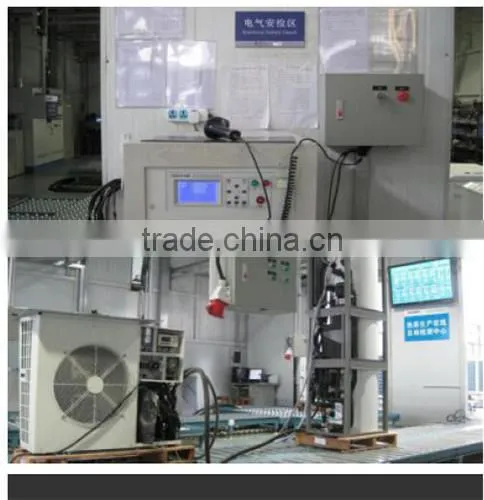

heat pum product testing before packing

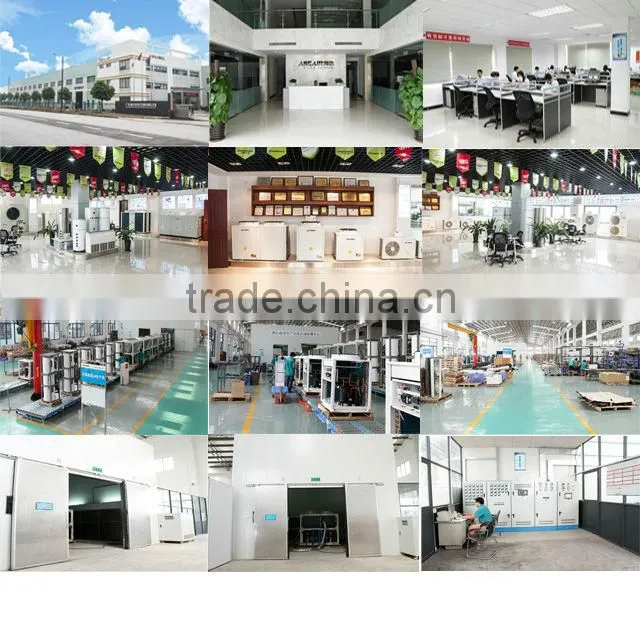

Guangdong Aseair heat pump Co., Ltd
This company fouces exclusively on manufacturing heat pumps with history of 13 years. Now Aseair heat pump CO,. Ltd occuping production facilities over 2,5000 sqm where more than 5,000 units of heat pump were prodcued each year and Aseair had been the leading company in industry of heat pump in China.
Sice 2000, tje Aseair heat pumps had been exproted to countires in Oceania, Asia, Europe, South America and South Africa. The main product are Air Source Heat Pump Water Heater, Air to water Heat Pump for House Heating/Colding/Hot water and commercial Central Air Conditioning System.
Our company has strict management of prodcution and quality control, from every beginning, we had obtained the certification ISO9001, OHSA 18001, China CCC certificates, Production Licensing of Industiral Products of China and Audited Supplier Certifications issued by SGS and TUV, as a qualified partner of each of our customers worldwide.
We pursure the continuous innovation of heat pump technology by establishing strategic cooperation with global pathers from U.S, Denmark, Sweden, German and Japan. Certified b China National Authoriy, Our Performance Testing Lanpratory is capable of performing test on different testing conditions for heat pumps of 2kw to 300kw heating/colding capacity according to EN14511:2013.
Comebines with innovation technology, reliable quality and parther based customer service, we Aseair desire to create green and comfortable lifestyle for every one on the planet.
China heat pump engineering case1
.
China heat pump engineering case2

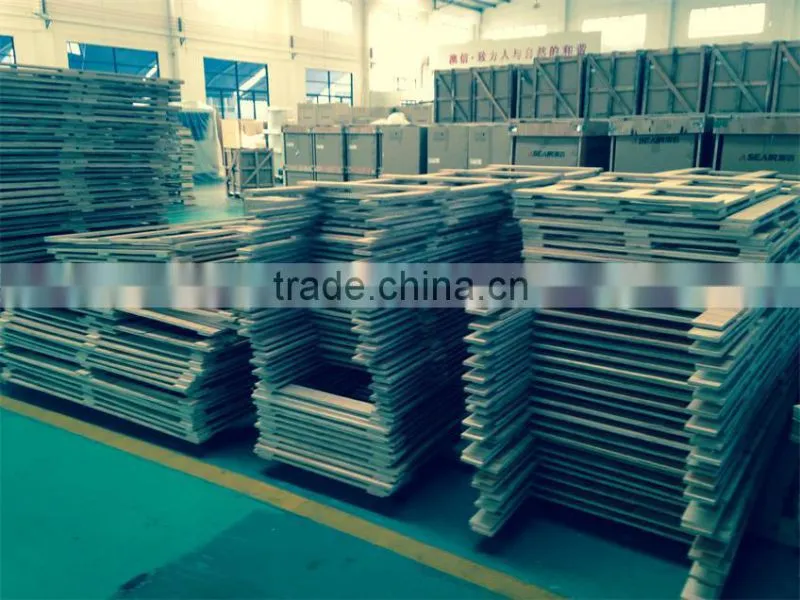

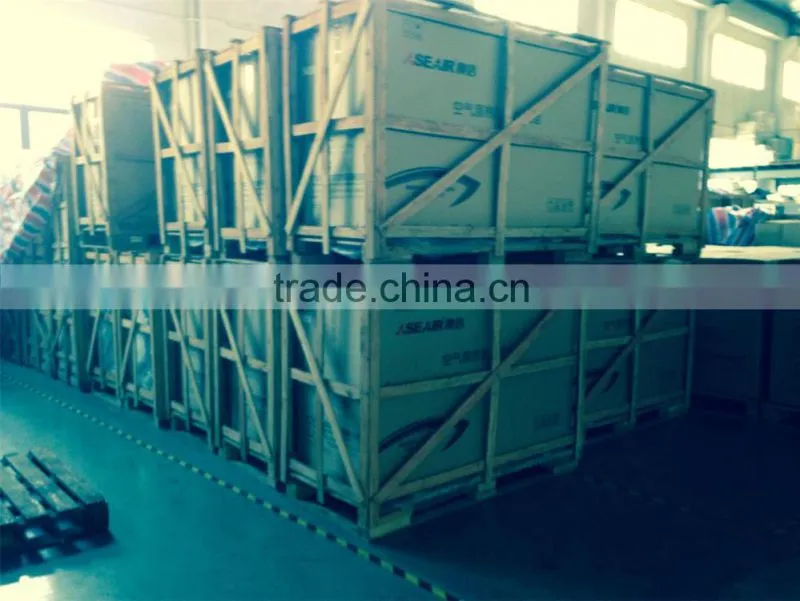

1.Safe and reliable export package (exterior plywood case & interior plastic films)
2.Bottom fixed with screws to make sure delivery stablility.
3.T/T Payment.
