Wet shotcrete machine / dry shotcrete machine price
Brief introduction of wet shotcrete machine / dry shotcrete machine
Shot Crete machines are divided into two major categories, that is explosion-proof type and non-explosion-proof type, both are based on straight-through-type rotor blanking under the rotor material, can take full advantage of the role of air force jet to ensure the smooth discharge.
The rotor chamber and the discharge elbow materials are made of flexible rubber abrasion. When working, under the action of the pressure can be rushed to the self-cleaning effect, reducing adhesive material and congestion, greatly reduced the maintenance workload of the machine
The machines set the advantages of wet and dry spray machine at home and abroad in one, it is easy to operate, sprays evenly, and has the advantage of a low dust, low rebound.
It optimized the working environment, and improved the quality of spray layer.
Technical Parameters of wet shotcrete machine / dry shotcrete machine
Model |
Capacity (m3/h) |
Air consumption (M3/h) |
Material ratio |
Motor power (kw) |
Max aggregate (size) |
Conveying pipe inner diameter (mm) |
Weight (kg) |
YZPJ-5 |
5 |
7-8 |
1:3-5 |
5.5 |
20mm |
51 |
600 |
YZPJ-6 |
6-7 |
10-15 |
1:3-5 |
7.5 |
20mm |
51-64 |
800 |
YZPJ-7 |
7-8 |
10-15 |
1:3-5 |
7.5 |
20mm |
51-64 |
800 |
YZPJ-9 |
8-9 |
10-12 |
1:4-5 |
5.5 |
15mm |
51 |
1350 |
|
Conveying distance (m) |
200m-40m⊥ |
||||||
wet shotcrete machine / dry shotcrete machine spare parts list
Name of parts |
Using area m³or time |
Nozzle |
60-70 |
Rotor |
half or one year |
Sealing plate |
200 |
Rotor disk |
1000 |
Rubber elbow |
1000 |
Cone casing pipe |
1000 |
Rubber chamber |
100 |
Pipes 15 meters |

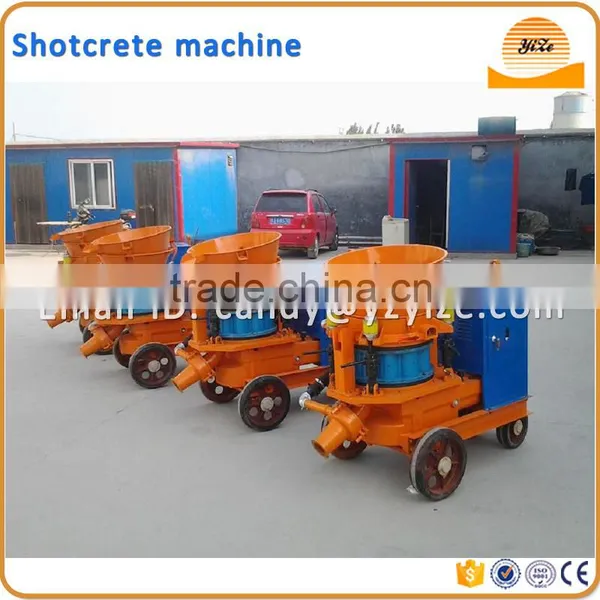

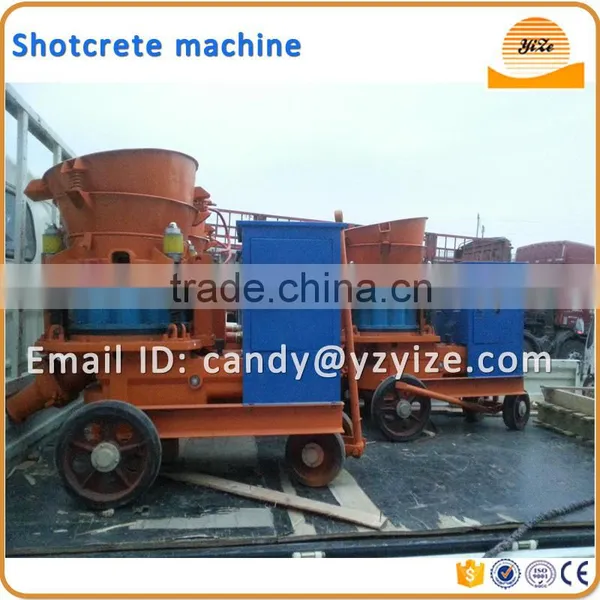

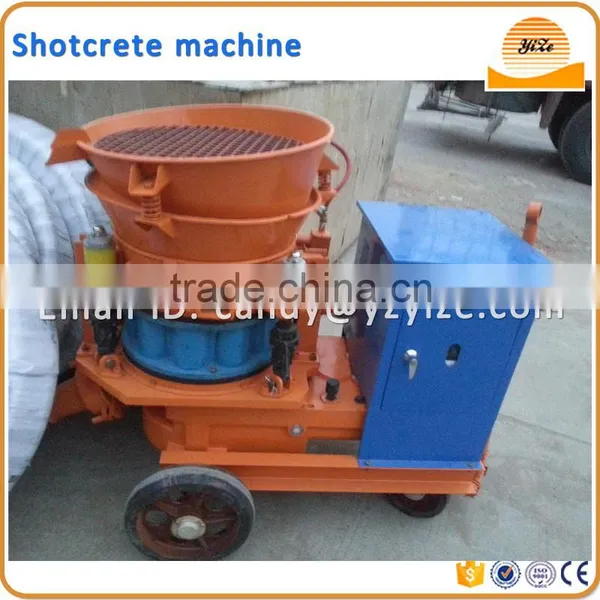

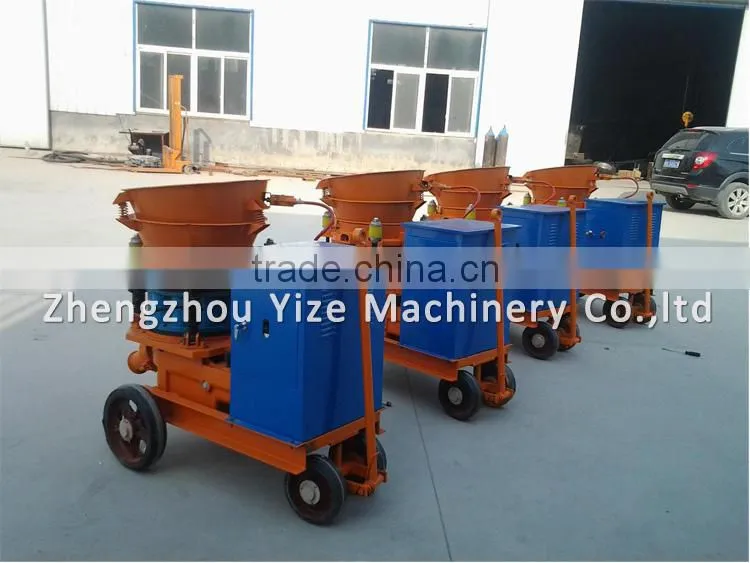

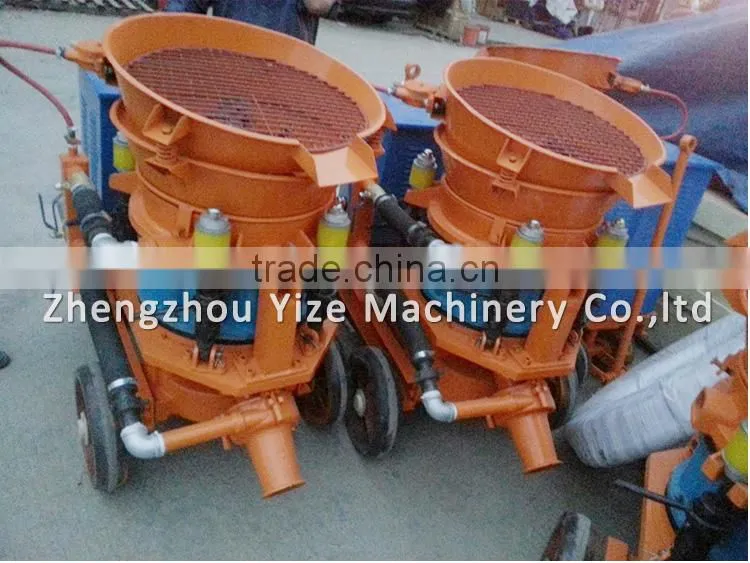

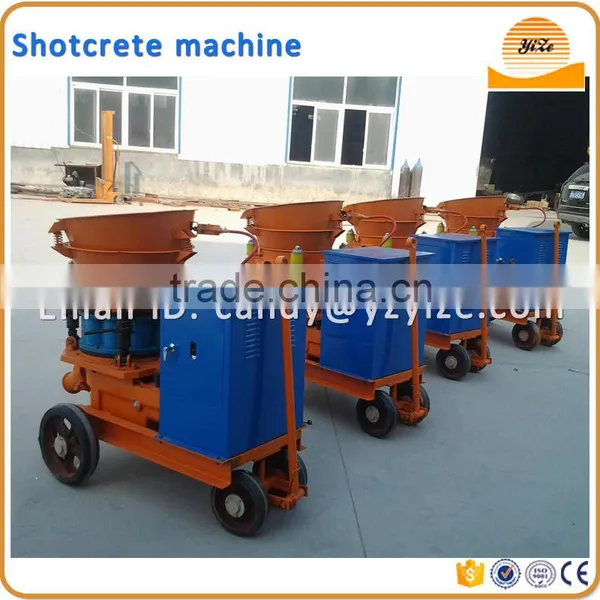

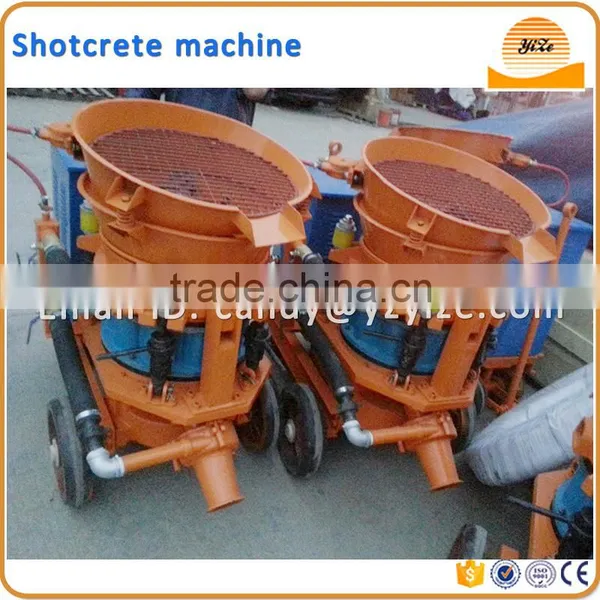

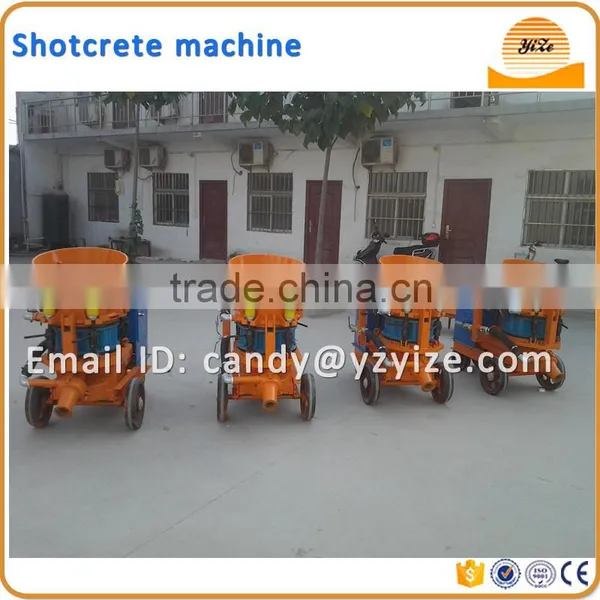

Details pictures of wet shotcrete machine / dry shotcrete machine
Service before sale
1, 24 hours online .Your inquiry will be quick reply by email .
Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype ,Viber ,QQ , TradeManager )
2,Professionally and patiently introduction,details pictures and working video to show machine
Service on sale :
1,Test every machine and inspect the machine seriously .
2,Send the machine picture which you order , then packing it with standard export wooden box after you confirm the machine is ok .
3,Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request . We will tell you the tracking number after delivery.
Service after sale
1, Free insurance for goods
2, 24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker
to your factory.
Questions/Answer |
1,What is the voltage/phase for this machine ? |
|
220V 50Hz/single phase ,380V 50Hz/three phase , 110V 60Hz/single phase also can made as the clients’ need |
2,What is the Mode of transportation ? |
LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air |
3,How long can we get the goods? |
we usually delivery in 3-5 working days, we will inform you shipping time based on your seaport. |
4,How long is the guarantee? |
we promise guarantee as one year for non-human damage factor. |
5,How should I do if meet some trouble while using? |
|
we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory. |
6,What about Payment term? |
|
T/T(Telegraphic Transfer ) --30% as prepayment by T/T, after seen the copy of the B/L sent by fax, the balance of 70% should be effected . Western Union ,L/C ,Trade Assurance,Etc. |
7,What’s your MOQ |
1 set |
8, How can i contact with you ? |
|
You can send inquiry to me . Aslo can contact with me by Cellphone/Wechat / Whatsapp /Viber:0086-15890126501 Skype :candy-yize,QQ : 2033530360 |
Zhengzhou Yize Machinery CO.,Ltd’s factory was built in 2008, its exporting company was assessed gold supplier in 2015 by alibaba. It is specialized in the production of buliding machinery,
We will supply 100% QC inspection before shipment and 100% guaranteed after sales service. Top quality machinery is waiting for your choose.
