Dry-mix concrete aliva shotcrete machine/ Gunite machine for Building Material
Dry-mix concrete aliva shotcrete machine/ Gunite machine for Building Material introduction:
Shot Crete machines are divided into two major categories, that is explosion-proof type and non-explosion-proof type, both are based on straight-through-type rotor blanking under the rotor material, can take full advantage of the role of air force jet to ensure the smooth discharge. The rotor chamber and the discharge elbow materials are made of flexible rubber abrasion. When working, under the action of the pressure can be rushed to the self-cleaning effect, reducing adhesive material and congestion, greatly reduced the maintenance workload of the machine
The machines set the advantages of wet and dry spray machine at home and abroad in one, it is easy to operate, sprays evenly, and has the advantage of a low dust, low rebound.
It optimized the working environment, and improved the quality of spray layer.
Dry-mix concrete aliva shotcrete machine/ Gunite machine for Building Material technical parameters:
model |
Capacity (m3/h) |
Air consumption (M3/h( |
Conveying distance (m) |
Material ratio |
Motor power (kw) |
Max aggregate (size) |
Conveying pipe inner diameter (mm) |
Weight (kg) |
YZPJ-5 |
5 |
7-8 |
200m- 40m⊥ |
1:3-5 |
5.5 |
20mm |
51 |
600 |
YZPJ-6 |
6-7 |
10-15 |
200m- 40m⊥ |
1:3-5 |
7.5 |
20mm |
51-64 |
800 |
YZPJ-7 |
7-8 |
10-15 |
200m- 40m⊥ |
1:3-5 |
7.5 |
20mm |
51-64 |
800 |
YZPJ-9 |
8-9 |
10-12 |
200m- 40m⊥ |
1:4-5 |
5.5 |
15mm |
51 |
1350 |
Dry-mix concrete aliva shotcrete machine/ Gunite machine for Building Material spare parts list:
Name of parts |
Using area m³or time |
Nozzle |
60-70 |
Rotor |
half or one year |
Sealing plate |
200 |
Rotor disk |
1000 |
Rubber elbow |
1000 |
Cone casing pipe |
1000 |
Rubber chamber |
100 |
Pipes 15 meters |
Pictures of Dry-mix concrete aliva shotcrete machine/ Gunite machine for Building Material:

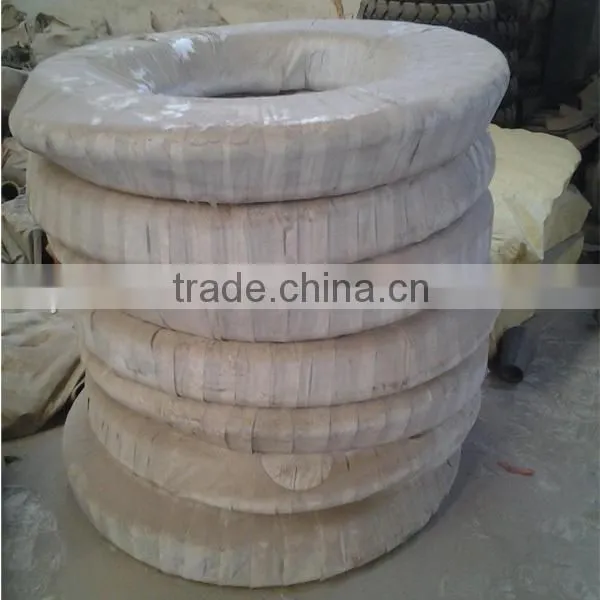

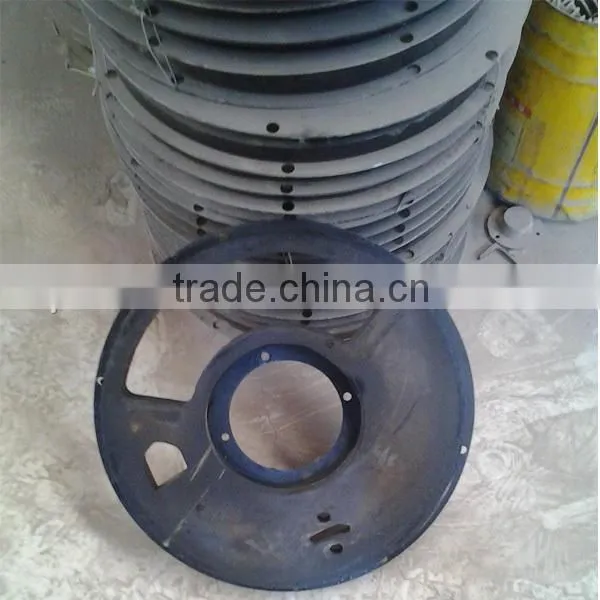

Sparts of Dry-mix concrete aliva shotcrete machine/ Gunite machine for Building Material:
