Easy Operation Embossing Peforating Laminating High Speed Automatic Toilet Tissue Paper Production Machine
- Shenzhen or customized
- T/T L/C D/P D/A Money Gram
You May Like
-
Easy Operation Embossing Peforating Laminating High Speed Automatic Cost of Tissue Paper Machine
-
Easy Operation Embossing Peforating Laminating High Speed Automatic Machine for Making Rolling Paper
-
Peforating Laminating High Speed Automatic Machines to Make Paper Roll
-
Easy Operation Embossing Peforating Laminating High Speed Automatic Toilet Tissue Paper Paper Roll Machinery
-
High Speed Automatic Facial Tissue Cutting Machine
-
Automatic Band Saw
Product Details
| Condition | New | Type | Slitting Rewinder | |
| Computerized | Yes | Place of Origin | Guangdong, China | |
| Brand Name | ACE | Model Number | TRM | |
| Voltage | 380V 220V 440V others | Power(W) | 7.5kw depends | |
| Dimension(L*W*H) | 7x3x2m depends | Weight | 4000kg depends | |
| Certification | Subject to Toilet Tissue Paper Production Machine | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Easy Operation Embossing Peforating Laminating High Speed Automatic Toilet Tissue Paper Production Machine.
Technical parameters of our Easy Operation Embossing Peforating Laminating High Speed Automatic Toilet Tissue Paper Production Machine.
Model | TRM |
Parent roll size | 1100mm diameter x 1200-3500mm width or customized. |
Finished roll size | Diameter adjustable, maximum 150mm Width adjustable. |
Speed | 0-250 m/min or 0-200 m/min customized |
Core diameter | 76mm |
Control | PLC Control Human-Machine Interface (Touch screen) Inverter speed control |
Embosser | steel to rubber (1 set) controlled by level-type cylinders, not traditional screws. Embossing tension is adjustable(micro adjustment.) Embossing pattern can be any company LOGO, brand name, flower etc, provided by client, or recommended by us. Steel to steel and steel to paper are optional. |
Features | Pneumatic loading jumbo rolls. Automatic core feeding unit Automatic counting unit Automatic perforating unit(perforating distance is adjustable) Outer diameter of finished rolls is adjustable by cylinder Automatic pushing out finished logs by cylinder Automatic tail cutter and sealer tail (Glue) Emergency stop when paper breaks |
Perforation unit | Perforating distance is adjustable. Controlled by cylinders, not screw |
Machine size | 5000*2200*1900 mm |
Weight | 3800 KG |
Photos and videos available. Please contact us. | |

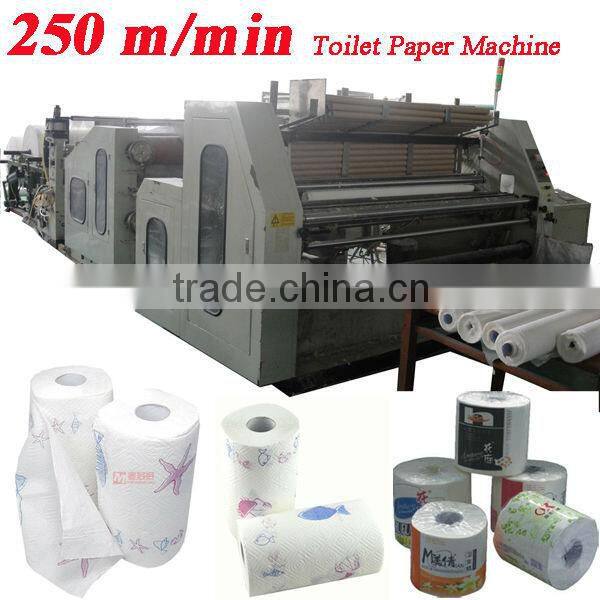

Overall view of Easy Operation Embossing Peforating Laminating High Speed Automatic Toilet Tissue Paper Production Machine.
Front view of Easy Operation Embossing Peforating Laminating High Speed Automatic Toilet Tissue Paper Production Machine.
Embossing unit of other companies' Easy Operation PLC High Speed Automatic Toilet Tissue Paper Production Machine.

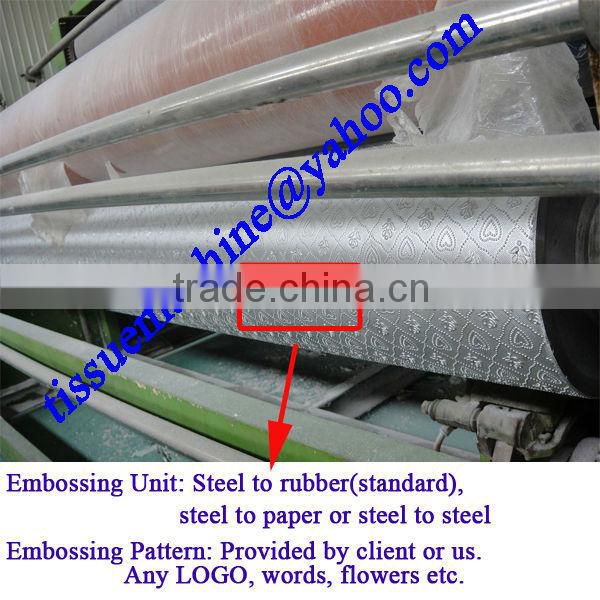

Embossing unit of our Easy Operation Embossing Peforating Laminating High Speed Automatic Toilet Tissue Paper Production Machine.

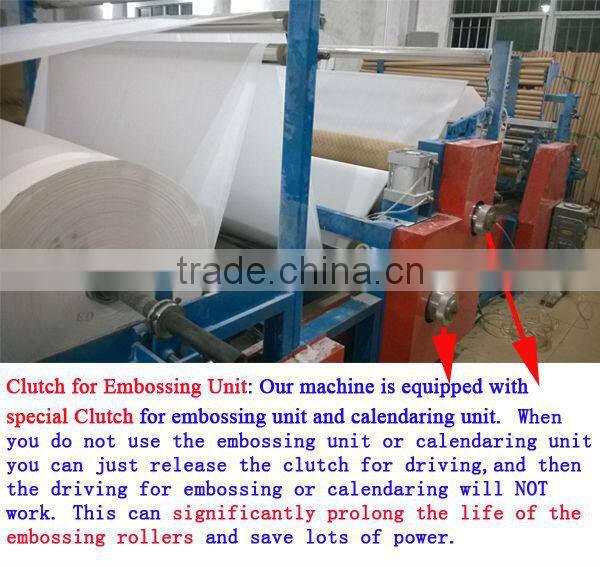

Our Easy Operation Embossing Peforating Laminating High Speed Automatic Toilet Tissue Paper Production Machine is with clutch for embossing unit which can significantly prolong the life of embossing unit and save power.

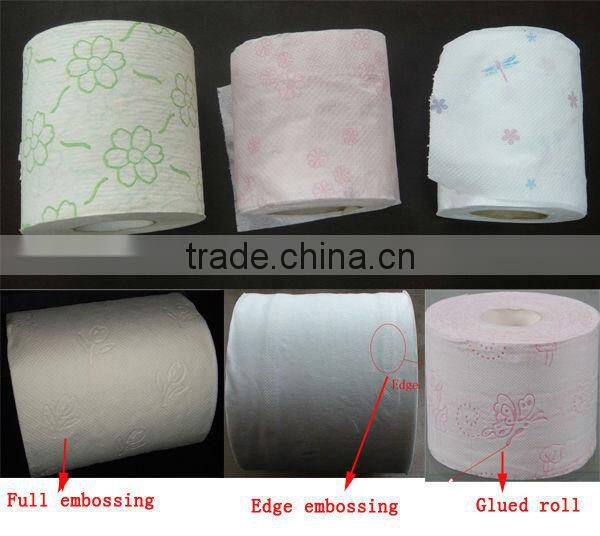

Embossing pattern of our Easy Operation Embossing Peforating Laminating High Speed Automatic Toilet Tissue Paper Production Machine.

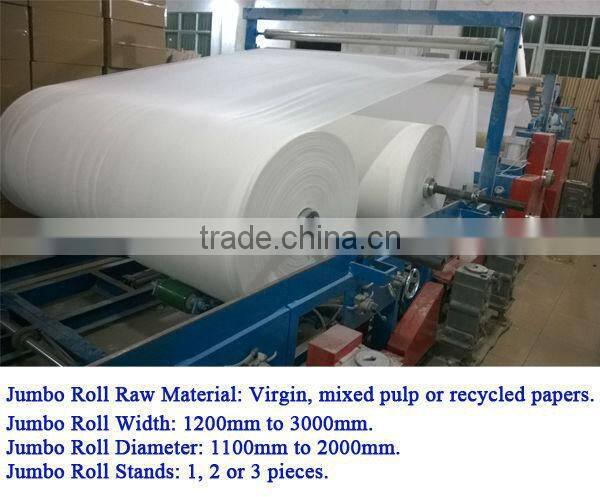

Raw materila of our Easy Operation Embossing Peforating Laminating High Speed Automatic Toilet Tissue Paper Production Machine.

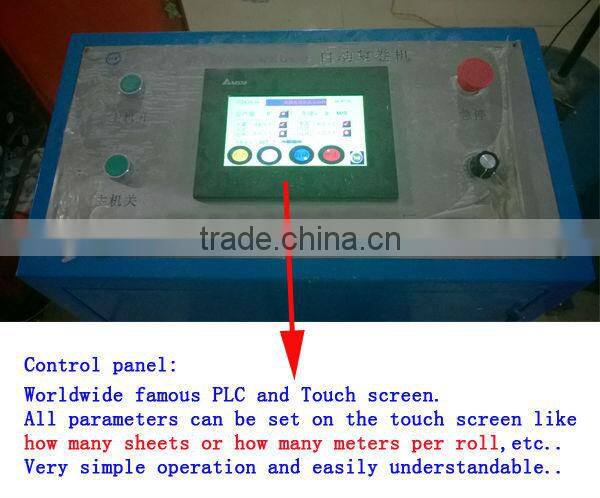

Control panel of our Easy Operation Embossing Peforating Laminating High Speed Automatic Toilet Tissue Paper Production Machine.

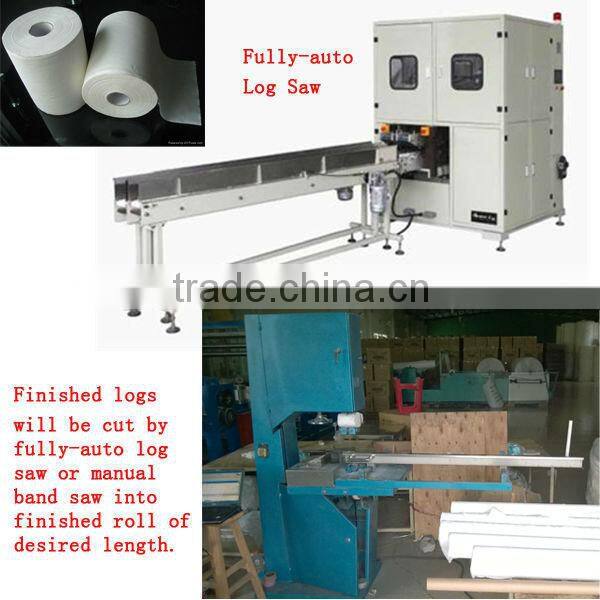

Finished logs made by our Easy Operation Embossing Peforating Laminating High Speed Automatic Toilet Tissue Paper Production Machine will be cut by semi-auto or fully-auto cutting machines.
Finished rolls made by our Easy Operation Embossing Peforating Laminating High Speed Automatic Toilet Tissue Paper Production Machine.

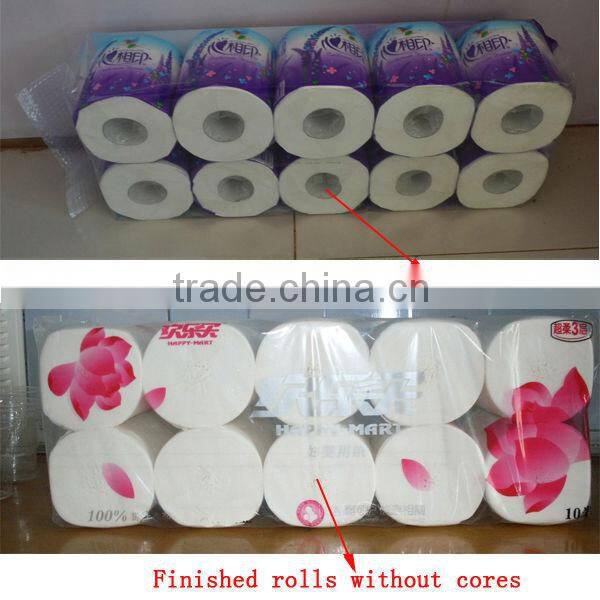

Finally packed rolls made by our Easy Operation Embossing Peforating Laminating High Speed Automatic Toilet Tissue Paper Production Machine.

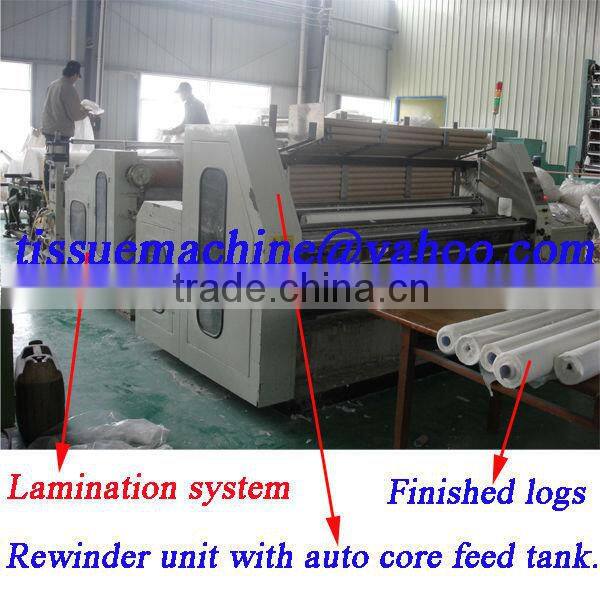

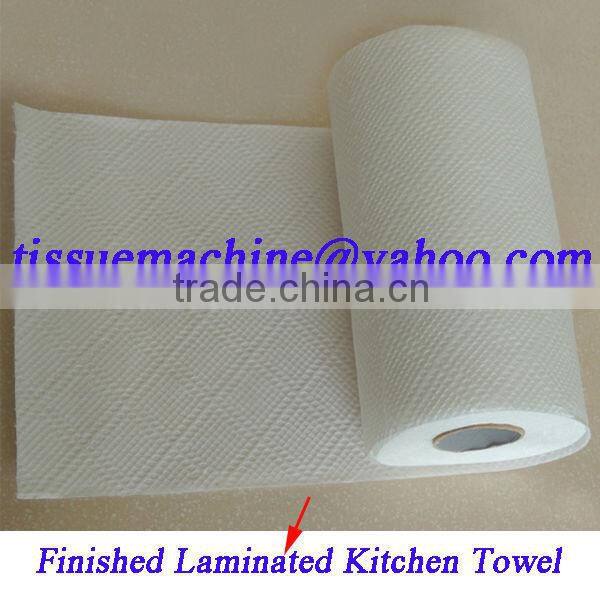

We also have another model of Easy Operation Embossing Peforating Laminating High Speed Automatic Toilet Tissue Paper Production Machine which can produce both toilet rolls and kitchen towels with lamination as shown below.
