Full Line Rewinding Embossing Peforating Laminating High Speed Automatic Bath Tissue Machine .
Technical parameters of our Full Line Rewinding Embossing Peforating Laminating High Speed Automatic Bath Tissue Machine .
Model |
TRM |
Parent roll size |
1100mm diameter x 1200-3500mm width or customized. |
Finished roll size |
Diameter adjustable, maximum 150mm Width adjustable. |
Speed |
0-250 m/min or 0-200 m/min customized |
Core diameter |
76mm |
Control |
PLC Control Human-Machine Interface (Touch screen) Inverter speed control |
Embosser |
steel to rubber (1 set) controlled by level-type cylinders, not traditional screws. Embossing tension is adjustable(micro adjustment.) Embossing pattern can be any company LOGO, brand name, flower etc, provided by client, or recommended by us. Steel to steel and steel to paper are optional. |
|
Features |
Pneumatic loading jumbo rolls. Automatic core feeding unit Automatic counting unit Automatic perforating unit(perforating distance is adjustable) Outer diameter of finished rolls is adjustable by cylinder Automatic pushing out finished logs by cylinder Automatic tail cutter and sealer tail (Glue) Emergency stop when paper breaks |
Perforation unit |
Perforating distance is adjustable. Controlled by cylinders, not screw |
Machine size |
5000*2200*1900 mm |
Weight |
3800 KG |
Photos and videos available. Please contact us. | |

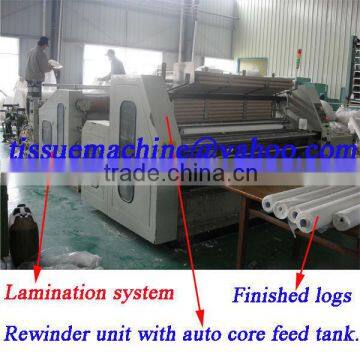

Overall view of Full Line Rewinding Embossing Peforating Laminating High Speed Automatic Bath Tissue Machine .
Front view of Full Line Rewinding Embossing Peforating Laminating High Speed Automatic Bath Tissue Machine .
Embossing unit of other companies' Full Line Rewinding Embossing Peforating Laminating High Speed Automatic Bath Tissue Machine .
Embossing unit of our Full Line Rewinding Embossing Peforating Laminating High Speed Automatic Bath Tissue Machine .
Our Full Line Rewinding Embossing Peforating Laminating High Speed Automatic Bath Tissue Machine is with clutch for embossing unit which can significantly prolong the life of embossing unit and save power.
Embossing pattern of our Full Line Rewinding Embossing Peforating Laminating High Speed Automatic Bath Tissue Machine .
Raw materila of our Full Line Rewinding Embossing Peforating Laminating High Speed Automatic Bath Tissue Machine .
Control panel of our Full Line Rewinding Embossing Peforating Laminating High Speed Automatic Bath Tissue Machine .
Finished logs made by our Full Line Rewinding Embossing Peforating Laminating High Speed Automatic Bath Tissue Machine will be cut by semi-auto or fully-auto cutting machines.
Finished rolls made by our Full Line Rewinding Embossing Peforating Laminating High Speed Automatic Bath Tissue Machine .
Finally packed rolls made by our Full Line Rewinding Embossing Peforating Laminating High Speed Automatic Bath Tissue Machine .
We also have another model of Full Line Rewinding Embossing Peforating Laminating High Speed Automatic Bath Tissue Machine which can produce both toilet rolls and kitchen towels with lamination as shown below.
