Automatic Embossing Toilet Tissue Machine

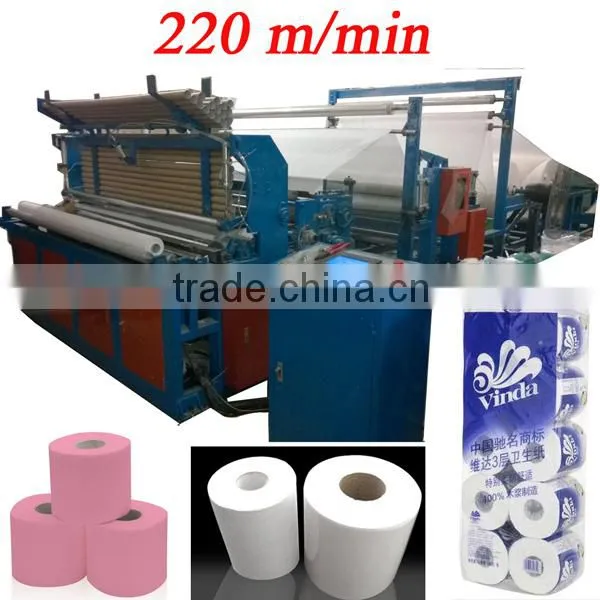

Automatic Embossing Toilet Tissue Machine photo-1
US$ 20,000 - 70,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Slitting Rewinder
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or customized according to Available for Toilet Tissue Machine
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Slitting Rewinder
Computerized Yes
Place of Origin Guangdong, China
Brand Name ACE
Model Number TRM toilet tissue machine
Voltage 3phase 380v 50hz subject to toilet tissue machine
Power(W) 7.5kw subject to toilet tissue machine
Dimension(L*W*H) 6x(2-3)x2m subject to toilet tissue machine
Weight 3000kg subject to toilet tissue machine
Certification Subject to toilet tissue machine
Warranty 1 year for toilet tissue machine
After-sales Service Provided Engineers available to service machinery overseas

Automatic Embossing Toilet Tissue Machine

Technical parameters of our Automatic Embossing Toilet Tissue Machine.

Model

TRM

Parent roll size

1100mm diameter x 1200-2800mm width or customized.

Finished roll size

Diameter adjustable, maximum 150mm

Width adjustable.

Speed

0-220 m/min

Core diameter

76mm

Control

PLC Control

Human-Machine Interface (Touch screen)

Inverter speed control

Embosser

steel to rubber (1 set) controlled by level-type cylinders, not traditional screws.

Embossing tension is adjustable(micro adjustment.)

Embossing pattern can be any company LOGO, brand name, flower etc, provided by client, or recommended by us.

Steel to steel and steel to paper are optional.





Features

Pneumatic loading jumbo rolls.

Automatic core feeding unit

Automatic counting unit

Automatic perforating unit(perforating distance is adjustable)

Outer diameter of finished rolls is adjustable by cylinder

Automatic pushing out finished logs by cylinder

Automatic tail cutter and sealer tail (Glue)

Emergency stop when paper breaks

Perforation unit

 Perforating distance is adjustable.

Controlled by cylinders, not screw

Machine size

5000*2200*1900 mm

Weight

3800 KG

Photos and videos available. Please contact us.

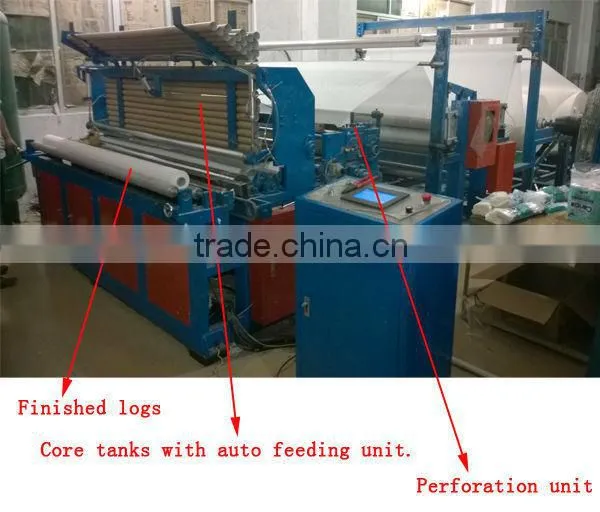

Overall view of Automatic Embossing Toilet Tissue Machine.

Automatic Embossing Toilet Tissue Machine



Front view of Automatic Embossing Toilet Tissue Machine

Automatic Embossing Toilet Tissue Machine



Embossing unit of other companies' Automatic Embossing Toilet Tissue Machine.

Automatic Embossing Toilet Tissue Machine



Embossing unit of our Automatic Embossing Toilet Tissue Machine.

Automatic Embossing Toilet Tissue Machine



Our  Automatic Embossing Toilet Tissue Machine is with clutch for embossing unit which can significantly prolong the life of embossing unit and save power.

Automatic Embossing Toilet Tissue Machine





Embossing pattern of our Automatic Embossing Toilet Tissue Machine

Automatic Embossing Toilet Tissue Machine





Raw materila of our Automatic Embossing Toilet Tissue Machine.

Automatic Embossing Toilet Tissue Machine





Control panel of our Automatic Embossing Toilet Tissue Machine.

Automatic Embossing Toilet Tissue Machine





Finished logs made by our Automatic Embossing Toilet Tissue Machine will be cut by semi-auto or fully-auto cutting machines.

 Automatic Embossing Toilet Tissue Machine





Finished rolls made by our Automatic Embossing Toilet Tissue Machine.

Automatic Embossing Toilet Tissue Machine





Finally packed rolls made by our Automatic Embossing Toilet Tissue Machine.

Automatic Embossing Toilet Tissue Machine
