Specifications
1 Small Toilet Paper Making Machine2 Speed 200m/min
3 Embossing Lamianting Ital design
4 PLC control
5 20 year experience
Italy Design Embossing Rewinding Perforating Printing High Speed Automatic Small Toilet Paper Making Machine.
Technical parameters of ourItaly Design Embossing Rewinding Perforating Printing High Speed Automatic Small Toilet Paper Making Machine
Model |
TRM |
Parent roll size |
1100mm diameter x 1200-2800mm width or customized. |
Finished roll size |
Diameter adjustable, maximum 150mm Width adjustable. |
Speed |
0-220 m/min |
Core diameter |
76mm |
Control |
PLC Control Human-Machine Interface (Touch screen) Inverter speed control |
Embosser |
steel to rubber (1 set) controlled by level-type cylinders, not traditional screws. Embossing tension is adjustable(micro adjustment.) Embossing pattern can be any company LOGO, brand name, flower etc, provided by client, or recommended by us. Steel to steel and steel to paper are optional. |
|
Features |
Pneumatic loading jumbo rolls. Automatic core feeding unit Automatic counting unit Automatic perforating unit(perforating distance is adjustable) Outer diameter of finished rolls is adjustable by cylinder Automatic pushing out finished logs by cylinder Automatic tail cutter and sealer tail (Glue) Emergency stop when paper breaks |
Perforation unit |
Perforating distance is adjustable. Controlled by cylinders, not screw |
Machine size |
5000*2200*1900 mm |
Weight |
3800 KG |
Photos and videos available. Please contact us. | |

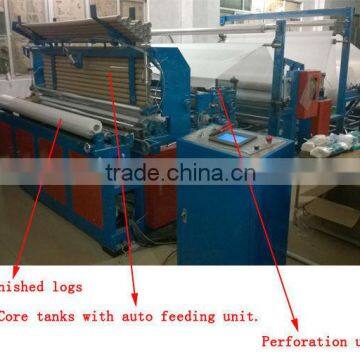

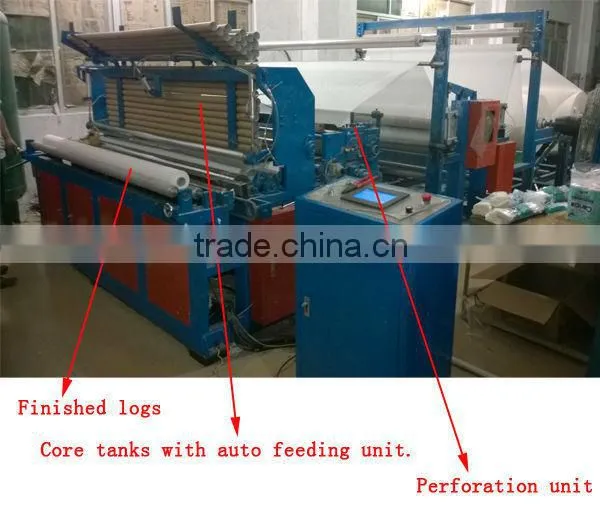

Overall view of Italy Design Embossing Rewinding Perforating Printing High Speed Automatic Small Toilet Paper Making Machine.
Front view of Italy Design Embossing Rewinding Perforating Printing High Speed Automatic Small Toilet Paper Making Machine.
Embossing unit of other companies' Italy Design Embossing Rewinding Perforating Printing High Speed Automatic Small Toilet Paper Making Machine.
Embossing unit of our Italy Design Embossing Rewinding Perforating Printing High Speed Automatic Small Toilet Paper Making Machine.
Our Italy Design Embossing Rewinding Perforating Printing High Speed Automatic Small Toilet Paper Making Machine is with clutch for embossing unit which can significantly prolong the life of embossing unit and save power.
Embossing pattern of our Italy Design Embossing Rewinding Perforating Printing High Speed Automatic Small Toilet Paper Making Machine.
Raw materila of our Italy Design Embossing Rewinding Perforating Printing High Speed Automatic Small Toilet Paper Making Machine.
Control panel of our Italy Design Embossing Rewinding Perforating Printing High Speed Automatic Small Toilet Paper Making Machine.
Finished logs made by our Italy Design Embossing Rewinding Perforating Printing High Speed Automatic Small Toilet Paper Making Machine will be cut by semi-auto or fully-auto cutting machines.
Finished rolls made by our Italy Design Embossing Rewinding Perforating Printing High Speed Automatic Small Toilet Paper Making Machine.
Finally packed rolls made by our Italy Design Embossing Rewinding Perforating Printing High Speed Automatic Small Toilet Paper Making Machine.
* Small Toilet Paper Making Machine Small Toilet Paper Making Machine Small Toilet Paper Making Machine Small Toilet Paper Making Machine Small Toilet Paper Making Machine Small Toilet Paper Making Machine Small Toilet Paper Making Machine Small Toilet Paper Making Machine Small Toilet Paper Making Machine Small Toilet Paper Making Machine
