Specifications
1 1 Color Printing Napkin Machine2 Speed 700 piece/min
3 Fully-printed
4 20 years experience
5 Printing up to 6 colors
Italy Design Automatic High Speed 1 Color Printing Napkin Machine
Model |
TNM-1C |
Output type |
1 layer, with 2 lines output. |
Folding speed |
400-700 piece/min, depending on the paper quality and napkin size. High speed model available, to be negotiated. |
Raw paper |
13-20g/m2 2-ply, 20-45g/m2 1-ply, wooden pulp paper or others. Other sizes please specify. |
Jumbo roll size |
≤ (200-460)mm x Φ1200mm (Depending on your napkin size,customized) |
Napkin unfolded size |
200mm x 200mm to 460mm x 460mm or Customized. |
Napkin folded size |
100mm x 100mm to 230mm x 230mm One size is fixed. One napkin size is adjustable, decided by the paper roll width. |
Folding type |
Mechanical fold with band saw cutting; 1/4 fold; Vacuum folding and other folding types available. |
Folding unit |
With or without folding fingers. |
Embossing unit |
1- Steel to paper(wool), Male to female. (Steel to steel is available.) 2- Embossing pattern can be any LOGO, brand name, flowers etc. 3- Embossing pattern can be customized by client or recommended by us 4- Controlled by screws, mechanical pressing type. Cylinder type is optional. |
Printing unit |
1- Flexo printing type. 2- Printing colors customized up to 6 colors. 3- Printing Logo is changeable. You just need to change the Printing Rubber only. 4- Annilox printing roll. 5- Printing roll is adjustable. 6- Ink printing system to be negotiated. |
Tension control |
Speedless Tension control unit to fit the machine for paper of different quaity and different gsm. With automatic web guiding system. With automatic web tension control system. |
Calendar unit |
Make the napkin softer. |
Counting |
Automatic counting unit |
Emergent stop |
Emergent stop unit to inspect any paper breaks, paper jams. |
Paper feeding |
Synchronizer for feeding paper |
Power |
10Kw depends on requiremetns (3-phase AC380V 50Hz or customized) |
Machine size |
7x2x3m |
Weight |
4000KG |
| Videos and photos available. | |
Below are photos of our Italy Design Automatic High Speed 1 Color Printing Napkin Machine for your reference.
Overview Italy Design Automatic High Speed 1 Color Printing Napkin Machine.

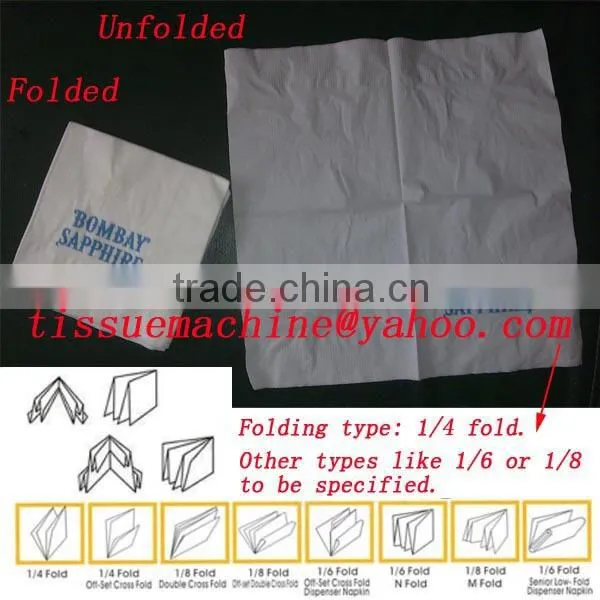

Folding type of our Italy Design Automatic High Speed 1 Color Printing Napkin Machine can be any customized 1/4 fold, 1/6 fold, 1/8 fold or special fold. Please specify.
Below is 1/6 fold napkin made by our Italy Design Automatic High Speed 1 Color Printing Napkin Machine.

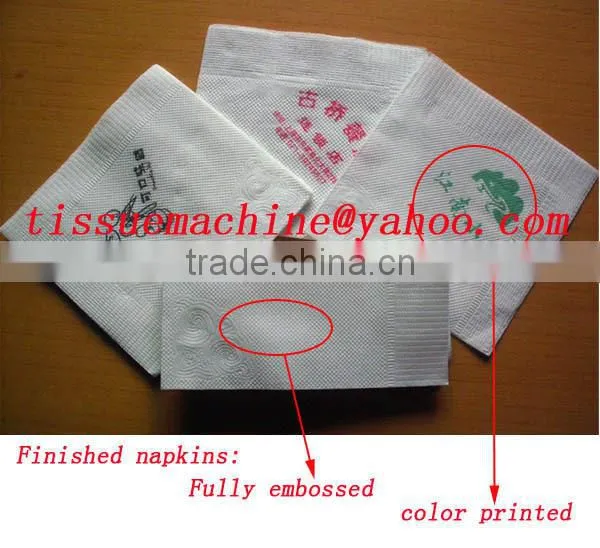

Finished napkins with full embossing pattern and LOGO printing made by our Italy Design Automatic High Speed 1 Color Printing Napkin Machine.

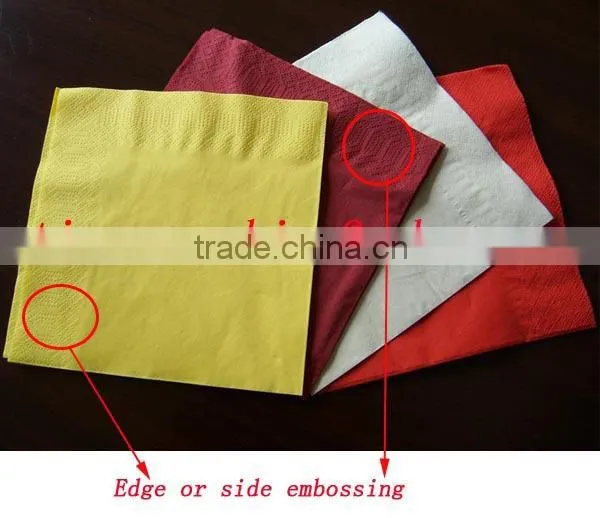

Finished colored napkins with edge/side embossing pattern made by our Fastest 2500 Piece Italy Design Embossing Printing Automatic High Speed 1 Color Printing Napkin Machine.

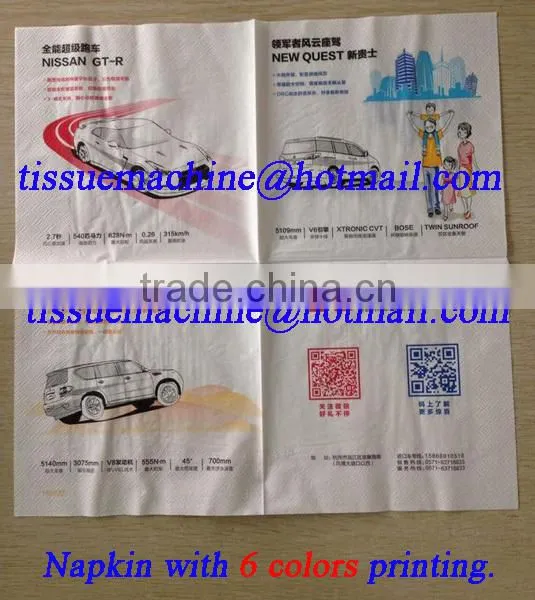

Finished napkins with 6 colors Fully printing made by our Italy Design Automatic High Speed Color Printing Napkin Machine.

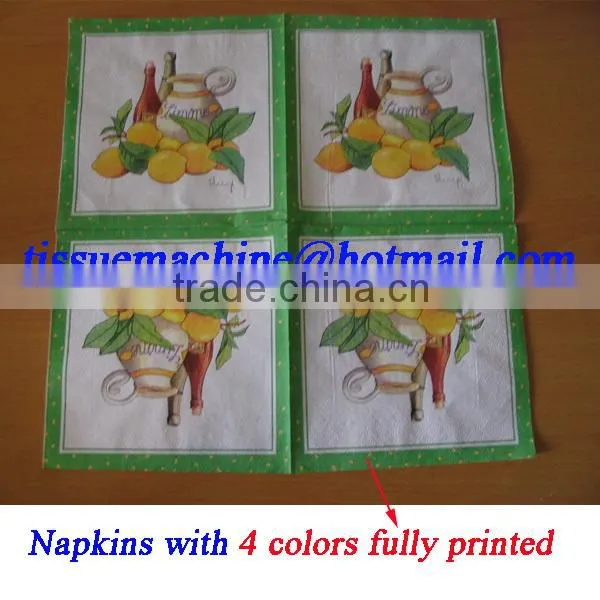

Finished napkins with 4 colors Fully printing made by our Italy Design Automatic High Speed Color Printing Napkin Machine.
