Italy German Design 2900mm Embossing Printing Laminating High Speed Automatic Jumbo Roll Slitting Rewinder Machine.
Technical parameters of our Italy German Design 2900mm Embossing Printing Laminating High Speed Automatic Jumbo Roll Slitting Rewinder Machine.
Model |
IRM |
Parent roll size |
1100mm diameter x 1200-2800mm width or customized. Paper or Nonwoven jumbo rolls. |
Finished roll size |
Towel rolls, Jumbo toilet roll, Jumbo rolls, Industrial rolls,Hand wiping rolls Finished roll diameter: Φ min. any size ∼ max.400mm (Tightness can be adjustable) Finished roll width: Adjustable within certain scope. please specify the sizes. |
Speed |
0-220 m/min |
Core diameter |
76mm |
Control |
PLC Control Human-Machine Interface (Touch screen) Inverter speed control |
Embosser |
steel to rubber (1 set) controlled by level-type cylinderscopied Italy design, not traditional screws. Embossing tension is adjustable(micro adjustment.) Embossing pattern can be any company LOGO, brand name, flower etc, provided by client, or recommended by us. Steel to steel and steel to paper are optional. |
|
Features |
Pneumatic loading jumbo rolls. Manual feeding cores. Fully-auto model available. Automatic counting unit Automatic perforating unit(perforating distance is adjustable) Outer diameter of finished rolls is adjustable by cylinder Automatic pushing out finished logs by cylinder Automatic tail cutter and sealer tail (Glue) Emergency stop when paper breaks |
Perforation unit |
Perforating distance is adjustable. Controlled by cylinders, not screw |
Machine size |
7000*3000*2000 mm depends on jumbo roll width. |
Weight |
4000 KG |
Photos and videos available. Please contact us. | |

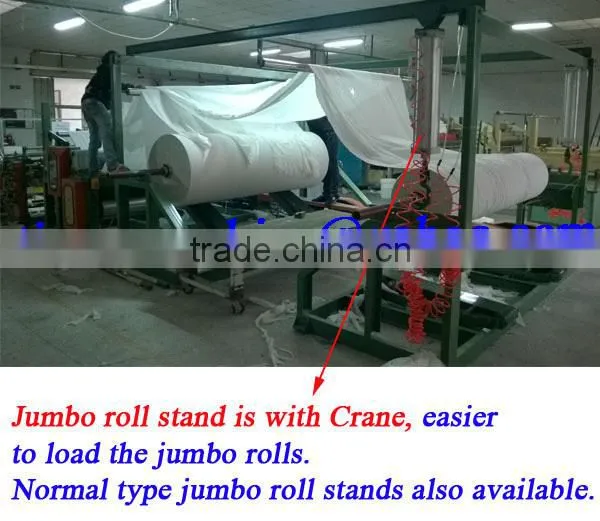

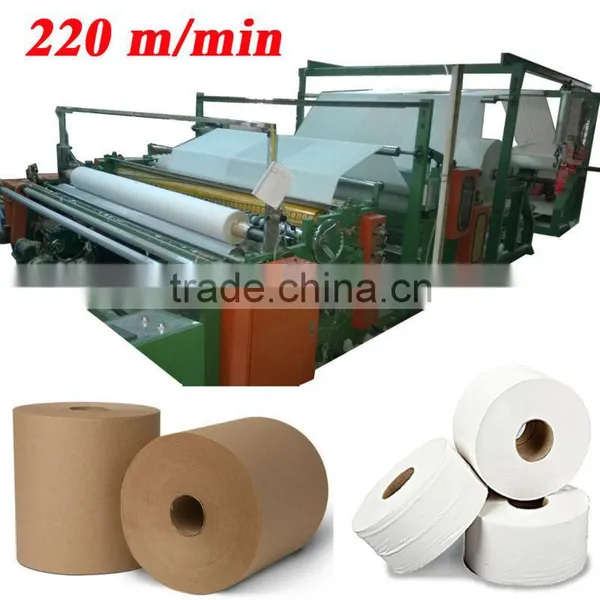

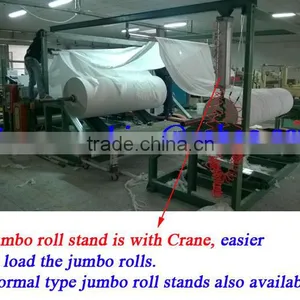

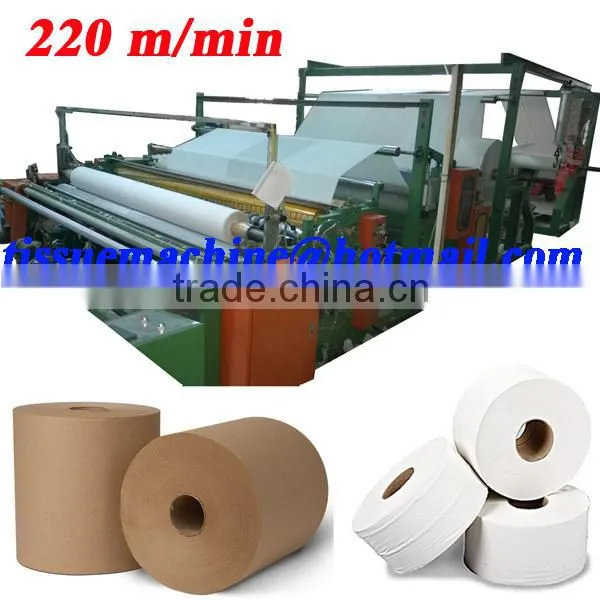

Overall view of Italy German Design 2900mm Embossing Printing Laminating High Speed Automatic Jumbo Roll Slitting Rewinder Machine.

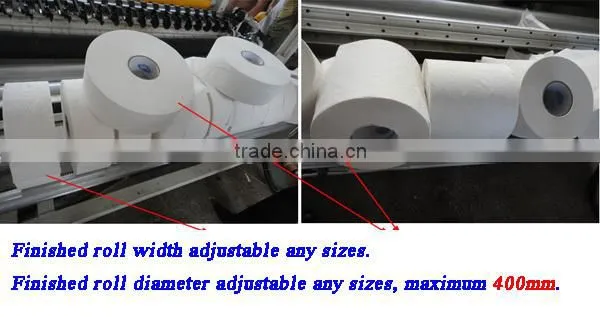

Finished rolls size is adjustable made by our Italy German Design 2900mm Embossing Printing Laminating High Speed Automatic Jumbo Roll Slitting Rewinder Machine.
Finished rolls of Italy German Design 2900mm Embossing Printing Laminating High Speed Automatic Jumbo Roll Slitting Rewinder Machine.

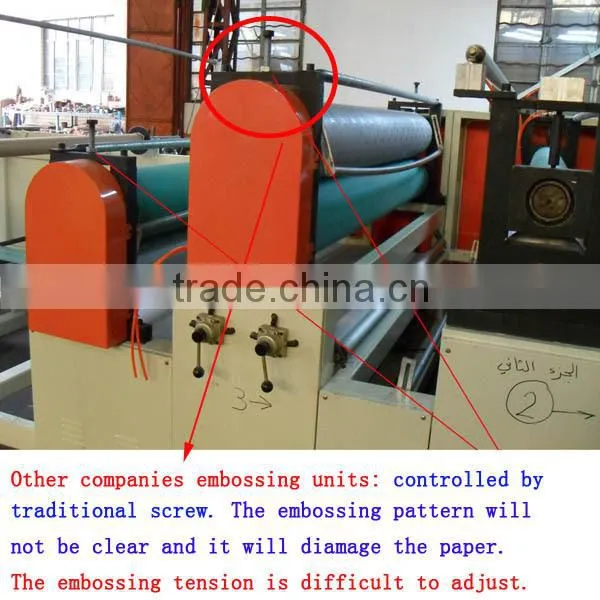

Embossing unit of other companies' Machine.

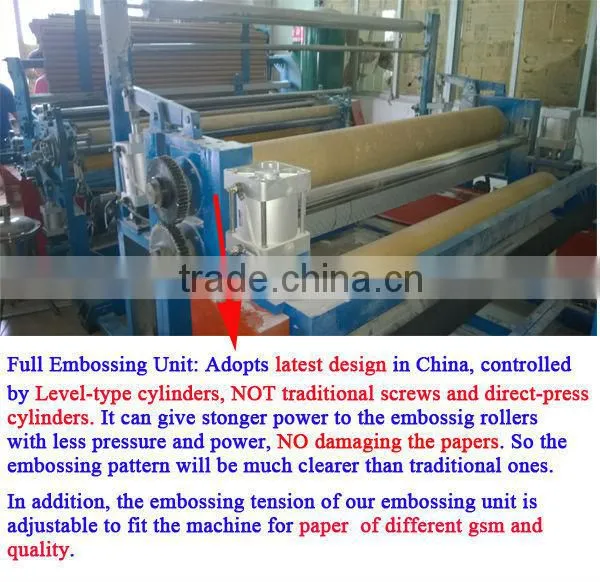

Embossing unit of our Italy German Design 2900mm Embossing Printing Laminating High Speed Automatic Jumbo Roll Slitting Rewinder Machine.

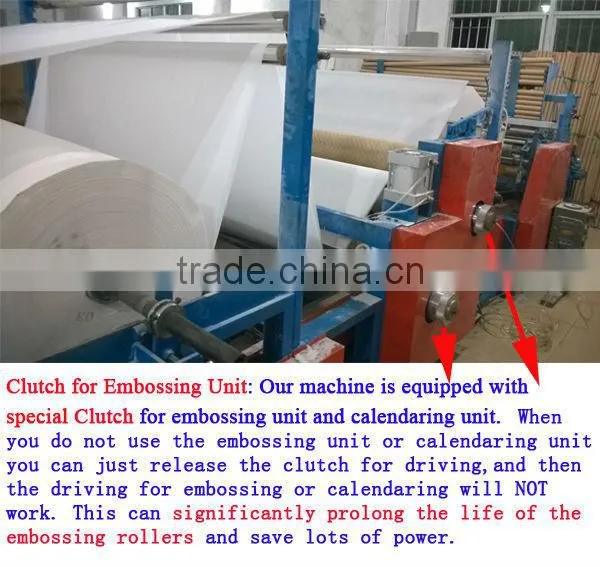

Our Italy German Design 2900mm Embossing Printing Laminating High Speed Automatic Jumbo Roll Slitting Rewinder Machine is with clutch for embossing unit which can significantly prolong the life of embossing unit and save power.

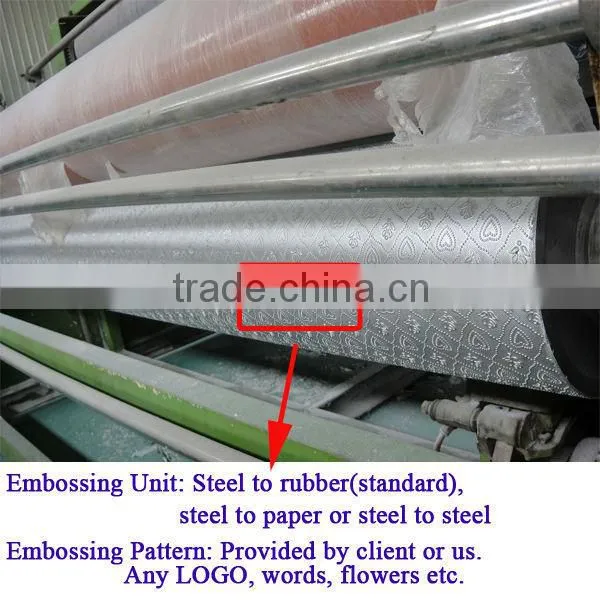

Embossing pattern of our Italy German Design 2900mm Embossing Printing Laminating High Speed Automatic Jumbo Roll Slitting Rewinder Machine.

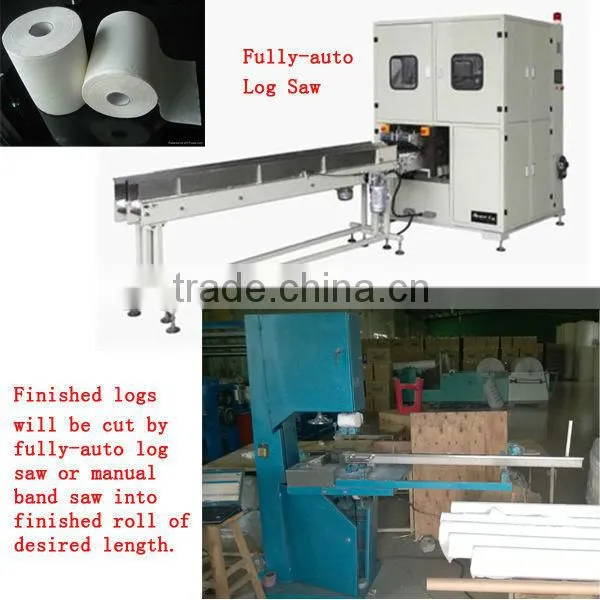

Finished logs of our Italy German Design 2900mm Embossing Printing Laminating High Speed Automatic Jumbo Roll Slitting Rewinder Machine will be cut by semi-auto or fully-auto cutting machines.
