Italy Design Embossing Perforating Printing High Speed Automatic JRT Machine
Technical parameters of ourItaly Design Embossing Perforating Printing High Speed Automatic JRT Machine
Model |
IRM |
Parent roll size |
1100mm diameter x 1200-2800mm width or customized. Paper or Nonwoven jumbo rolls. |
Finished roll size |
Towel rolls, Jumbo toilet roll, Jumbo rolls, Industrial rolls,Hand wiping rolls Finished roll diameter: Φ min. any size ∼ max.400mm (Tightness can be adjustable) Finished roll width: Adjustable within certain scope. please specify the sizes. |
Speed |
0-220 m/min |
Core diameter |
76mm |
Control |
PLC Control Human-Machine Interface (Touch screen) Inverter speed control |
Embosser |
steel to rubber (1 set) controlled by level-type cylinderscopied Italy design, not traditional screws. Embossing tension is adjustable(micro adjustment.) Embossing pattern can be any company LOGO, brand name, flower etc, provided by client, or recommended by us. Steel to steel and steel to paper are optional. |
|
Features |
Pneumatic loading jumbo rolls. Manual feeding cores. Fully-auto model available. Automatic counting unit Automatic perforating unit(perforating distance is adjustable) Outer diameter of finished rolls is adjustable by cylinder Automatic pushing out finished logs by cylinder Automatic tail cutter and sealer tail (Glue) Emergency stop when paper breaks |
Perforation unit |
Perforating distance is adjustable. Controlled by cylinders, not screw |
Machine size |
7000*3000*2000 mm depends on jumbo roll width. |
Weight |
4000 KG |
Photos and videos available. Please contact us. | |

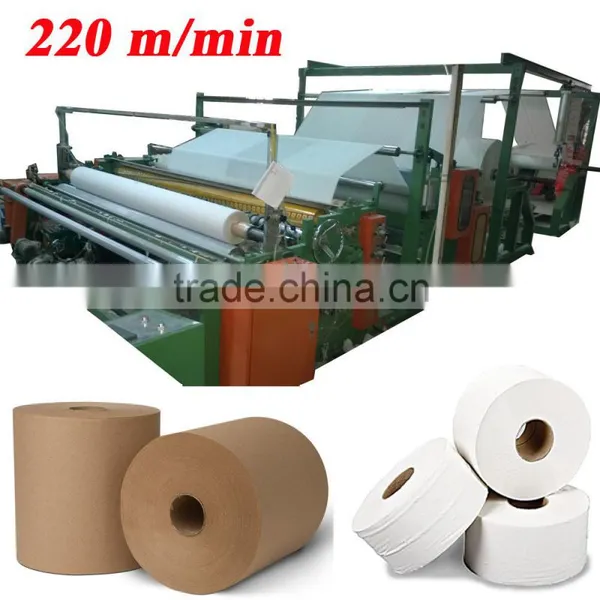

Overall view of Italy Design Embossing Rewinding Perforating Printing High Speed Automatic JRT Machine.

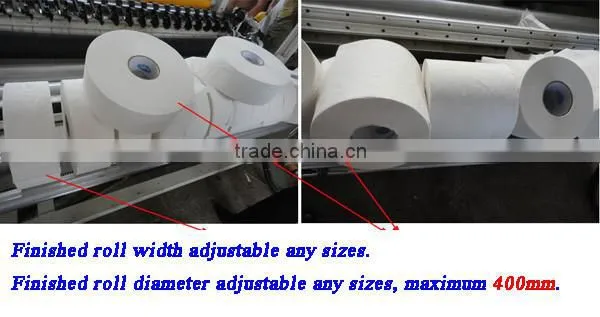

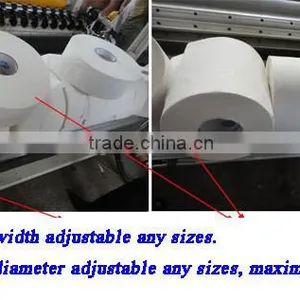

Finished rolls size is adjustable made by our Italy Design Embossing Rewinding Perforating Printing High Speed Automatic JRT Machine.

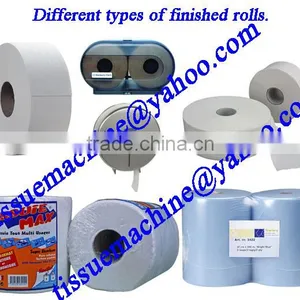

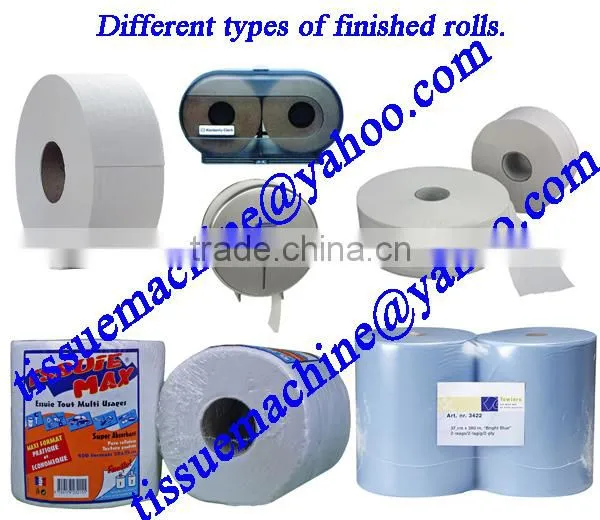

Finished rolls of Italy Design Embossing Rewinding Perforating Printing High Speed Automatic JRT Machine.
Embossing unit of other companies' JRT Machine.
Embossing unit of our Italy Design Embossing Rewinding Perforating Printing High Speed Automatic JRT Machine.
Our Italy Design Embossing Rewinding Perforating Printing High Speed Automatic JRT Machine is with clutch for embossing unit which can significantly prolong the life of embossing unit and save power.
Embossing pattern of our Italy Design Embossing Rewinding Perforating Printing High Speed Automatic JRT Machine.
Finished logs of our Italy Design Embossing Rewinding Perforating Printing High Speed Automatic JRT Machine will be cut by semi-auto or fully-auto cutting machines.
