High Speed Printing Pocket Tissue Paper Machine
Technical parameters of High Speed Printing Pocket Tissue Paper Machine
Type |
PTM-2L |
| Output |
2lines output. 1lines, 3lines and 4lines output available and customized. |
| Speed | 600-700 sheet/min/line x 2lines |
Raw material |
13-18g/m2 2-ply virgin tissue; 18-35g/m2 single ply tissue and others |
Jumbo roll size |
≤ 420mm x Φ 1200mm (Width x Diameter) Or to be customized. |
Unfolded size |
210x210mm±2mm (please specify your size) |
Folded size |
Long type: 105x52mm±2mm Short type: 75x52 mm±2mm |
Folding type |
1/8 fold, 1/6 fold, 1/4 fold, L shape folding and other special folds. Vacuum folding; |
Control |
Inverter control Emergency stop Automatic stop if paper breaks or used up. JOG Stepless adjusting speed |
Auto count |
1—999 sheets |
Embossing |
steel to paper embossing. Any LOGO, words etc. steel to steel optional NEW Embossing Technology available, to be discussed further. |
|
Printing
|
2 colors printing units. (flexo printing and changeable printing pattern). More colors printing available. |
Cluster ink net grain roller | |
Printing roller can be adjusted | |
Printing contraposition setting | |
In-phase belt, gear drive | |
Stainless steel | |
Back stand |
Strong steel configuration |
One back stand | |
Power |
AC380V 50HZ or 220V 60HZ or customized. |
Air pressure |
0.5 Mpa(buyer supply) |
| More details like photos and videos available. Please contact us. | |
Below are more details of High Speed Printing Pocket Tissue Paper Machine.
2 lines Output with perfect folding of our High Speed Printing Pocket Tissue Paper Machine
Perfect folding of High Speed Printing Pocket Tissue Paper Machine .
2lines output and 2 colors printing of our High Speed Printing Pocket Tissue Paper Machine
Our High Speed Printing Pocket Tissue Paper Machine is with 2 colors printing units. Each printing unit can be adjusted flexibly. Each printing unit is with Doctor Blade and covers to remove the surplus ink to ensure high speed running without ink spraying out of the ink tank.
On the back side of the printing units of our High Speed Printing Pocket Tissue Paper Machine are also with Doctor Blades to remove the ink and paper dusts.
Our High Speed Printing Pocket Tissue Paper Machine is with steel to paper embossing unit. Steel to steel is optional. We have NEW Embossing Technology. Please contact us for more details.
Below are embossing patterns made by the NEW Embossing Technology of High Speed Printing Pocket Tissue Paper Machine .
The embossing patterns made by the NEW Embossing Technology of High Speed Printing Pocket Tissue Paper Machine looks very attractive.
Embossing patterns of our High Speed Printing Pocket Tissue Paper Machine can be such LOGO, brand name etc. as shown as below.
Final 4 colors printed pocket tissue with longer size made by our High Speed Printing Pocket Tissue Paper Machine. Other special folding also available to be customized.

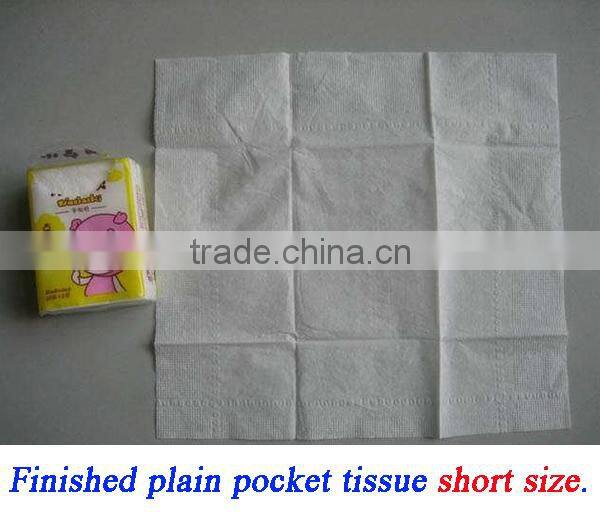

Final plain pocket tissue with shorter size made by our High Speed Printing Pocket Tissue Paper Machine. Other special folding also available to be customized.

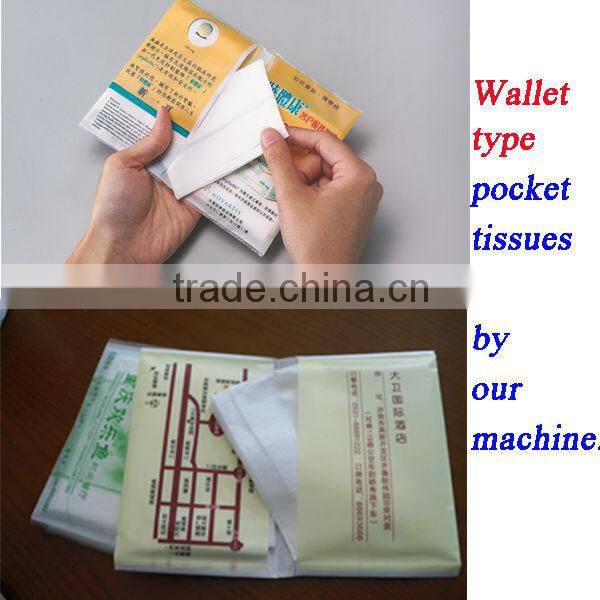

Our High Speed Printing Pocket Tissue Paper Machine can also make Wallet Type pocket tissues. Other special folding also available to be customized.
Our High Speed Printing Pocket Tissue Paper Machine can also make other special folding dispenser napkins as shown below.
Our High Speed Printing Pocket Tissue Paper Machine can also make other special folding dispenser napkins as shown below.
Our High Speed Printing Pocket Tissue Paper Machine can also make other special folding as shown below.
