Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine.
Detailed description of Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine.
Model | NTM-240-6L |
| Output | 6 lines output. Other capacity like 3lines, 4lines, up to 15lines are available. |
| Folding speed | 600-1000 sheet/min/line x 6 lines, depending on paper quality and workers' operation. Other capacity available like 3lines, 4lines, 7lines, 10lines etc. |
Use | Production of interfold N fold hand towel. |
Raw material | 20-50gsm 2-ply or 1-ply virgin tissue or other tissue |
Jumbo roll size | 1440mm width x 1100 mm diameter. Other sizes available. Width can be up to 2500mm. |
Unfolded size | 240±2mm x 240mm. Other size 210x210mm, 250x250mm etc. available. Please specify. |
Folded size | 80±2mm x 240mm. One cutting size is adjustable |
Folding Type | N/ZW/M/V fold/Interfold/vacuum fold |
Control | Main motor controlled by inverter Frequency speed control Emergency stop if paper breaks Vacuum pump for adsorption Air pressure:0.5Mpa(buyer supply) |
Folding unit | Thickened Floor standing wallboard structure(Full steel plate) so that the machine is running at high speed without vibration. Automatic counting unit |
Embossing unit | 1 set of steel-to-steel embossing unit. (Pattern provided by client) Thickened Floor standing wallboard structure(Full steel plate) Controlled by NEW design level-type cylinder, not screws. Italy and Taiwan design. |
Laminating unit | Optional. Please contact us for further details. |
Jumbo roll stand | 1 back stand, controlled cushion cylinder Web tension control Automatic loading jumbo rolls. |
Power | 5KW main motor, 22KW vacuum pump 3-phase AC380V 50HZ or 3-phase 220V 60Hz, or customized. |
Machine Size | 5000x2500x1900mm |
Weight | 6500KG |
Below are more details of our Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine.
Overall view of Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine.
Overall view of Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine.
Overall view of Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine.
Our Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine is with complete steel plate structure.
Our Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine is with steel to steel embossing unit and Taiwan Vacuum Pump.
Perfect folding of our Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine. The jumbo roll width is 1440mm for 6 lines output. The folding is still perfect while running at stable speed of 600-1000 sheet/min/line.
Our Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine is able to work with 1,2 or 3 plies of virgin paper, mixed/blended pulp paper, recycled paper with different quality and 13-45gsm.
Our Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine can work with Brown Towels.
Finished Brown Towels produced by our Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine.

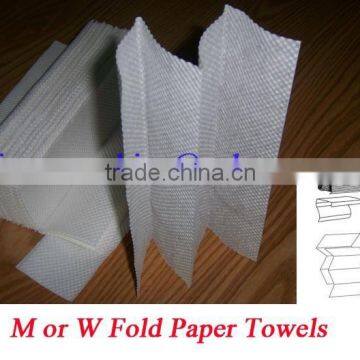

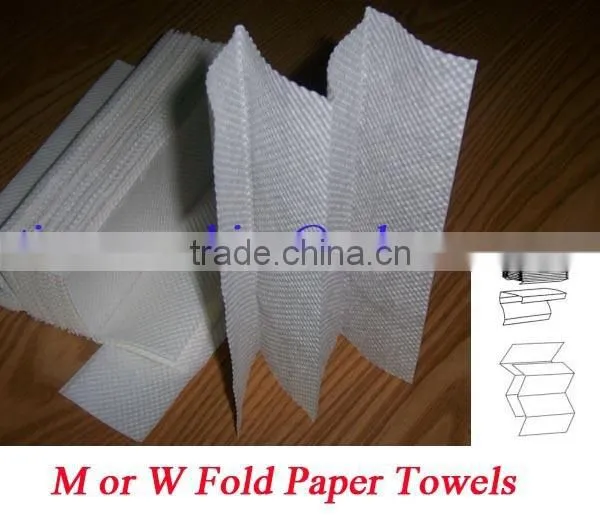

Folding types of our Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine can be V fold, Interfold, C fold, N fold, M fold, W fold and so on. Other folding types also available.
N Fold BROWN towels made by our Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine e.
Our Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine can also convert Green Towels.
Green Fold towels made by our Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine.
Laminated towels with colored glue made by our Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine.
We have Fully-auto Band Saw to connect our Copied Italy Design 6Lanes 4800 Piece per Minute N Fold Laminated High Speed Automatic Six Folding Type Paper Towel Machine.
* Six Folding Type Paper Towel Machine Six Folding Type Paper Towel Machine Six Folding Type Paper Towel Machine Six Folding Type Paper Towel Machine Six Folding Type Paper Towel Machine Six Folding Type Paper Towel Machine Six Folding Type Paper Towel Machine Six Folding Type Paper Towel Machine Six Folding Type Paper Towel Machine Six Folding Type Paper Towel Machine Six Folding Type Paper Towel Machine Six Folding Type Paper Towel Machine
