NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum.
Model No. |
LNM-2L |
Output type |
2 line output 1line more lines output available. |
Folding speed |
500-700 piece/min/line x 2lines, depending on the paper quality and napkin size. |
Raw paper |
13-20g/m2 2-ply, 20-45g/m2 1-ply, wooden pulp paper or others. Other sizes please specify. |
Jumbo roll size |
≤ 340mm x Φ1200mm (Depending on your napkin size, or customized) |
Napkin unfolded size |
170x170mm. Other size can be Customized. |
Napkin folded size |
85x120mm. One size is fixed. One napkin size is adjustable, decided by the paper roll width. |
Folding type |
Vacuum folding and 1/4 fold. Other folding types available. |
Folding unit |
With folding fingers. With web tension control system. |
Embossing unit |
1- Steel to paper(wool), Male to female. (Steel to steel is available.) 2- Embossing pattern can be any LOGO, brand name, flowers etc. 3- Embossing pattern can be customized by client or recommended by us 4- Controlled by screws, mechanical pressing type. Cylinder type is optional. 5- We have innovated NEW Embossing Technology which can make the embossing pattern look transparent, very attractive. Please contact us for more details. |
Printing unit |
1- Flexo printing type. 2- Printing colors customized up to 4 colors. 3- Printing Logo is changeable. You just need to change the Printing Rubber only. 4- Annilox printing roll for printing. 5- Printing roll is adjustable flexibly. |
Tension control |
Speedless Tension control unit to fit the machine for paper of different quaity and different gsm. |
Calendar unit |
Make the napkin softer and better for printing. |
Counting |
Automatic counting unit |
Emergent stop |
Emergent stop unit to inspect any paper breaks, paper jams. |
Paper feeding |
Synchronizer for feeding paper Automatic loading jumbo rolls. |
Power |
5Kw (3-phase AC380V 50Hz or customized) |
Machine size |
6x2x2m. |
Weight |
3000KG |
| Videos and photos available. | |
Below are photos of our NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum. for your reference.
Overview of our NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum.
Our NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum can be with 1 or 2 lines output production or more, with perfect folding.
Perfect folding even the machine is running at 700 piece/min/line of our NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum.
Below are embossing patterns made by the NEW Embossing Technology of NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum.
The embossing patterns made by the NEW Embossing Technology of NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum. looks very attractive.
Colors printed Dispenser Napkins Brown Kraft or White produced by our NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum.
White Dispenser Napkins with color printing produced by our NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum.
Brown Dispenser Napkins without color printing made by our NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum. Standard is steel to paper. Other types are optional.
White Dispenser Napkins without Color Printing made y our NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum.

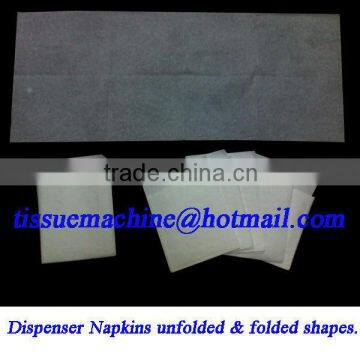

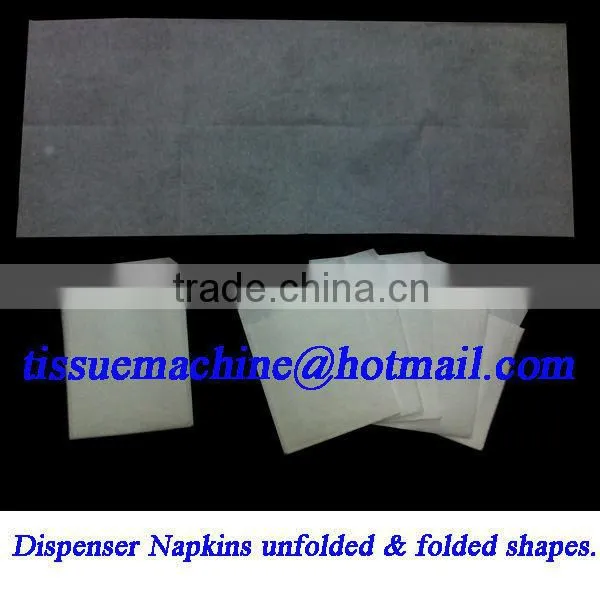

Folding type 1/4 folded Dispenser Napkins produced by our NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum. Normally for 1/4 folding type, unfolded size is 170x1700mm and folded size is 85x120mm, as shown below. Other sizes can be customized.
Perfect folding of 1/4 folded Dispenser Napkins made by our NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum.
Folding type another 1/6 fold Dispenser Napkins made by our NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum.
Folding type other folding Dispenser Napkins can be made by NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum.
Finished Color Printed Dispenser Napkins put in the box made by our NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum.
Finished plain Dispenser Napkins put in the box made by our NEW Design Embossing Printing High Speed Automatic Dispenser Napkin Paper Machine Vacuum.
