Specifications
1 Log Saw Machine2 Cut Speed 120 cut/min
3 Fully-auto
4 Single channel
5 PLC control
PLC Servo Motor Control High Speed Automatic Facial Tissue Log Saw Machine
Tissue paper cutting machine, which is based on the traditional even cutting and result in tissue end not neat defects and influence the efficiency of the production problem because of the lack of labor force and design research and development, equipment adopts intelligent precise control servo system providing and cutting process, improved after 10 years of improvement, has reached the international advanced products cutting speed and accuracy, deeply customer high praise.
1 Meet the needs of the existing tissue machine, packaging machine wire production, to reduce labor cost, improve production efficiency
2 Quality assurance: A: end surface roughness; B: cutting length error is less than + / - 1 mm;
3 Servo drive, PLC control, touch screen setting, product specifications and flexible adjustable;
4 Cutting speed reached 130-150 cut/minute;
5 Security: A: program control, automatic detection, downtime; B: built-in network security shield; C: the security protection device
Technical parameters
The name of the |
parameter |
Equipment model |
FLS |
Cut off the accuracy |
±1mm |
Suitable for material specifications |
Adjustable width: 45 mm - 120 mm; Adjustable thickness: 30 mm - 140 mm; Length: 50-2800 - mm of arbitrary length servo tracking (adjustable) |
Apply base paper material |
Tissue and toilet paper |
Control system |
Servo drive PLC programming control LCD touch screen display |
Whet knife system |
Automatic sharpening, grinding time can be set |
Lubrication system |
Oil mist lubrication, injection time could be controlled by touch screen |
Circular knife size |
Diameter 610mm |
Round head high compensation |
Touch screen control |
Dust removal system |
Exhaust fan for grinding wheel dust absorption, heat removal |
The installed power |
AC380V 50HZ 8KW |
The required pressure |
0.5 Mpa (the buyer should bring along their own) |
Production speed |
80-130 cut/min |
Configuration options |
|
Tissue paper folding machine |
The attachment production |
Soft shaft packing machine |
The attachment production |
Automatic box sealing machine |
The attachment production |
** V
*

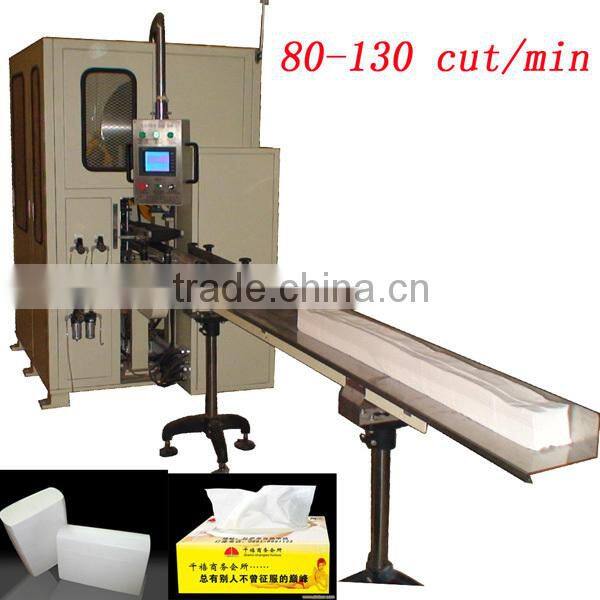

Overall view of the PLC Servo Motor Control High Speed Automatic Facial Tissue Log Saw Machine
Overall view of our PLC Servo Motor Control High Speed Automatic Facial Tissue Log Saw Machine
Tissues output from our PLC Servo Motor Control High Speed Automatic Facial Tissue Log Saw Machine

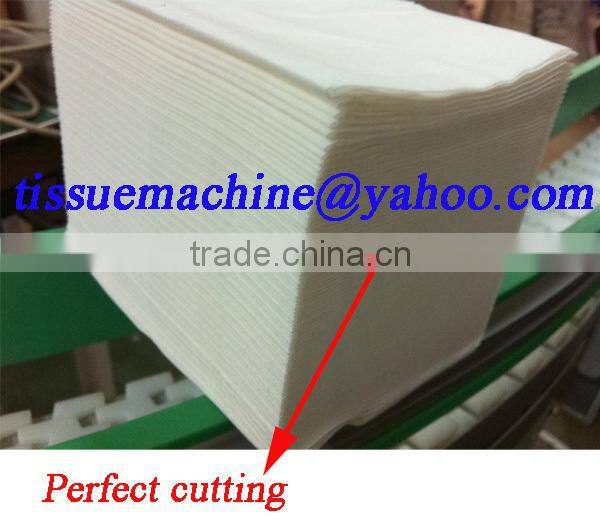

Perfectly cut tissues cut by our PLC Servo Motor Control High Speed Automatic Facial Tissue Log Saw Machine

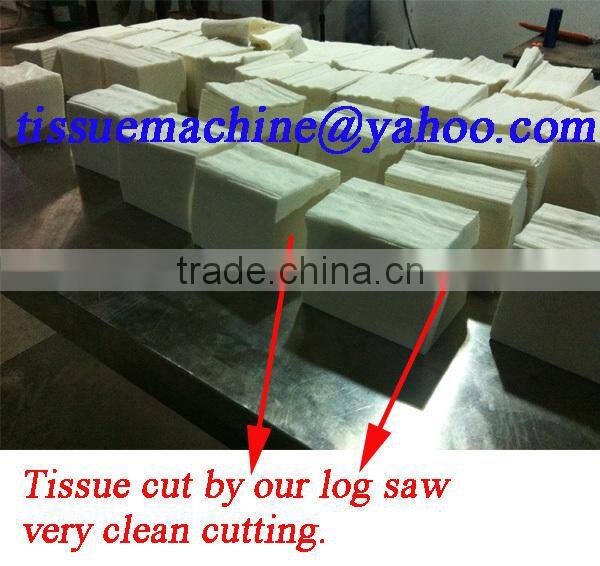

Tissue products cut by our PLC Servo Motor Control High Speed Automatic Facial Tissue Log Saw Machine
* Log Saw Machine Log Saw Machine Log Saw Log Saw Machine Log Saw Machine Machine Log Saw Machine Log Saw Machine Log Saw Machine Log Saw Machine Log Saw Machine
