Specifications
IndustrialTorque External Adjustable Cushion Type Air Screwdriver- Easy to adjust torque.
- Large Torque Range and Low Vibrat

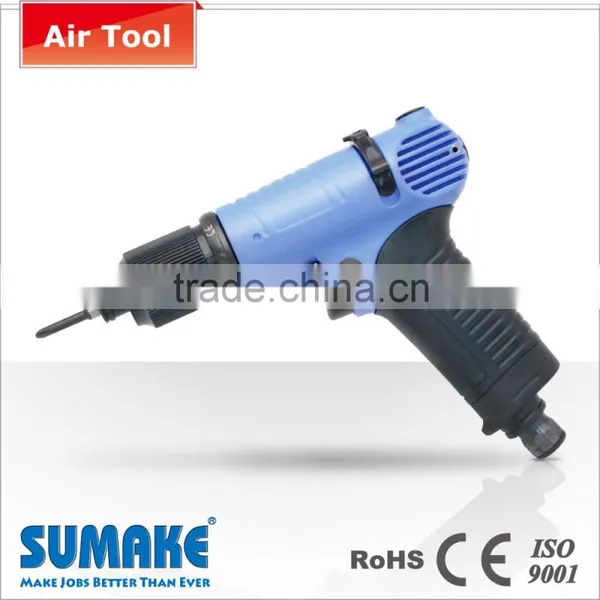

Industrial Torque External Adjustable Cushion Type Air Screwdriver
Sumake shut-off screwdrivers have a large torque-range, highly accurate and low vibration level.Excellent ergonomic design and low noise level. The special design of the clutch combines low reaction forces with a high repeatability of the torque.
It is great for the assembly industry, where threaded fasteners are used.
SUMAKE air screwdriver has following 12 features:
1. Accuracy : SUMAKE provide patent clutch with 3% deviation of torque, assure the best quality.
2. Economic : Wide-ranging torque with many patent and longer life cycle of motor.
3. Delicacy : Combination of art, ergonomics and mechanical design.
4. Technology : Special mechanical structure and patent motor give you low noise, low vibration and high accuracy.
5. Honorary : Award "Excellent Tool" at Japan 2002 Osaka exhibition.
6. Soft resin ergonomic design with newest material : The weight is 25%~44% less than other brand.
7. Speediness 12. Friendly operation 11 . Flexible inlet design feature
Operator can change the bit Easy to switch the direction The air inlet direction can be option for
rapidly by push the bit head. by single hand. assembly line to get flexible space
(APP type only)
8. Trigger auto lock feature 9. Comfort 10. Vent in any direction
World first proprietary auto lock feature Pioneer for dual color grip with 360° vent available.
(APP type only) with the choice of PUSH anti-slide and visional external
or PUSH To Start (to avoid any damage to provide best balance and
on surface and more safety for operator) comfort in operation.
can increase the quality of screwing.
* Air Inlet could be 3 way option
ACPN39 ACPN48
<Small Body> <Standard Body>
-Light Weight
Model No. |
Drive |
Bolt Capacity (mm) |
Free Speed (r.p.m) |
Torque Range Soft Joint (N-m) |
Dimension (Ø xLxH) (mm) |
Air consumption |
Weight (g) |
Noise Level (±3dB) |
Min. Air Hose Bore (I.D.) |
|
cfm |
m³/min |
|||||||||
ACPN39 |
F1/4" |
2.5-5.0 |
1,600 |
0.5-5.0 |
36 x 140 x142 |
10 |
0.28 |
600 |
72 |
5 mm |
ACPN48 |
F1/4" |
3.0-6.0 |
1,700 |
1.0-7.0 |
43 x 165 x 154 |
19 |
0.55 |
870 |
76 |
8 mm |
For More Air Screwdrivers, Please Click HERE!
Features:
♦ Guarantee the highest torque accuracy (±3% standard deviation).
♦ Easy to adjust torque.
♦ Air Motor System: alternation switch system.
♦ Greater Comfort for The Operator (Ergonomic and Soft Grip).
♦ Easy change of valve reverse (right/left) button turn direction can be done.
♦ Large Torque Range and Low Vibration Level: the new stagger rail motion
mechanism allows to obtain the low vibration level and large torque range.
♦ Air inlet could be Three way option .
Sales points/ Focus:
- Quality assurance
- Good after-sales service
- Favorable price
- Great variety of products
- OEM and ODM service provided
