Specifications
Trigger Start Cushion Air Screwdriver* Best balance and easy to trip
* Torque external adjustable
* Low vibration, Low noise

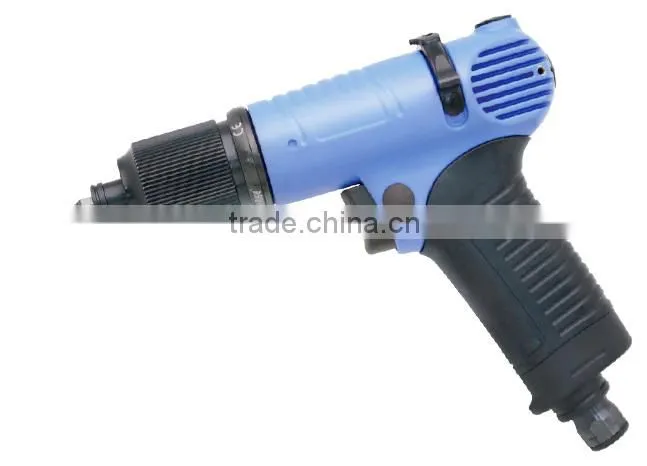

Trigger Start Cushion Air Screwdriver
SUMAKE engaging the design and manufacture of air screwdriver. From the user's point of view to plan the product map.
From the owner's point of view to calculate the efficiency of tool. Furthermore, base on accuracy, environment, technology and quality, SUMAKE owns several patents and awards. An excellent air screwdriver tool can increase not only efficiency but the quality.
SUMAKE air screwdriver has following 12 features:
1. Accuracy : SUMAKE provide patent clutch with 3% deviation of torque, assure the best quality.
2. Economic : Wide-ranging torque with many patent and longer life cycle of motor.
3. Delicacy : Combination of art, ergonomics and mechanical design.
4. Technology : Special mechanical structure and patent motor give you low noise, low vibration and high accuracy.
5. Honorary : Award "Excellent Tool" at Japan 2002 Osaka exhibition.
6. Soft resin ergonomic design with newest material : The weight is 25%~44% less than other brand.
7. Speediness 12. Friendly operation 11 . Flexible inlet design feature
Operator can change the bit Easy to switch the direction The air inlet direction can be option for
rapidly by push the bit head. by single hand. assembly line to get flexible space
(APP type only)
8. Trigger auto lock feature 9. Comfort 10. Vent in any direction
World first proprietary auto lock feature Pioneer for dual color grip with 360° vent available.
(APP type only) with the choice of PUSH anti-slide and visional external
or PUSH To Start (to avoid any damage to provide best balance and
on surface and more safety for operator) comfort in operation.
can increase the quality of screwing.
* Air Inlet could be 3 way option

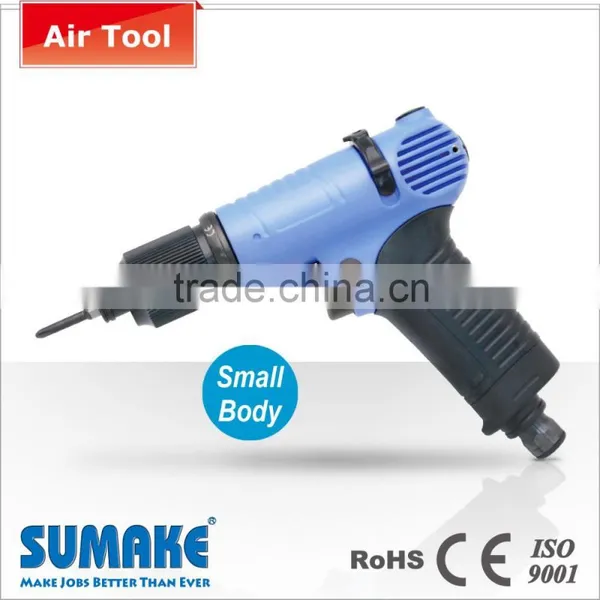

ACPN45 ACPN48
<Small Body> <Standard Body>
-Light Weight
Model No. |
Drive |
Bolt Capacity (mm) |
Free Speed (r.p.m) |
Torque Range Soft Joint (N-m) |
Dimension (Ø xLxH) (mm) |
Air consumption |
Weight (g) |
Noise Level (±3dB) |
Min. Air Hose Bore (I.D.) |
|
cfm |
m³/min |
|||||||||
ACPN45 |
F1/4" |
2.5-6.0 |
750 |
0.5-7.0 |
36 x 140 x142 |
10 |
0.28 |
600 |
72 |
5 mm |
ACPN48 |
F1/4" |
3.0-6.0 |
1,700 |
1.0-7.0 |
43 x 165 x 154 |
19 |
0.55 |
870 |
76 |
8 mm |
For More Air Screwdrivers, Please Click HERE!
Features:
♦ Patent motor: Output power: 30% lower than other brand.
♦ Low weight: All new patent mechanical design and grip material 25-44%
lighter than other brand.
♦ New Aluminum alloy materials and the special rubber grip, the A-series tools
possess better lasting, wear-resisting and comfortable grasp properties.
♦ A series have either the push function or the Push-trigger function
(for avoid the damage of screw surface and increase the safety of operators).
♦ With the professional tri-direction air inlet - upside, under-side , behind-side (optional).
A-series tool makes the space flexible and agile, the user can change the air-inlet
direction as per their need.
♦ Best balance, easy to trip.
♦ Torque external adjustable.
♦ Low vibration, Low noise.
Sales points/ Focus:
- Quality assurance
- Good after-sales service
- Favorable price
- Great variety of products
- OEM and ODM service provided
