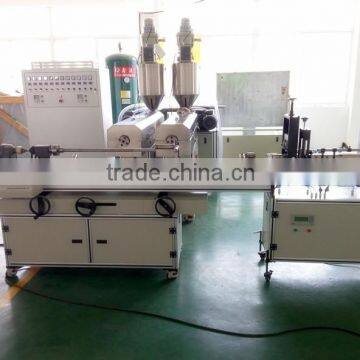

PP Melt Blown Filter Cartridge Making Machine
PP melt blown filter cartridge making machine is used to produce high-quality pp filter. They are widely used both in household and industrial wastewater pretreatment. And the working principle of this equipment is as below:
Two kinds of PP melt blown filter cartridge making machine -----using roots blower as the pressure and using air compressor with air tank have the similar working principle:

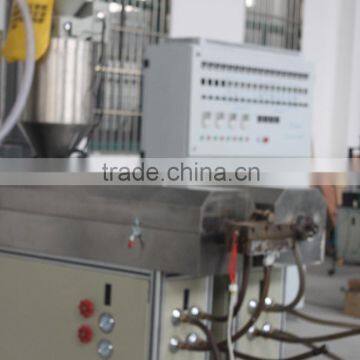

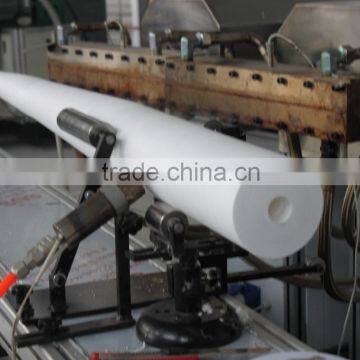

Auto Feeder feeds 100% new drawing class polypropylene into Extruder. Then pp material is melting by heater through Extruder.Roots Blower or Air Compressor and Air Tank blows the air into Air Heater and then the hot air will blow the liquid polypropylene materials through the Mold (with hundreds of small holes in the nozzle), and finally threaded materials arrive at the spindle of Winding Device. Winding Device rotates and forms filter cartridges. Then formed filter cartridges get off the spindle and reach to Auto Cutter. Auto Cutter cuts them according to the required length upon customers’ requirement.

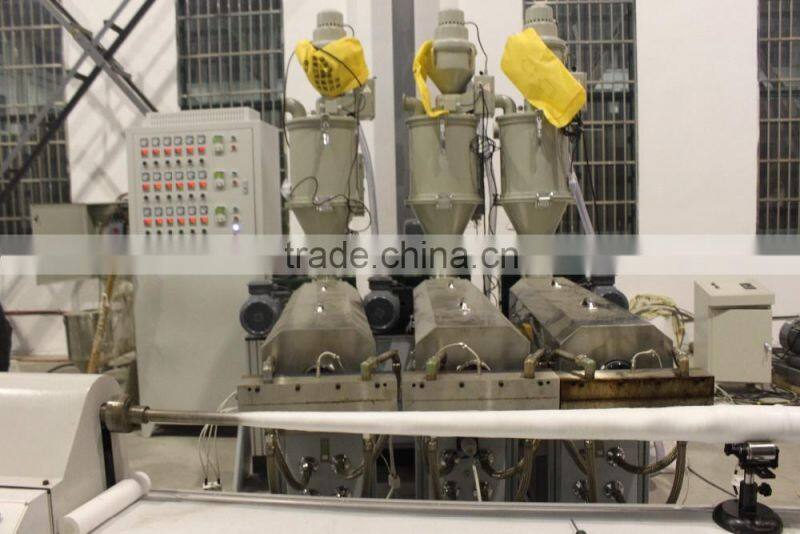

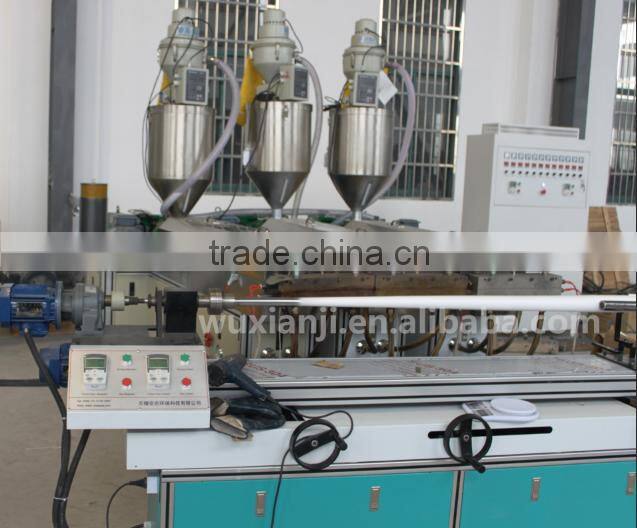

Performance Parameters of the 3 Extruders Machine(UAC-3)
Name |
PP melt blown filter cartridge |
Mode |
UAC-3 |
Total Installed Power |
55KW |
Actual Running Power |
35~40KW |
Output |
145~208pcs/hour 3500~5000pcs/day (refer to 10” filters) |
Raw Material |
100% New Polypropylene |
Internal Diameter |
28mm default (free to customize) |
Outer Diameter |
38~120mm (free to customize) |
Length |
5",10",20",30",...(free to customize) |
Filter Precision |
1μm,3μm,5μm,8μm,10μm,13μm,15μm |
Surface of Filter |
Smooth Surface (extra tool) Orange Peel Surface (extra tool) Micro-grooving Surface(extra tool) Groove Surface (groving machine) Dotted Surface (extra tool) Logo on Surface (carving machine) |
Default Voltage |
3 Phase 380V or; 1 Phase 220V If you need other voltage, extra $500 shall be charged. |
Machine Weight |
Around 4T |
Suppying Free Spare Parts
Heating loop inside of extruders |
8pcs |
Sensor |
5sets |
Heating pipe inside of air heater |
2pcs |
Bearing |
2pcs |
Temperature controller |
3pcs |
Blade |
20pcs |
Button |
2 each |
Heating Gun |
1 set |
Porcelain bead and line |
some |
Solid-state relay |
2pcs |
|
Water-oil separator for screw compressor |
1 set |
Machine-oil filter for screw compressor |
1 set |
Air filter for screw compressor |
1 set |
Insulated Pipe |
2pcs |
Needles |
40pcs |
Insulated asbestos |
some |
Filter Screen/Net |
1 set |
|
|
Applications:
- Applyied to drinking water filtration in daily life .
- Ultra-pure water equipment security systems
- Medicine filtration
- Chemical liquids filtration
- Electroplating petroleum filtration
- Food industry liquid filtration
Features:
- The superior of polypropylene filter media ensure its high efficiency in the inner layer.
- The thermal bonded micro-fiber construction make sure that there is no fiber releasing in the process.
- High dirt holding capacity.
- Available in a wide selection of filter rating from 1µm to 150µm
- 100% PP content help it have excellent corrosion-resistance.

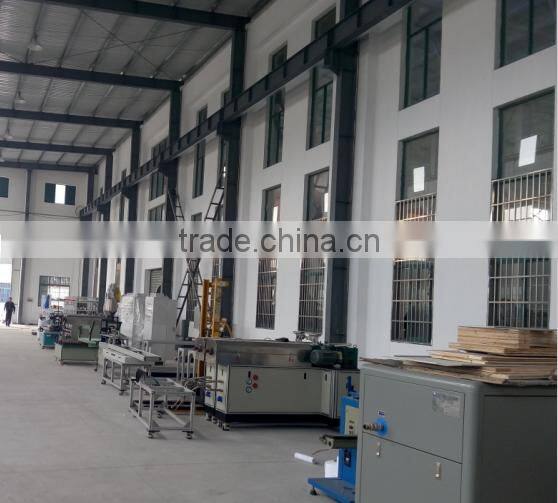

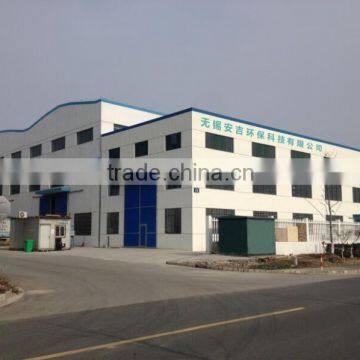

Our Company:
ANGE is a professional manufacturer producing pp melt blown/spun filter making machine. We have independent research department to design and we excel at making new products according to clients’ special requirement.
Our clients are full of the world: India, Iran, Egypt, Taiwan, Ukraine, Turkey, Pakistan, and Thailand…
Mr. Xia- with 20 years’ experience in machine design and especially good in plastic extruding industry
Mr. Wen- with 15 years’ experience in filter making factory and can make all the filters you want
Mr. Chao- with 30 year's experience in designing PP string wound filter cartridge making machines
CE certificate:
After-sales Service:
We provide 1 year warranty;and our engineers will be available to overseas.
We will also provide unlimited long-term technical guide by email or skype.
We could train your delegates(1~3person) for 7~14 days until your colleagues have known how to operate by themselves. We are responsible for eating.
One of our engineers will go to our factory to install and teach your operators 7~10 days. Your company shall prepare air tickets(go and back) &hotel &eating when he is working and total salary is $1000.
We suggest customers study at our factory firstly, and then our engineer goes to your factory if you still demand.
Filter cartridge is widely used in water treatment
1 Electronic, Power Industries: Pure Water, Gas, Electroplating Liquid, Presswork etc
2 Chemical & Petrochemical Industries: Solvent, Paint, Magnetism Paint, Detergent, Liquid wax etc
3 Medicine & Pharmaceutical: Hospital Water, Injection and Oral Liquid
4 Food Industry: Food, Drink, Drinking Water, Alcohol etc.
Our Products:
New products: pp filter without inner screw

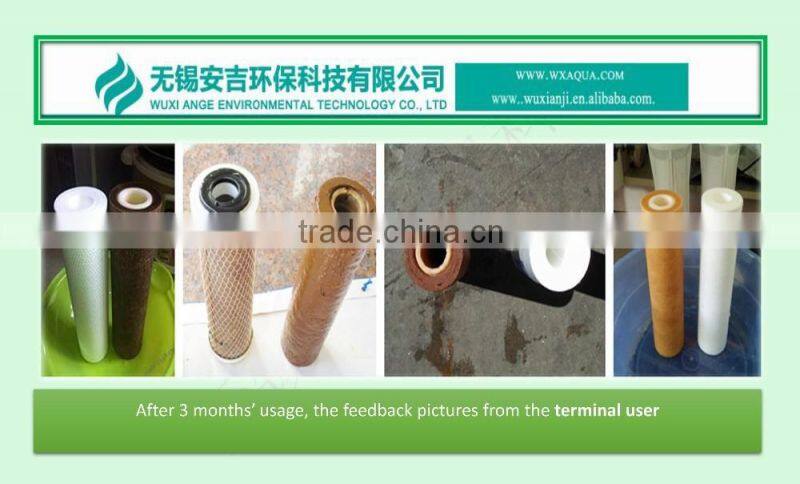

Feedback of pp meltr blown filter cartridge
