Product description

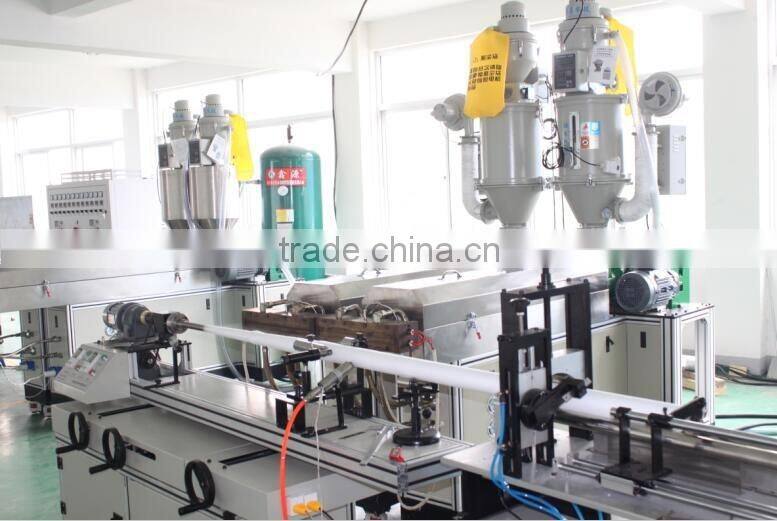

PP melt blown/meltblown/spun filter cartridge making machine/ production line is a machine that used to produce pp melt blown/meltblown/spun filter cartridges which are widely used both in household water purifier and industrial wastewater pretreatment. And the principle of this machine is as below:

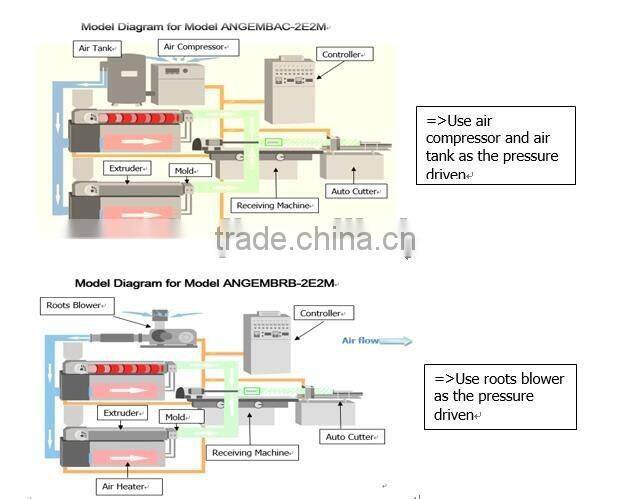

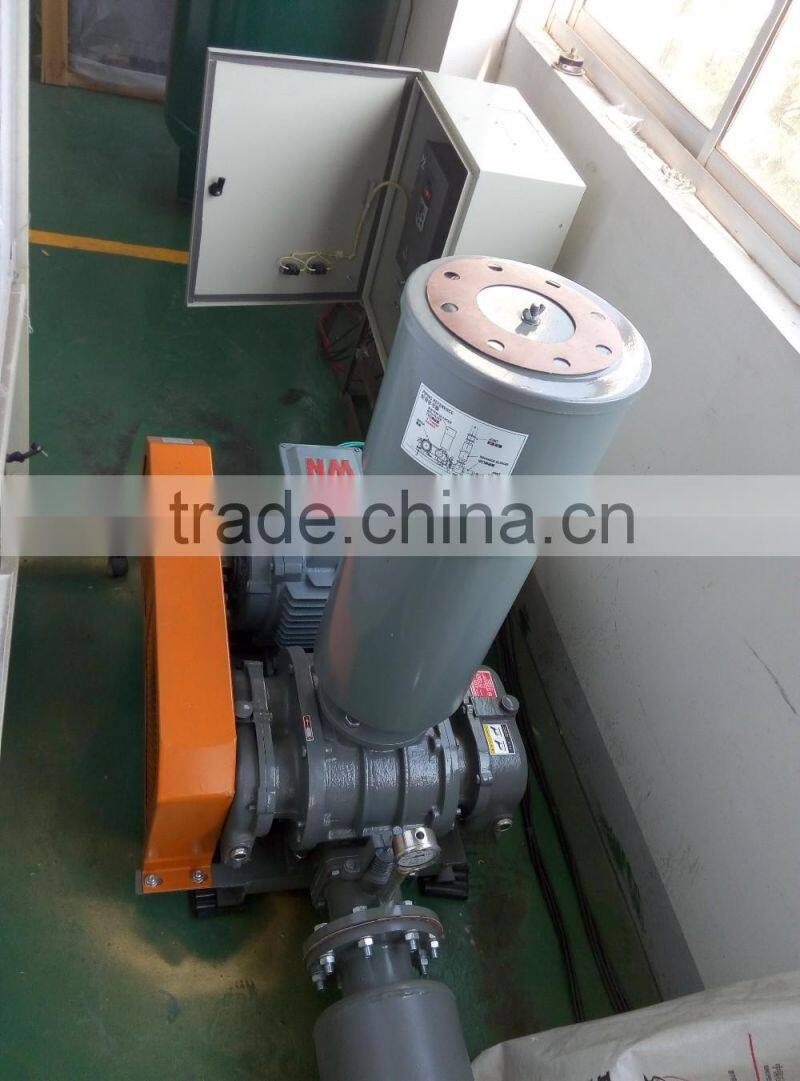

There are two kinds of PP melt blown/meltblown/spun filter cartridge making machine/ production line, one is adopting roots blower as the pressure –driven system; the other is using air compressor with air tank. Whatever both principle is similar as below:

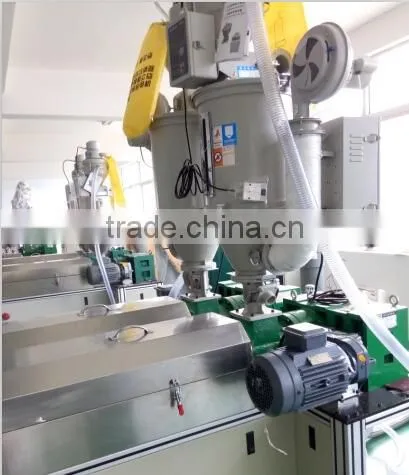

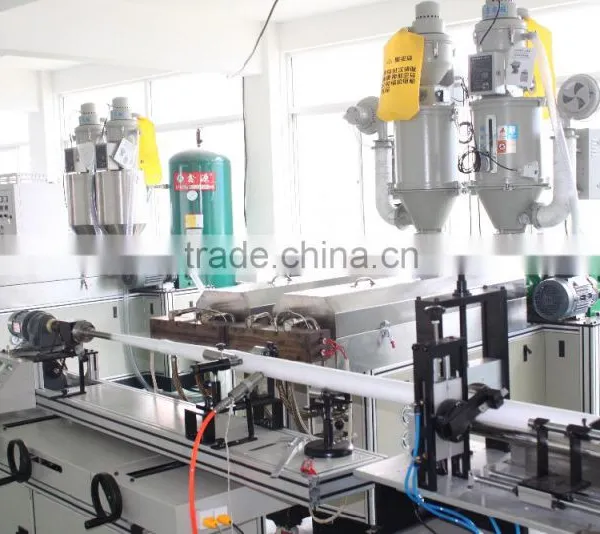

Auto Feeder feeds 100% new drawing class polypropylene into Extruder. Then pp materials are melt by heating through Extruder. Roots Blower or Air Compressor and Air Tank blows the air into Air Heaterand then the heated air will blow the liquid melted polypropylene materials through the Nozzle Heads(with hundreds of small holes in the mold), and finally threaded materials arrive at the spindle ofWinding Device. Winding Device rotates and forms filter cartridges. Then formed pp melt blown filter get off the spindle and reach to Auto Cutter. Auto Cutter cuts them according to the required length upon customers’ requirement.

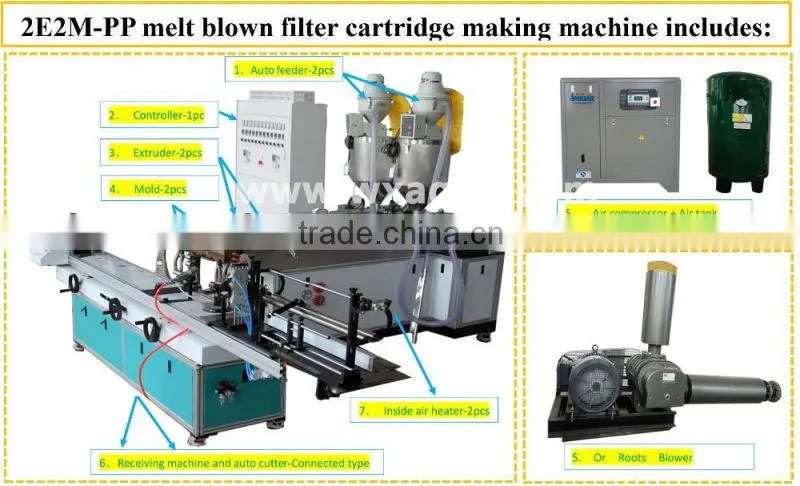

2E2M PP melt blown filter making machine includes:
- 2 Extruders;
- 2 Molds;
- 2 Auto feeders;
- 2 Air Heaters;

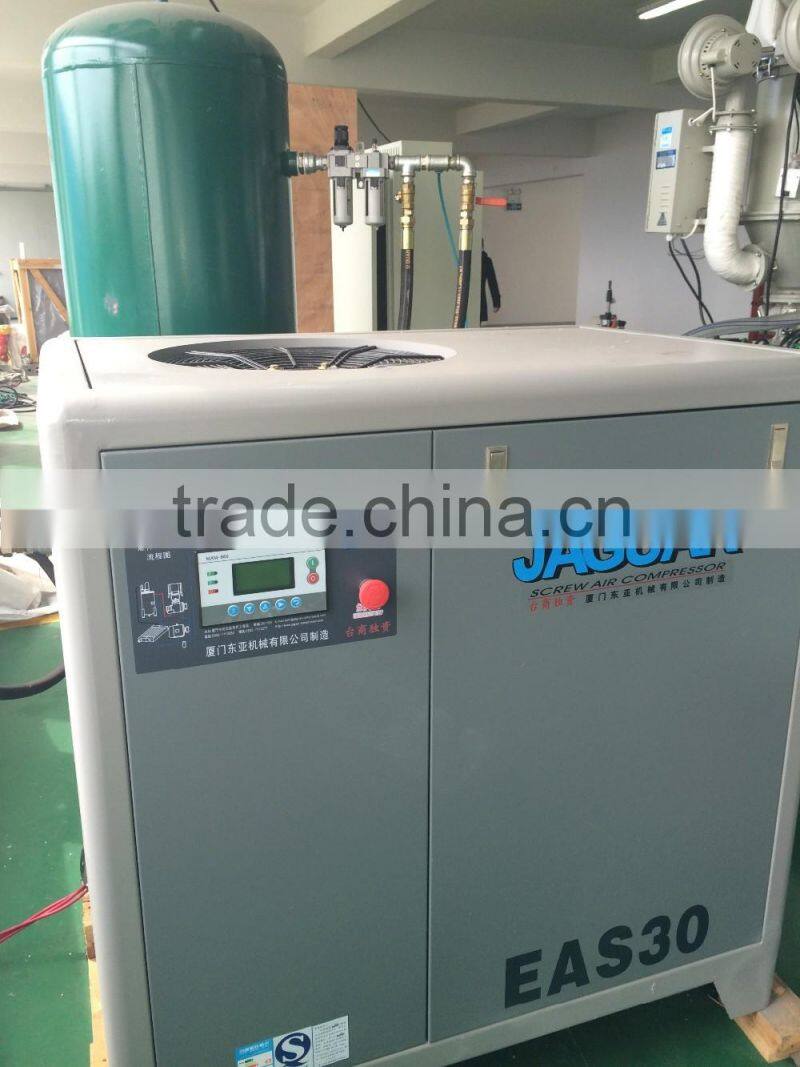

- 1 Air Compressor with power;
- 1 Air Tank;
- 1 Receiving Machine& Auto Center;
- 1 Small Controller;
- 1 Cleaning Machine for cleaning the mold.
AS WELL AS
- 1 Grooving Machine: make grooves on surface of PP cartridge (10" length of PP cartridge)
- 1 Carving Machine: make dots or keyholes on surface of PP cartridge
- 1 Dryer Blower: make orange peel on surface of PP cartridge
Principal:
Auto Feeder feeds 100% new drawing class polypropylene into Extruder. Then pp materials are melt by heating through Extruder. Roots Blower orAir Compressor and Air Tankblowsthe air into Air Heater and then the heated air will blow the liquid melted polypropylene materials through theNozzle Heads (with hundreds of small holes in the mold), and finally threaded materials arrive at the spindle of Winding Device. Winding Device rotates and forms filter cartridges. Then formed filter cartridges get off the spindle and reach to Auto Cutter.Auto Cuttercuts them according to the required length upon customers’ requirement.
Parameter
Name |
PP melt blown filter making machine/ PP spun filter making machine |
Mode |
UAC-2 |
Total Installed Power |
64 KW |
Actual Running Power |
35-45 KW |
Output |
3500~4800pcs/day (refer to 10” filters) |
Raw Material |
100% New Polypropylene |
Internal Diameter |
28mm default (free to customize) |
Outer Diameter |
38~120mm (free to customize) |
Length |
5",10",20",30",...(free to customize) |
Filter Precision |
0-20 micron |
Filter Surface |
Smooth Surface (extra tool) Orange Peel Surface (extra tool) Micro-grooving Surface(extra tool) Groove Surface (grooving machine) Dotted Surface (extra tool) Logo on Surface (carving machine) |
Default Voltage |
3 Phase 380V or; 1 Phase 220V If you need other voltage, extra $500 shall be charged. |
Machine Weight |
2.6-3.5T |
Operation Area |
50m2(L*W)*3m (H) or above |
Container Size |
8~10 wooden boxes and use 20’’ container |
Spare Parts We Supply For Free:
Payment & Delivery Terms
Payment: 40% T/T in advance, 60% T/T balance before shipment.
Delivery Date: 20~25days workdays after deposit
Packing: each packed in wooden case, 8~10 boxes, 20 feet container for 1 set of PP melt blown filter making machine.
Warranty: 2 YEARs
If non-human cause of quality problems occurs, we provide EXW item free parts
If this cause by incorrect operations, we won’t provide free replacement
Wuxi ANGE Environmental Technology Company Limited is a professional manufacturer specializing in full automatic PP melt blown filter cartridge making machine. We excel at PP Melt Blown Filter Making Machine, PP string wound filter making machine, CTO active carbon block filter making machine and PP non woven fabric making machine with 20 years’ experience in machine design and filter making factory. We value the quality and the cost for clients very much, as well as providing unlimited long-term technical guide by email or Skype. It is our supreme honor to have clients in our factory for a visit. Customers around the world are always welcome with extreme hospitality.

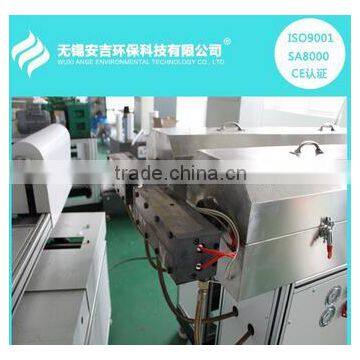

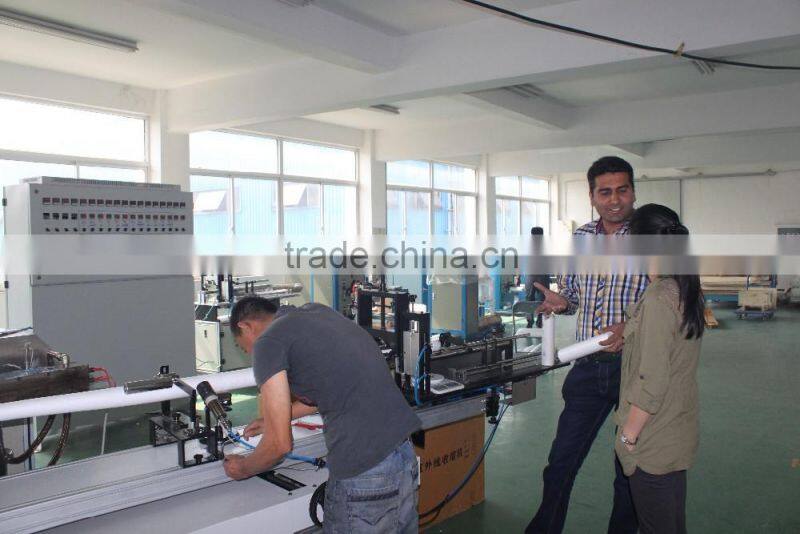

Factory:

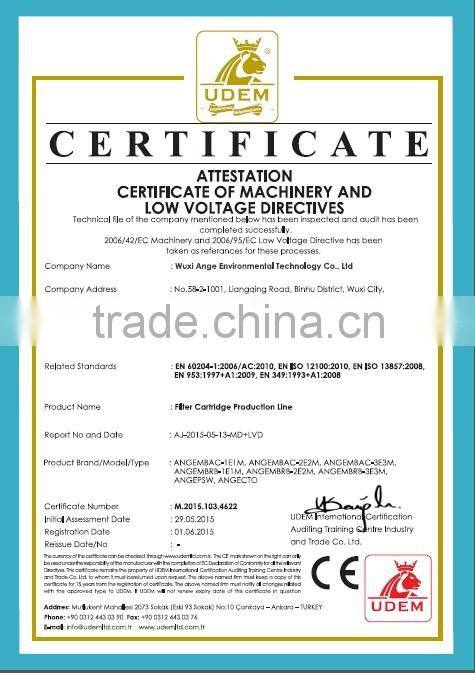

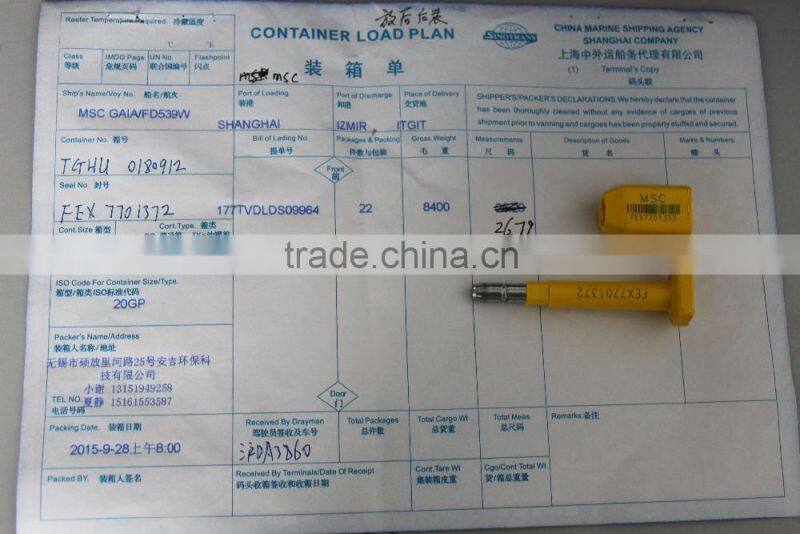

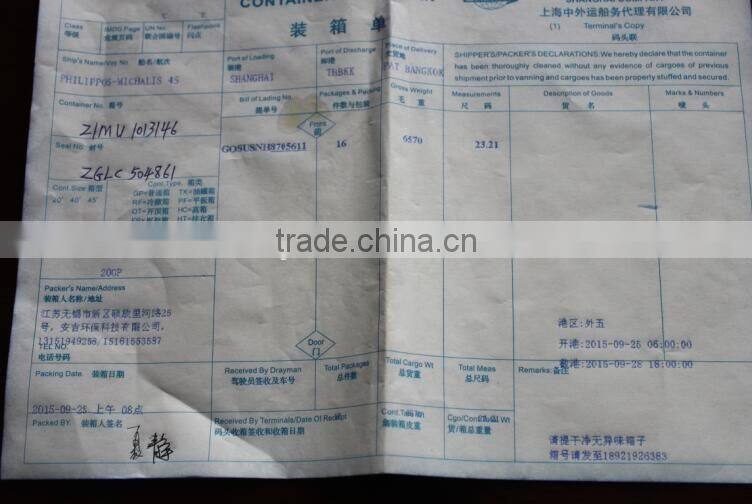

Export documents:
Aquatech Shanghai:
