Square or Rectangle Duct Production Auto-line V

Product Application

Introduction：

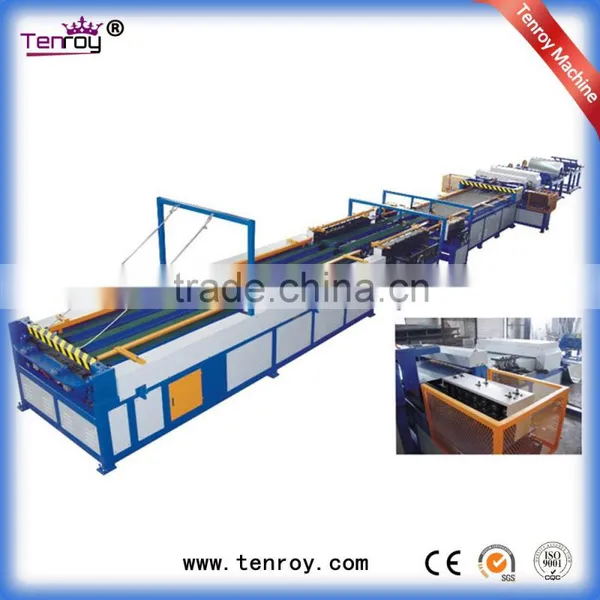

Duct production line V is composed of feeding rack, leveling embossing, hydraulic punch sharp opening and square opening, hydraulic shearing machine, displacement type joint angle lock forming machine, manipulator grabbing assumed feeding plate form, double linked total plate flange machine and dual linked single bone forming machine, servo feeding plate form and TDF hydraulic folding machine. The electrical control part adopts full computer control, bending servo feeding, positioning precision. Especially when process square shape opening pipeline, it can ensure the bending precision. The max feeding speed is 16m/min and the length tolerance is +-0.5mm. You can choose this production line to process TDF total plate flange and angle steel flange ventilating duct. The exchange is simple and rapid.

Basic equipments：

1. Electric feeding rack 2pcs (3000*1900*950*2).
2. Leveling, beading, punch sharp and square opening die, shearing machine.
3. Displacement type joint angle reel bone machine.
4. An electric feeding platform.
5. Double linkage flange machine.
6. A double linkage single bone(angle iron flange machine) machine.
7. A servo feeding plate form.
8. Hydraulic bending machine.
9. A set of computer control system and software production.
10. An electrical cabinet.

Features：

1. This auto line V covers small area with linear processing.
2. High production efficiency.
3. Can make a small section of square shape ventilation duct.
4. The minimum section machining can be as small as 200x200mm.

Specifications：

Main Features

1. Sizing material can be directly with the computer with the use of plasma cutting ingenuity.
2. a. C or S plug-in bone shear angle can be used with the C bone and S bone reel machines.
3. b. Various TDF flange connection method to locate the shear angle, and TDF flange machine, folding machine with the used of TDF.
