Help CenterVentilating Duct Auto Air Duct Production Line II in Sheet Metal Industrial
Related Products
-
Rectangle and Squre Air Duct Production Line SixUS$ 100 - 10,000MOQ: 1 Set -
Rectangle Squre Air Duct Auto Production Line IIUS$ 100 - 10,000MOQ: 1 Set
-
Galvanzied Sheet Aluminum Flexible Duct Forming MachineUS$ 100 - 10,000MOQ: 1 Set
-
High Efficient Duct Production Line 5 in Good DesignUS$ 100 - 10,000MOQ: 1 Set
-
Hot Selling Rectangular Square Air Duct Production LineUS$ 100 - 10,000MOQ: 1 Set
Product Application

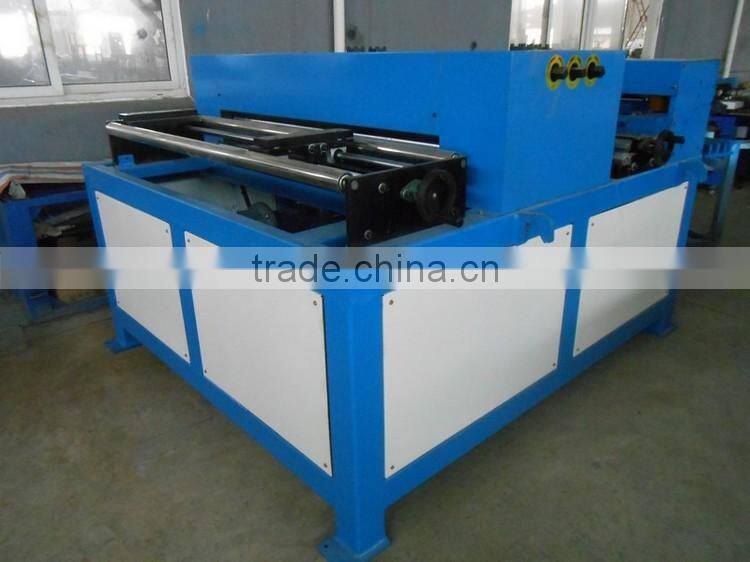

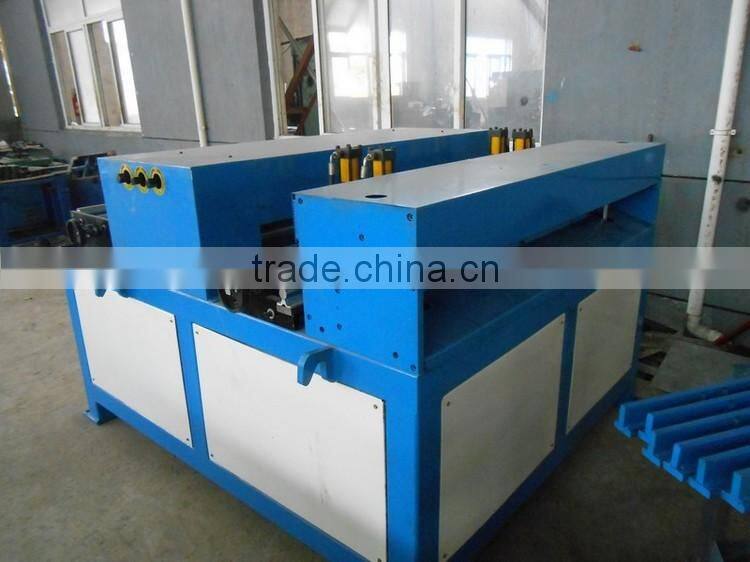

Line II consists of a metal frame, leveling and beading machine, punch and punch square oil press, hydraulic shears.
The control part adopts automatic computer control, the control system is a closed-loop feedback system, the production of precision and stability are obviously improved. The maximum operation speed is 16m/min. Length error of +-0.5mm, +-0.8mm, diagonal error.
Line II can meet the wind tube sheet material, mainly TDF (flange) material, Synthesis of the wind pipe production line and flange machine, bite machine, plate folding machine, plus the corner will be able to produce high quality standard corresponding wind pipe.
Basic equipments:
1. Electric feeding rack 1pc (2620*1850*1450mm)
2. Leveling grooving device group
3. Hydraulic angle cutting machine four sets including moulds
4. Hydraulic shearing machine
5. Computer and controller with a set of software production
Main Features
1. Sizing material can be directly with the computer with the use of plasma cutting ingenuity.
2. a. C or S plug-in bone shear angle can be used with the C bone and S bone reel machines.
3. b. Various TDF flange connection method to locate the shear angle, and TDF flange machine, folding machine with the used of TDF.
1.Six years warranty for the whole machine!
2. Damaged parts can be replaced free of charge in the warranty period!
3. Accept the unconditional return for any quality problem that cause failure application of the machine!

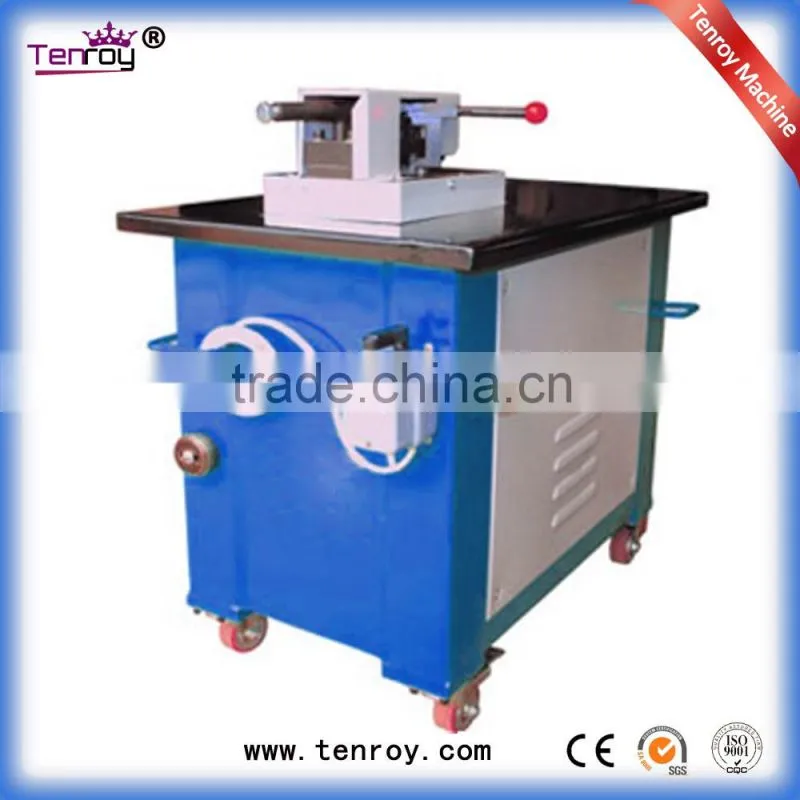

Lock forming machine
91.8% Response Rate

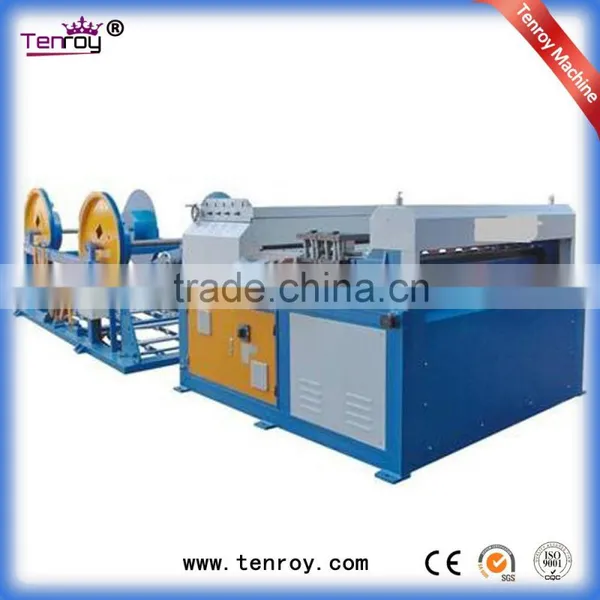

TDF folding machine
91.8% Response Rate

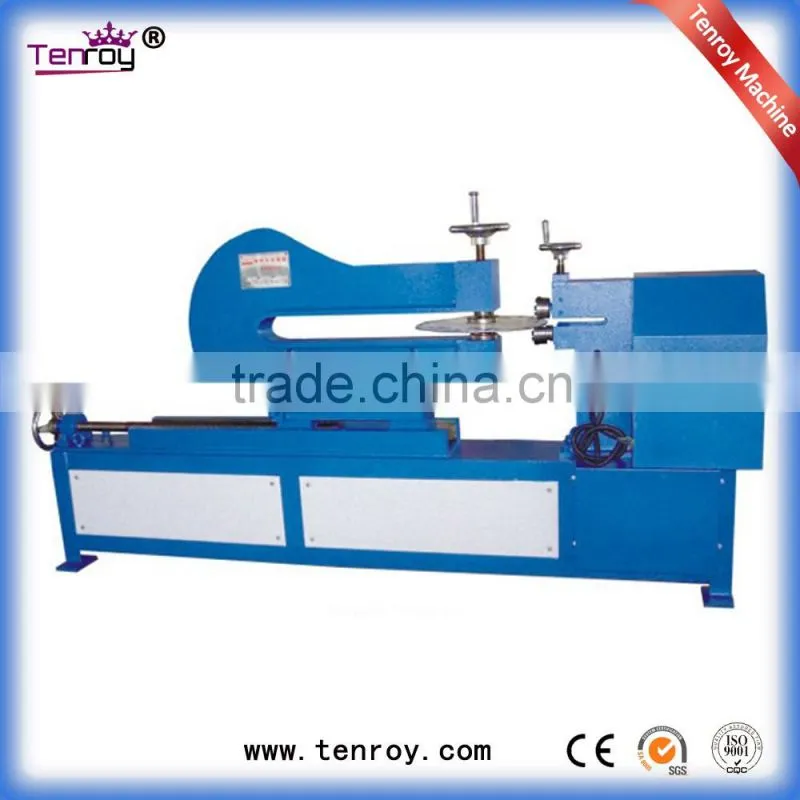

Rolling Slitting Machine
