Introduction:

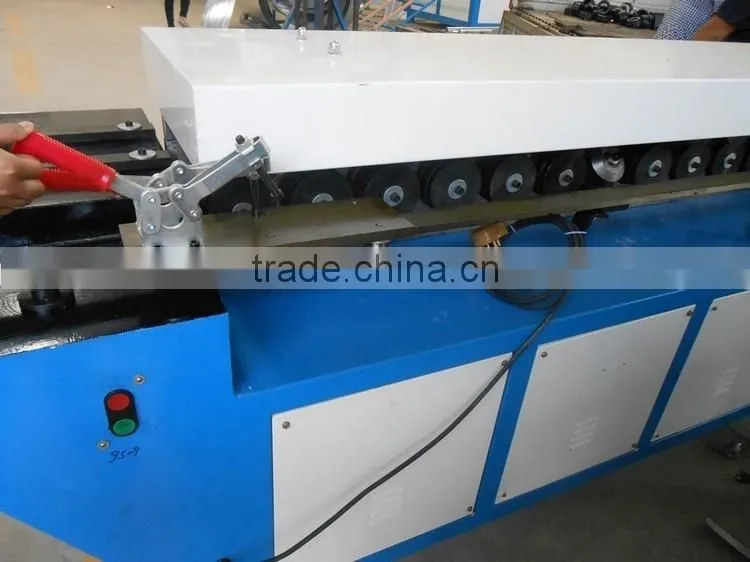

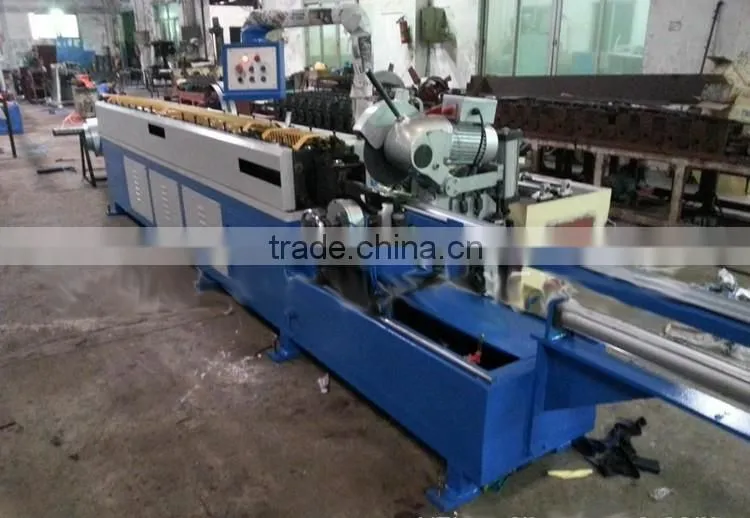

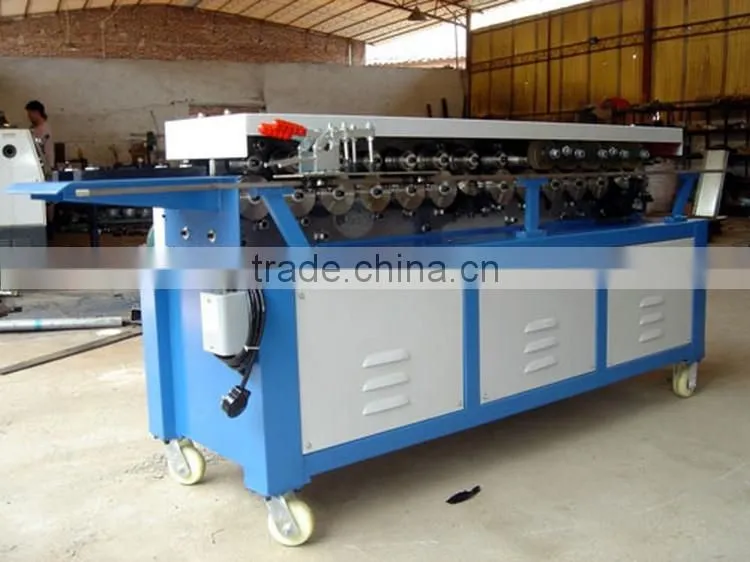

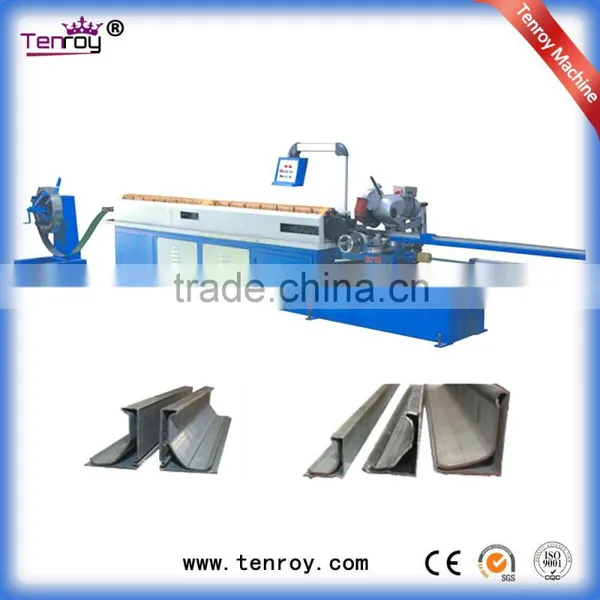

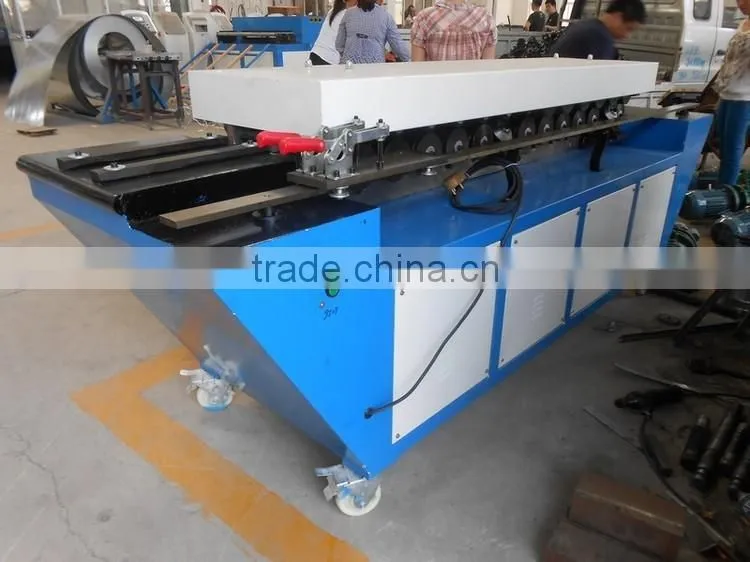

TDC unit is one of the two universal flange making systems in the world. It can save time and material drastically with its well-seal, strong and durable joint structure. So it is specially suitable for producing a duct with a large sectional area. Today many famous buildings in the world utilize this kind of structure in the ventilation system such as the American Kennedy Space Center, Guangzhou CITIC Plaza etc. The unit consists of a feeding frame, main forming machine and a shearing unit, which includes grinder and hydraulic shearing unit. The hydraulic shearing unit makes fixed cutting available with very little burr, and may be operated automatically with a maximum work speed of 6 m/min. It is divided into four types: T-20、T-30、T-35、T-40 with their corresponding duct corner T-20DC、T-30DC and T-40DC.TDC made by SBKJ may match and produce all the ducts in the DW144 standard, and has passed the HVAC PW/TMI(1987) pressure test, which is a special test for the intensity and sealed condition of a duct.

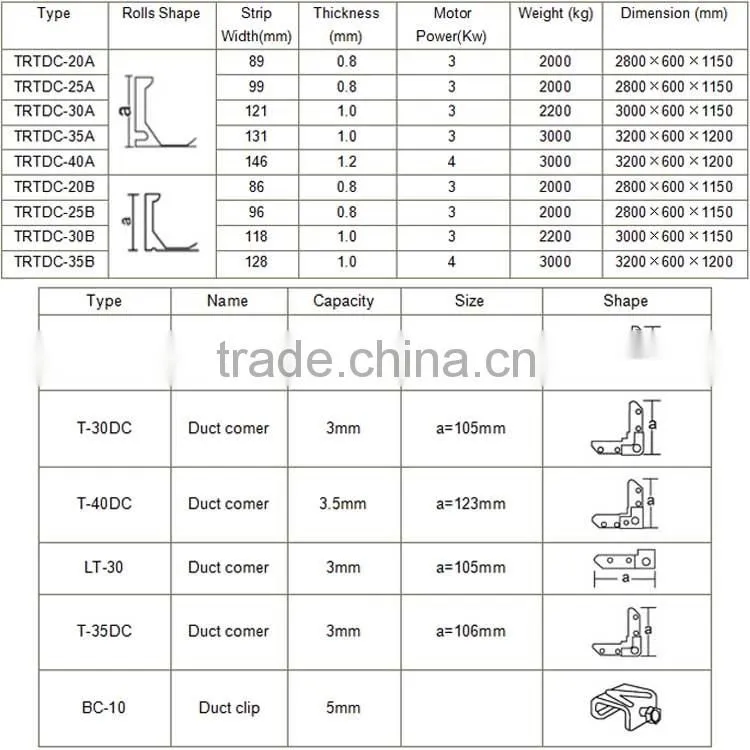

Specifications:

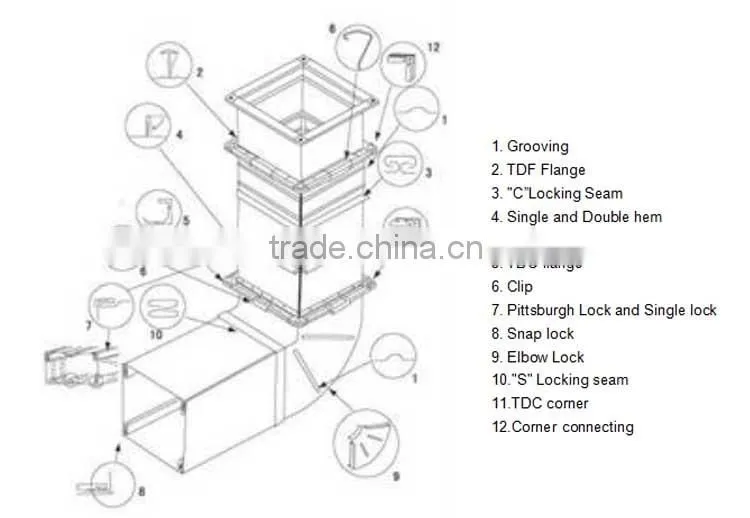

Application In Duct Making Industry
Main Features
1. It enables the production of rectangular flange standardized, mass and mechanization.
2. Time-saving, material saving, high efficiency, good sealing, sturdy connections and durable, etc.
3. Especially suitable for processing ventilation ducts with large cross-sectional area.
☆ Quantity
MOQ:Accept small order, big order and mix order.
More quantity, More discount.
☆ Price
Good quality, competitive price.
The more you order, the lower price you will get.
☆ Delivery
Fast delivery time: Prepare the goods within 20 working days.
Drop shipping: Door to door service are available.
☆ Shipment & Payment
Shipment: By sea,by air,by express, or we can delivery them as you required.
Payment: L/C, T/T, PayPal, Western Union are available.
☆ Competitive Advantages
Quality guaranteed and most reasonable price.
Small order is acceptable.
Prompt delivery.
Perfect after-sale service.
OEM is acceptable.
☆ After Sales Service
One year warranty for the whole machine!
Damaged parts can be replaced free of charge in the warranty period!
Accept the unconditional return for any quality problem that cause failure application of the machine!
Packaging

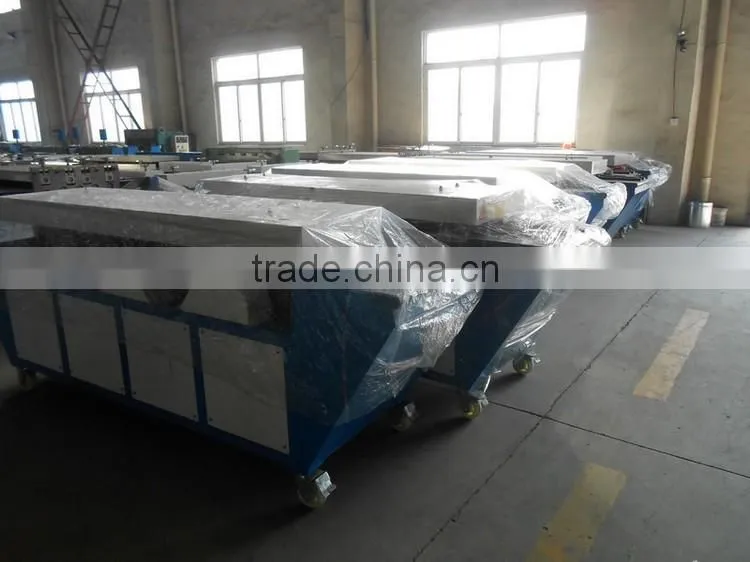

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
