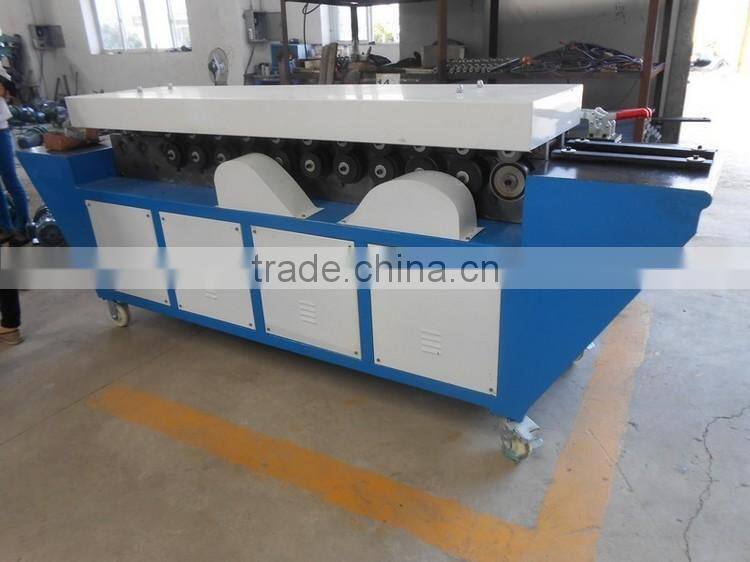

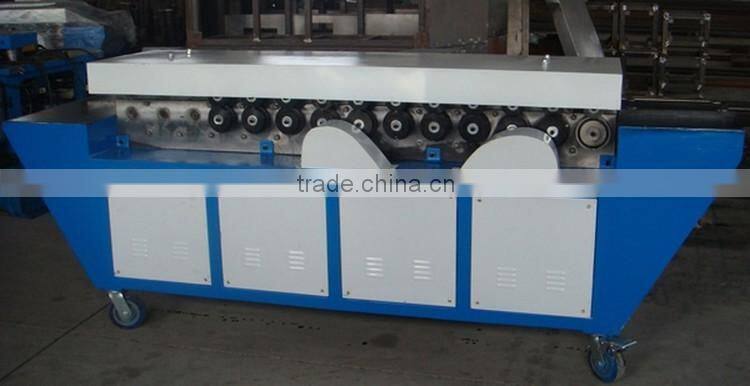

TDF Flange Forming Machine for Metal Sheet Processing

Introduction:

Our company’s TDF machine is the special equipment to process various kinds of square and rectangular ventilation pipelines. It has strong function and can satisfy the bone shape connecting in wind pipe manufacturing. It has models of T-12 and T-15. The processing thickness: 0.5-1.2mm; 0.8-1.5mm. All the axes and clamping rollers on this machine are manufactured by high quality steel and advanced industrial heat treatment technology which will greatly increase the wear resistance life of the parts.

Specifications:

Main Features

1. This machine is main equipment for TDF flange forming, especially for large-scale, standardized and automatic production.
2. Both flanges and L-shaped clamp can be produced synchronously.
3. Material feed automatically while sheets processed.
4. All rollers and bearings adopt excellent steel processed by advanced heat treatment technology (quenching), which enhances wear-resistance for the machine.

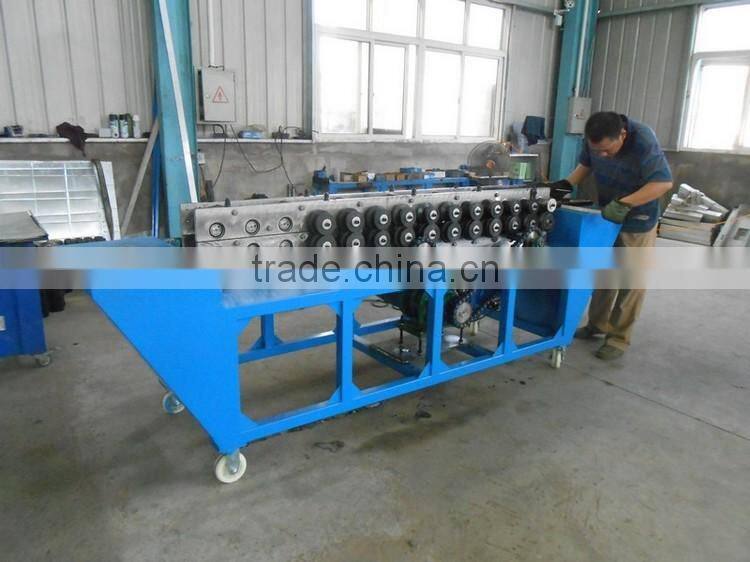

5. 14 Groups of rollers form a stable and beautiful shape.
6. Pressure bearings are being used to avoid the side wear.

Packaging

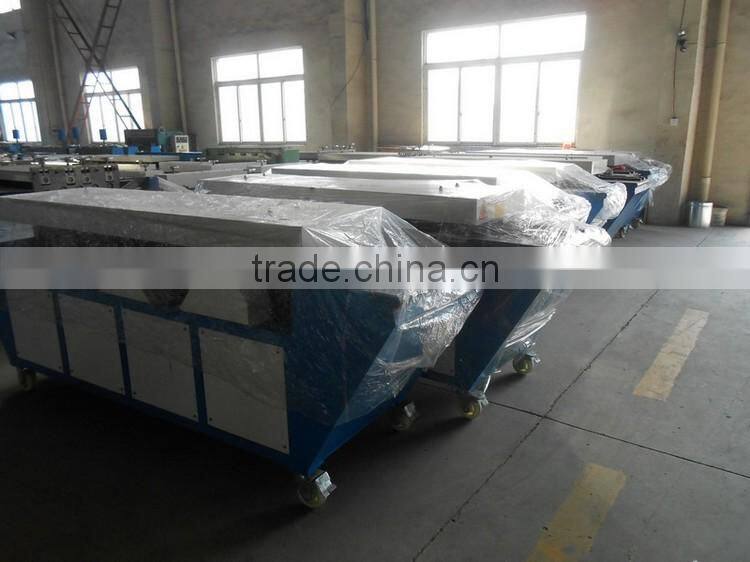

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
