Home > Products > Wood Cylinder CNC Engraver > CC-M1325AG high loading capacity machine router

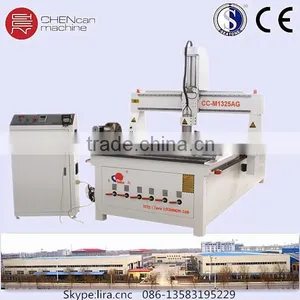

CC-M1325AG high loading capacity machine router
- 40 Set / Sets per Month
- qingdao port
- T/T Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | chencan | Model Number: | CC-M1325BG | Voltage: | AC380V/50Hz or AC220V/60Hz |
Dimension(L*W*H): | 1440*3040*300mm | Weight: | 2000KG | Certification: | CE,ISO |
Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
3D wood working machine with rotary device to do wood cylinder work make chairs
Model: CC-M1325AG ( wide using range and simple operation )
With roatry device to do wood cylinder work,make chairs or etc.
Working video link: http://youtu.be/oO5_3tmBavA or http://youtu.be/meQj1vOrU6w
Detailed Features:
- Lathe bed is welded with seamless steel structure and is processed by high temperature tempering treatment
- Working size:1300*2500*200mm.Rotary device:diameter 125mm with length 1500mm.
- Air-cooling spindle(water cooled spindle optional)
- Fuling inverter(or Delta)
- Adopting advanced DSP system with USB interface, operated with the handle
- Vacuum system :T-slot Vacuum table with 6 vacuum zones with water-pump.
- Three axes adopt Taiwan Hiwin high precision square guide rail, X and Y axes adopt rack and pinion transmission, Z axis adopts Germany-made ball screw,with high precision and longevity.
- Good duct-collect function and Considerate Oil plate to keep the table always clean.
- Perfect lubricating system makes maintenance much easier
- Along with the machine, some spare parts, work fixtures and tools will be packed into the tool box.
- Whole machine packed with fumigation-free IPPC wooden case.
Applicable materials
Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.
Processing effect:
It can manufacture the following effects: engraving, cutting, milling ,drilling, relief, shadow and so on.
Technical Parameter:
Model | CC-M1325AG
|
Lathe body | Seamless welded steel structure structure |
X Y Z effective working area | 1300*2500*200mm,Rotary device 125mm*1500mm length |
Working table | Vacuum table with T-slot |
Precision Machining | 0.05mm/1000mm |
Motion Speed | 35m/min |
Spindle Rotate Speed | 0-18000r/min, variable speed |
Resolution | 0.05 mm |
Spindle power rate | 3.5kw air-cooling Spindle/3kw water-cooling spindle/etc |
Inverter | Fuling/LG/Delta |
X,Y structure | Rack and pinion transmission, HIWIN 20 square guide rail |
Z structure | Taiwan-made ball screw |
Driver | Yako |
Guide Rail | HIWIN—20mm |
Working Voltage | AC220V/50Hz 1-phase/3 phase 380V/3 phase |
Operating system | DSP control system |
Software | Type 3, ArtCam,UG,Powermill |
Cooling mode | Air-cooling |
Command | G code,HPGL,U00,mmg,plt |
Diameter of cutter | φ3.175-φ12 |
Service and Guarantee |
Technical supports and suggestions before you order a machine according to your work piece. |
Professional instruction for the operation of the machine. |
One year warranty, we will provide the consumable parts at cost price after the warranty period. |
Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications. |
24-hour technical support by email or calling. |
Shandong Chencan Machinery Incorporated Company
ADD: West Mingjia Road, Qihe Economic Development Zone, Shandong Province, China
Tel: 0086-531-88078568 Fax: 0086-531-88078968
Website: www.
INDUSTRY PROFILE
Built 1998,16 years manufacturer and aboard after-sale service experience of CNC Machinery.
All products have obtained the Euro CE and ISO 9001:2008 Quality Certificate.
FAQ:
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 7-22 days after receipt of advance payment.
Package:Export High-quality Standard Fumigation-free Wooden Case for wood cnc router
Lira Zhou
Export manager
Skype:c
QQ:1028875298
TradeManager ID:cn220191925
Viber/WhatsApp ID:0086-13583195229
Facebook/Linkin/Wechat ID:Lira Zhou.
Other machine details:
1325 wood working machine /4 axis Moulder /Plasma cut machine / Simple ATC / Stone engrave machine /
3D scanner / 3D 8 spindle machine/
For more videos,please contact us or check:
/channel/UCfmka-Peo9RQxG1PDkhrgxg/feed
If you interested in any model,please send us inquiry,Details info with machine picture will send to you sooner!
