Specifications
Single rotary cylinder engraving machineWarranty is one year
the best quality and after-sale service

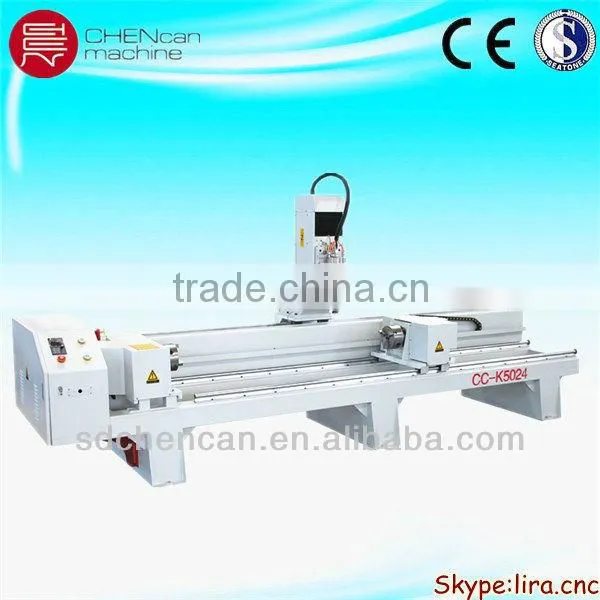

cylinder engraving cnc router with rotary axis
model CC-K5024
Detailed Features:
1. With 4 axises,Single Rotary, which can do any cylinder's engraving and cutting, milling, the processed cylinder diameter
can be up to 500mm, length can be 2400mm.
2. With Scanner or designed photo, it can do any 3D Engraving
3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
4.Has the rotary which is used for engraving cylinder workpiece.
5.Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
6.Has the function of re-carving after break point and power failure.

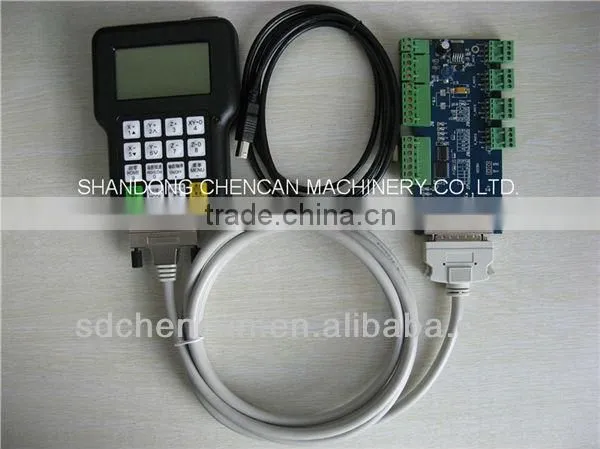

7. Adopting advanced DSP system with USB connection, operated with the handle
8, high quality four axis cylinder wood rotary
Technical Specifications
Description |
Parameter |
Optional parameter |
4th rotary axis max diameter |
300mm |
250mm, 200mm |
Machine dimension |
1800mm*1450*1450mm |
|
Resolution |
0.01mm |
|
Lathe structure |
Seamless welded steel structure |
|
X,Y structure |
Rack and pinion transmission, Hiwin square guide rail |
|
Z structure |
Imported ball screw |
|
Max. idling speed |
35m/min |
|
Spindle motor power |
3.0 KW |
4.5kw |
Spindle rotate speed |
0-24000r/min |
|
Working voltage |
AC380V/50Hz |
220v |
Working mode |
Stepper |
|
Cooling mode |
Water-cooling |
Air-cooling |
Dust-collect function |
Yes |
|
Work-holding |
By clamp |
Applicable industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Processing effect:
Our router may carve various kinds of shade vulture, relief, craft and gift.
Standard exported Wooden case
Welcome to visit our factory:
cylinder engraving cnc router with rotary axis with model CC-K5024
in the exhibition
certifications
ANY QUESTIONS ,PLEASE CONTACT:
We pay attention to any detail of our Every set CNC Router Machine,
we provide the best Abroad Service for Every Customer !
