Specifications
1.high quality woodworking cnc equipment router2. air-cooling spindle
3. cylinder material available
4. easy operation
wood working cnc equipment machines for sale with a rotary device do cylinder work

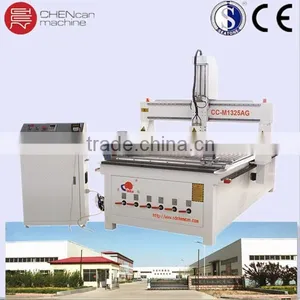

CC-M1325AG
Working Area:1300*2500*300M;Rotary Diameter and Length is up to your requirement under 300MM
The complete "turn key" wood working engraver on the market. absolutely everything needed for operation:

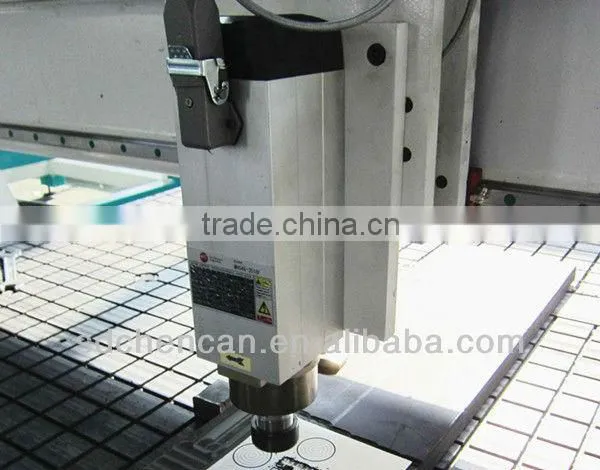

1.3.5KW Air-cooling Large power frequency water cooling spindle

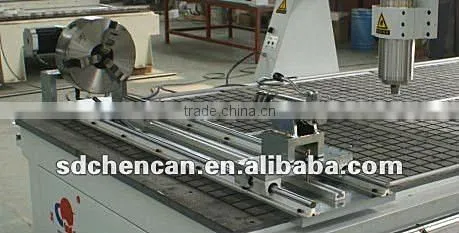

2.rotary is used for engraving cylinder work piece. It adopts chuck and thimble structure, which can make sure that the working machine has a high precision.
3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed. Lath body is fabticated by ourselves to make sure good quality and low price
4. Three axes adopt imported high precision circle orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Germany-made ball screw,with high precision and long life time.

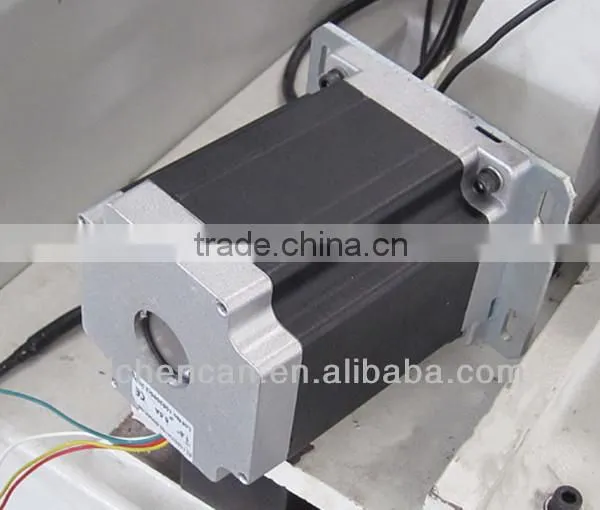

5. Adopting high-torque stepper motor and driver, with steady working capability and high positioning precision.

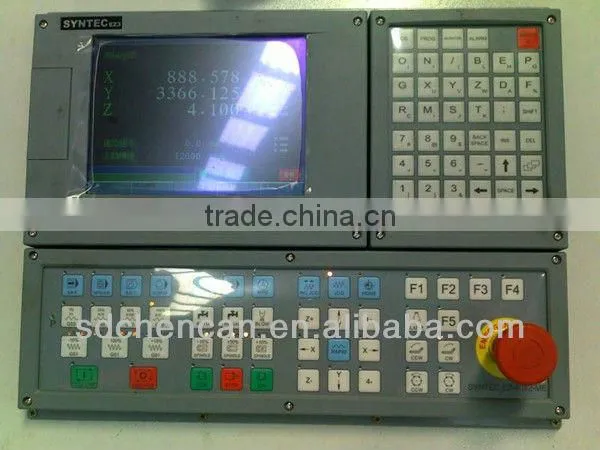

6. Operation system adopting advanced DSP control system.
8. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.

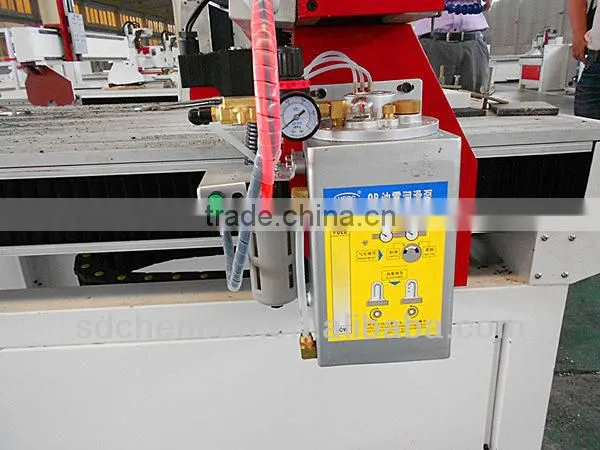

9,Auto oil-injection system makes the maintenance more convenient.
sample:
notes
- Price changes according to the quantity and different spare parts. Packing, Payment and Delivery time also affected.
- l We provide software freely and the warranty time is one year.CE & ISO Certificate is available.And we can make CIQ and C.I. according to your import needs.
- Trust us, we can provide cnc routers with the best quality and aftersale service and timely delivery.
- Our engineer is online for 24-hours at your service.
- If you are not sure which machine is more suitable for your work, please kindly tell us
the details of your material and what you want to make, so we can recommend you a right machine.
Package:
PARAMETERS
NO. |
Functions |
|
Parameter |
1 |
Traveling size |
X traveling size |
1300mm |
Y traveling size |
2500mm |
||
Z traveling size |
300mm |
||
2 |
Table size |
|
14400 x 3040 mm |
3 |
Accuracy |
Working accuracy |
±0.05mm |
Repositioning accuracy |
±0.05mm |
||
4 |
Structure |
Lathe body |
Thick square tube |
X,Y,Z structure |
X,Y rack and pinion ;Z ball screw |
||
5 |
Speed |
Max. working speed |
35m/min |
6 |
Spindle |
Spindle power |
3.0KW / 4.5kw |
Spindle speed |
24000r/min |
||
7 |
Working mode |
|
Stepper |
8 |
Working voltage |
|
AC380V/50Hz |
9 |
Working command |
|
G code, HPGL, UOO, MMG,PLT |
10 |
Operating system |
|
DSP handle |
11 |
Cooling mode |
|
water-cooling(optional: air-cooling) |
12 |
Dust-collect function |
|
Yes |
13 |
Diameter of cutters |
|
φ3.175-φ12.7mm |
14 |
Clamping mode |
|
By suction(optional) |
certification:

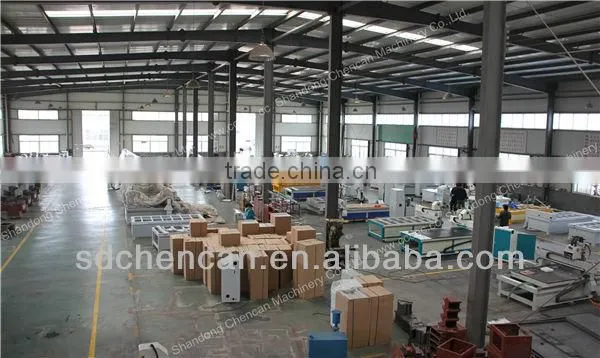

factory:
ANY QUESTIONS,please contact:
