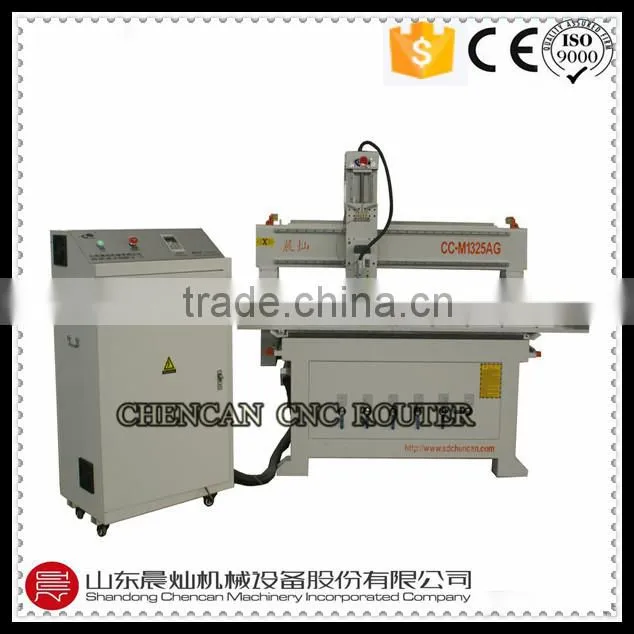

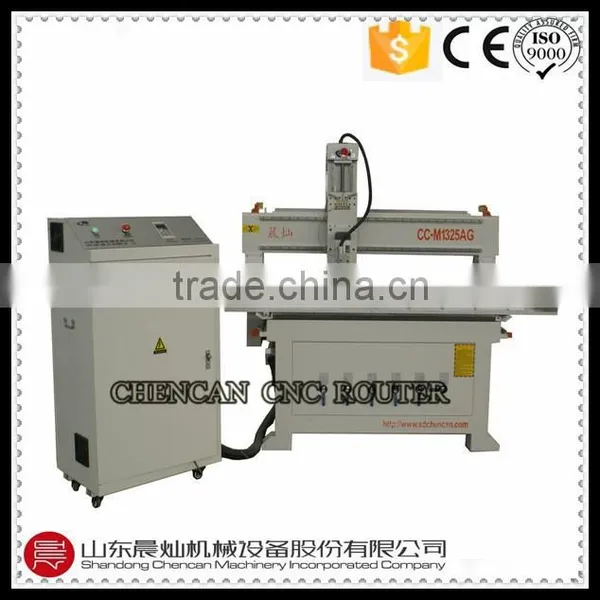

| Multi Function Plain and Round Woodworking Machine CC-M1325AG |
|---|
|
| Product Features | |
|---|---|
| 1. | Whole machine is welded with thick seamless steel structure; Processed by high temperature tempering treatment and vibration stress relief (VSR) to reduce residual stress; Ensure that the stability is excellent, not easy to be deformed. |
| 2. | China air spindle with big power, which have good stability and high speed. |
| 3. | Vacuum table with T slot, can fix the work piece by suctioin and clampls. Attractive and durable, easier to operation, also can save your time. |
| 4. | X and Y axis is transmitted by big module helical/diagonal rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission. |
| 5. | Well compatibility: CAD/CAM designing software, such as type3/castmate/wentai/powermill/alphacam/UG8, etc. |
| 6. | This machine has the function of re-carving after break point or power failure and it can estimate the processing time. |

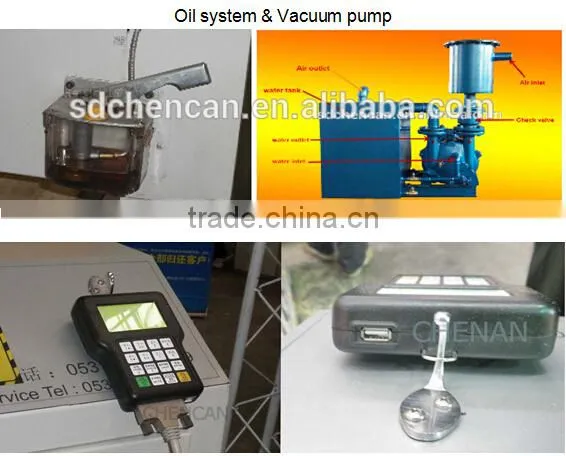

| 7. | Manual/automatic oil-injection system allows the machine maintenance mush easier. |
| 8. | DSP control system which with USB connection operated with the handle, convenient operation. |
| 9. | High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance. |
| 10. | We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs. |
| 11. | DSP control system which with USD connection operated with the handle, convenient operation. |
| 12. | Along with the machine, some spare parts, work fixtures and tools will be packed into the tool box. |
| 13. | Whole machine will be wrapped with cling plastic to avoide rusting during shipping, and then packed into fumigation-free IPPC wooden case. |

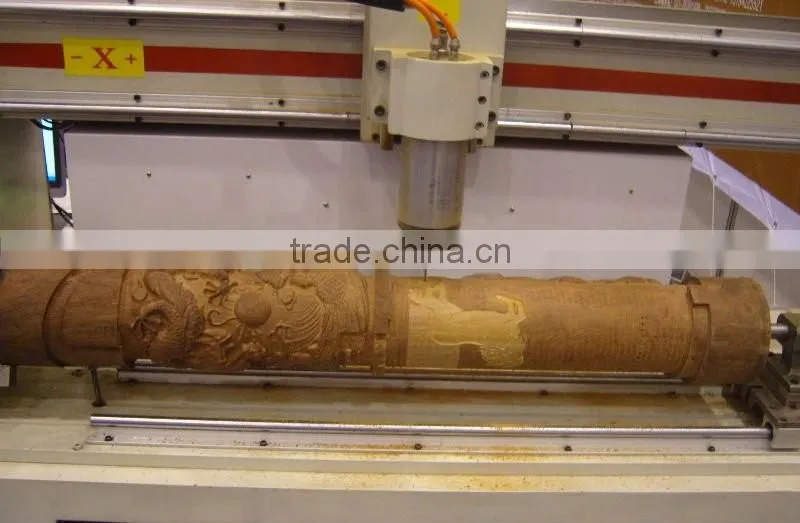

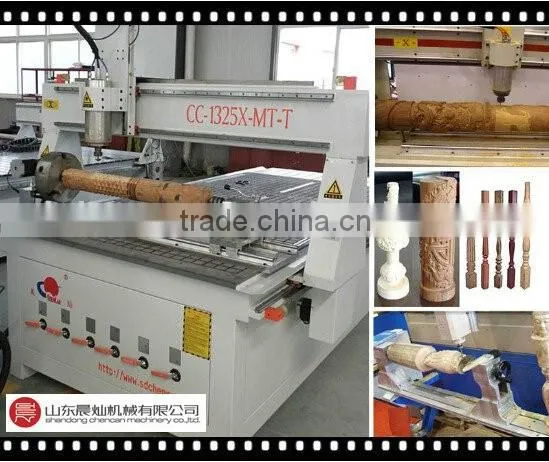

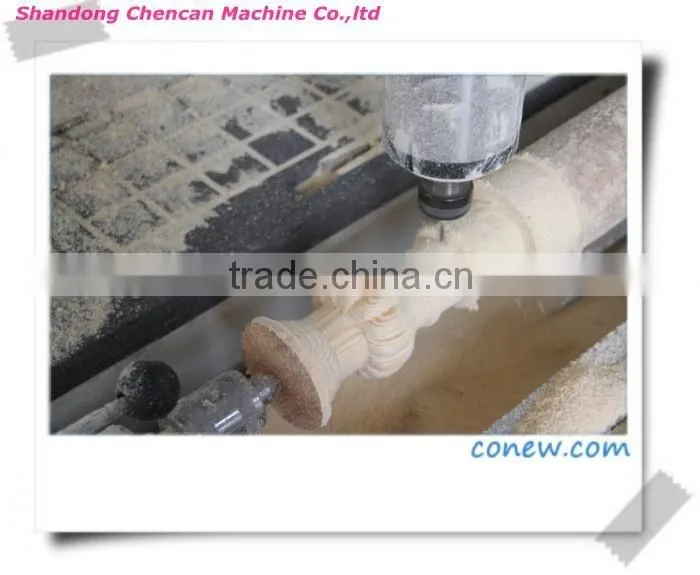

| 14. | Mobile rotary axis, which can be used for cylinderical or round materials. |
| 15. | Vacuum system with 5.5kw, make the operation more easier. |
| Technical Parameters | |
|---|---|
| X Y working area | 1300*2500mm |
| Z working area | 200mm |
| Precision | 0.01mm |
| Rotary axis diameter | 125mm, 200mm or bigger optional |
| Max processing speed | 30m/min |
| Spindle | air 3.5kw spindle |
| Working mode | 118 big stepper motor |
| Operating system | Beijing DSP system |
| Cooling mode | Air-cooling |
| Fixing | By sunction, with 5.5kw pump |
| Ball screw | Germany/Taiwan ball screw, 2505 |
| Guide rail | Square guide rail, 25mm |

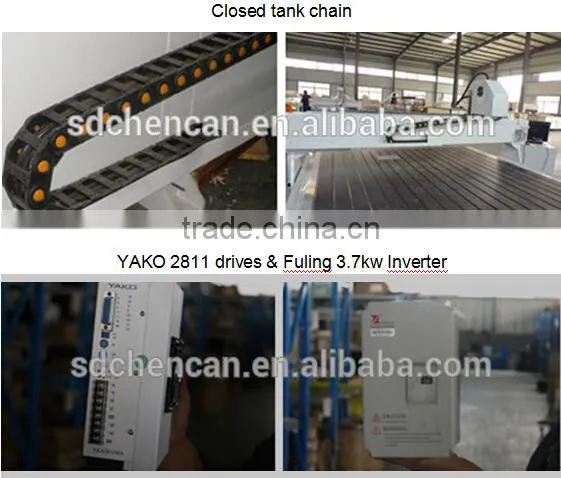

| Driver | YAKO 2811 |
| Inverter | 3.7kw Fuling |
| Table surface | T slot & vacuum table |
| Frame | Welded structure |
| Spindle rotating speed | 0-18000r/min |
| Power supply | AC220V/50-60Hz or 380V/50-60HZ |
| Command | G code, HPGL, U00, mmg, plt |
| Diameter of cutter | 3.175-12.7mm |
| Standard sizes (X*Y axis) | 1500*3000mm 2000*3000mm 3000*4000mm |
| Options |
1. Added rotary axis 2. Servo system 3. Automatic oil-injection system 4. Higher gantry . 5. NC Studio sytem 6.Water-cooled spindles 7. ATC function etc. |

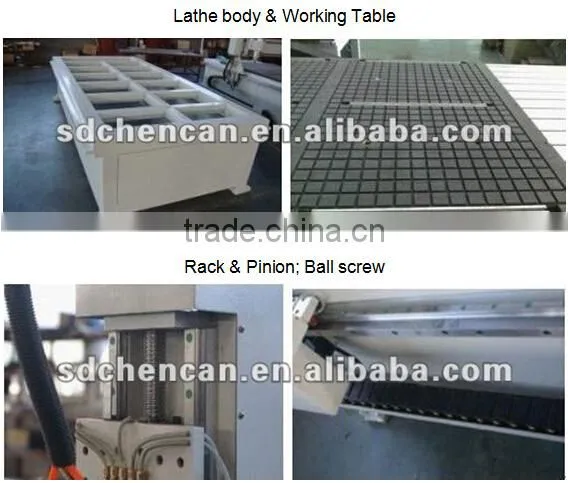

| Main Parts |
|---|
|
|
|
| Application | |
|---|---|
Applicable materials |
Wood, Aluminum board, MDF, PVC, plastic, density board, wave board, acrylic, crystal, light marble and other nometal materials and so on. |
| Applicable industries |
1. Wood processing: process of various furniture such as doo, windows, cabinet, craft, wooden door, screen and so on. 2. Advertisement: engraving nd cutting various labels and number plate. 3. Art craft: engraving characters of any languages and graphics on gifts and souvenirs. |
Processing effect |
Engraving, cutting, milling, drilling, relief, shadow, enchasement and so on. |

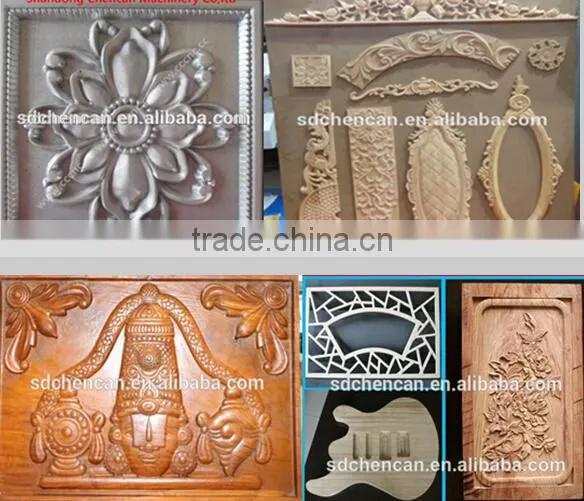

| Samples | |
|
| |
| |
| Related Machines |
|---|
| |
| FAQ |
|---|
| 1. I never use this kind of machine before, is it easy to learn? |
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance. |
| 2. If the machine has problems, what can you do to help? |
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed. |
| 3. How does it work? |
Under CNC Machining, machine tools function through numerical control. A computer program is customized for an object and the machines are programmed with CNC machining language (called G-code) that essentially controls all features like feed rate, coordination, location and speeds. With CNC machining, the computer can control exact positioning and velocity. |
| 4. How could I know if this machine is suitable for me? |
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided. |
| Service and Guarantee |
|---|
1. Technical supports and suggestions before you order a machine according to your work piece. 2. Professional instruction for the operation of the machine. 3. One year warranty, we will provide the consumable parts at cost price after the warranty period. 4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications. 5. 24-hour technical support by email or calling. |
Part Replacement |
Customers have to send the broken parts to us within one week to our factory address: West Mingjia Road, Qihe Economic Development Zone, Shandong Province. We will check and send you the new one within one week. 1. Customer has to bear the cost of returning the broken parts. 2. If the broken parts is not man-made damaged, we will afford the cost of the new parts and its freight cost. |

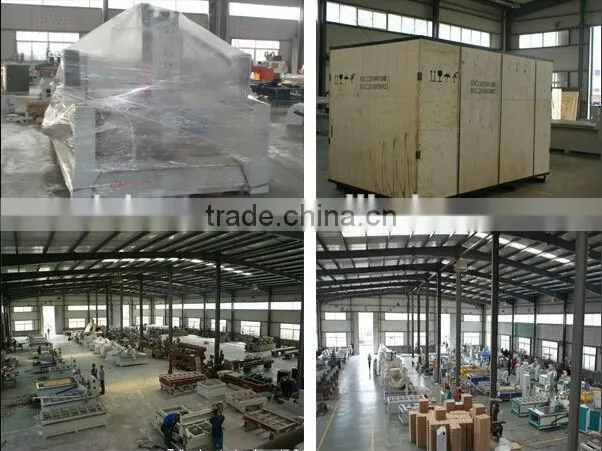

| Package&Factory |
|---|
|
|
