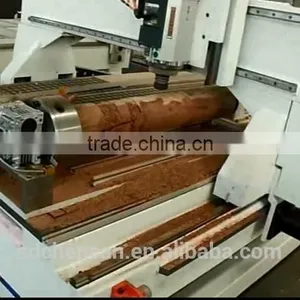

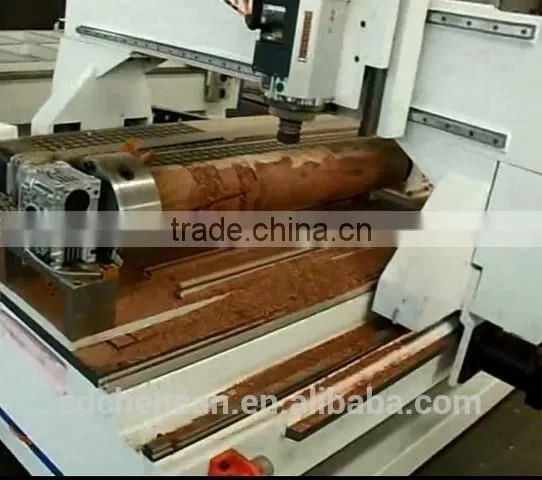

3D wood working machine with rotary device to do wood cylinder work make chairs
Model: CC-M1325AG ( wide using range and simple operation )
With roatry device to do wood cylinder work,make chairs or etc.
Detailed Features:
- Lathe bed is welded with seamless steel structure and is processed by high temperature tempering treatment
- Working size:1300*2500*200mm.Rotary device:diameter 125mm with length 1500mm.
- Air-cooling spindle(water cooled spindle optional)
- Fuling inverter(or Delta)
- Adopting advanced DSP system with USB interface, operated with the handle
- Vacuum system :T-slot Vacuum table with 6 vacuum zones with water-pump.
- Three axes adopt Taiwan Hiwin high precision square guide rail, X and Y axes adopt rack and pinion transmission, Z axis adopts Germany-made ball screw,
- Has the function of re-carving after break point and power failure.
- Along with the machine, some spare parts, work fixtures and tools will be packed into the tool box.
- Whole machine packed with fumigation-free IPPC wooden case.
Applicable materials
Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.
Processing effect:
It can manufacture the following effects: engraving, cutting, milling ,drilling, relief, shadow and so on.
Technical Parameter:
Model |
CC-M1325AG
|
Lathe body |
Seamless welded steel structure structure |
X Y Z effective working area |
1300*2500*200mm,Rotary device 125mm*1500mm length |
Working table |
Vacuum table with T-slot |
Precision Machining |
0.05mm/1000mm |
Motion Speed |
35m/min |
Spindle Rotate Speed |
0-18000r/min, variable speed |
Resolution |
0.05 mm |
Spindle power rate |
3.5kw air-cooling Spindle/3kw water-cooling spindle/etc |
Inverter |
Fuling/LG/Delta |
X,Y structure |
Rack and pinion transmission, HIWIN 20 square guide rail |
Z structure |
Taiwan-made ball screw |
Driver |
Yako |
Guide Rail |
HIWIN—20mm |
Working Voltage |
AC220V/50Hz 1-phase/3 phase 380V/3 phase |
Operating system |
DSP control system |
Software |
Type 3, ArtCam,UG,Powermill |
Cooling mode |
Air-cooling |
Command |
G code,HPGL,U00,mmg,plt |
Diameter of cutter |
φ3.175-φ12 |
Service and Guarantee |
Technical supports and suggestions before you order a machine according to your work piece. |
Professional instruction for the operation of the machine. |
One year warranty, we will provide the consumable parts at cost price after the warranty period. |
Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications. |
24-hour technical support by email or calling. |
Factory:
Shandong Chencan Machinery Co.,Ltd. is a High-tech enterprise product and production.
All products have obtained the Euro CE and ISO9001Quality Management System Certificate and self-managed import and export right.
FAQ:
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 7-22 days after receipt of advance payment.
Package:Export High-quality Standard Fumigation-free Wooden Case for wood cnc router
(As for the package,for 1300mm*2500mm working size,all the assembling and installation is finished in our factory ,we use High-quality Standard Fumigation-free Wooden Case,then a 20’container is OK,if pacakge width exceed 2.1m,
gantry should be removed)
Lira Zhou
Export manager
Skype:c
QQ:1028875298
TradeManager ID:cn220191925
Viber/WhatsApp ID:0086-13583195229
Facebook/Linkin/Wechat ID:Lira Zhou.
Other machine details:
1325 wood working machine /4 axis Moulder /Plasma cut machine / Simple ATC / Stone engrave machine /
3D scanner / 3D 8 spindle machine/
For more videos,please contact us or check:
/channel/UCfmka-Peo9RQxG1PDkhrgxg/feed
If you interested in any model,please send us inquiry,Details info with machine picture will send to you sooner!
