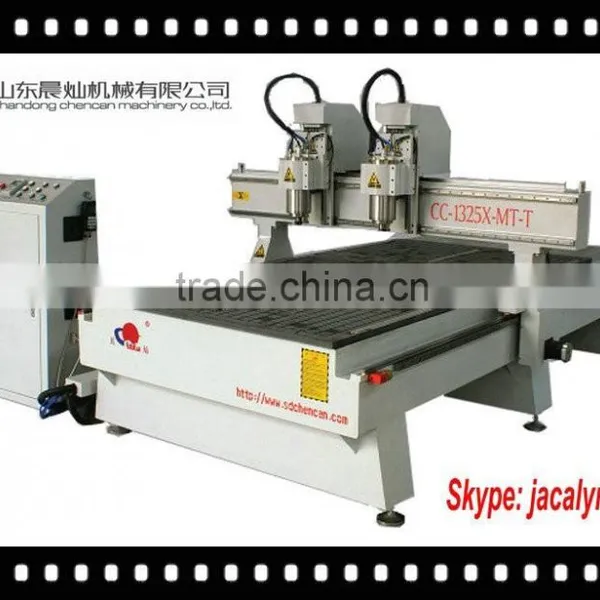

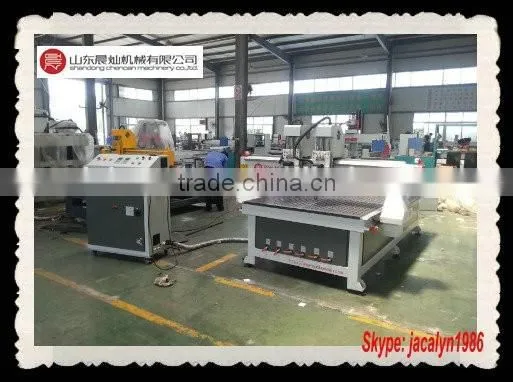

Seek Agent Multi-Heads Woodworking 1325 CNC Machine Engraver Machine for Sale CC-M1325AH2
Features for multi-head 1325 cnc machine :
1. It is convenient for the user to fix the materials by clamp and achieve scale production.
2. Two heads wood working cnc router is welded with seamless steel structure and is processed by high temperature tempering treatment and vibrating stress relief (VSR) to relief residual stress. The stability is excellent, not easy to be deformed.
3.Two heads wood working cnc router adopts gantry movement, it can process any kinds of materials freely.
4. X and Y axes adopt rack gear and Hiwin square guiding rail transmission, faster working, higher efficiency and low cost.
5. Z axis adopts imported ball-screw of Germany and imported linear orbit, stable working, high precision and long life time.
6. Well compatibility: CAD/DAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
7. Has the function of re-carving after break point and power failure.
8. Has the function of forecasting process time.
9. Adopting advanced DSP system, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
10. Perfect oil-inject system of the wood working cnc router makes maintenance much easier.
11. Has duct collector. It will clean up the carving residuum and make the operations tidier and more convenient.
12. Adopting water cooling system, it can provide good cooling effect when carving flinty materials.
Applicable industries for multi-head 1325 cnc machine:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood, aluminium board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
Processing effect for multi-head 1325 cnc machine:
It can manufacture the following effects: relief, shadow, enchasement and so on.
Technical Parameter for multi-head 1325 cnc machine:
Description |
Parameter |
X,Y Working Area |
1300*2500mm |
Z Working Area |
200mm |
Table Size |
2040*3040mm |
Resolution |
0.01mm |
Lathe Structure |
Seamless welded steel structure |
X,Y Structure |
Rack and pinion transmission, Hiwin square guide rails |
Z Structure |
Germany-made rolling ball-screw, Hiwin square guide rails |
Max. Idling Speed |
35m/min |
Spindle |
3.0 KW per spindles |
Spindle Speed |
0-24000r/min, variable speed |
Inverter |
Fuling 2.2 KW |
Working Voltage |
AC380V/50Hz |
Driver |
YASKAWA |
Working Mode |
Japan YASKAWA SERVO MOTOR |
Command |
G code (HPGL,U00,mmg,plt) |
Operating System |
DSP with USB interface |
Diameter of Cutter |
φ3.175-φ12.7 |
Cooling Mode |
Water-cooling |
Dust-collect Function |
Yes |
Work-Holding |
By clamp |
Net Weight |
1600KG |
Software |
Type 3, ArtCAM, Wentai |
