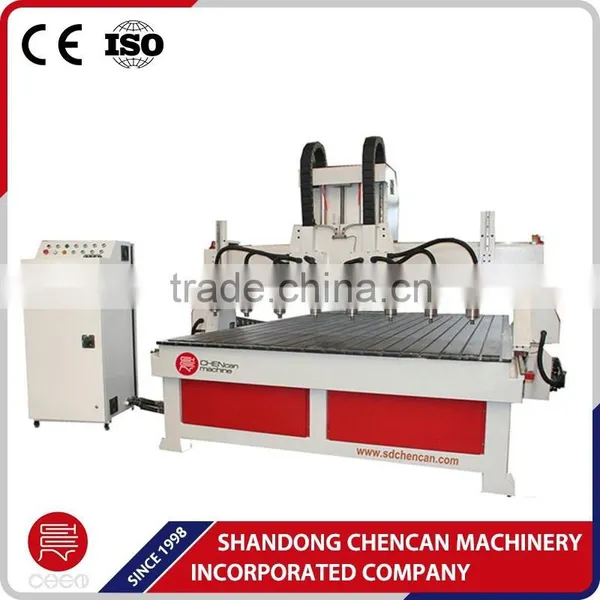

multi- heads CNC Engraving and Cutting Router for plane wood working and plus cylinder wood working as an option
CC-MS2030BH8
♦ Standard Fratures♦
1 Eight spindles can be working synchronously, distance between every two spindles can be adjusted ,
2. The machine can work with Eight work piece at the same time,alsi can finish eight perfect engraved crafts at the same time .
3 .The machine can adopts gantry movement,it can process any kinds of materials by free.

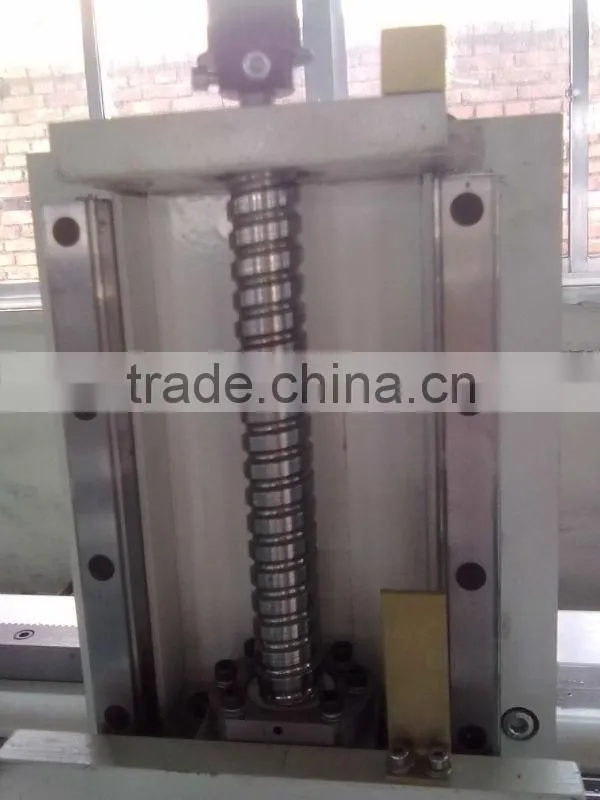

4. XY Axises used Taiwan HIWIN Square Orbit,and Germany Ball Screw with Z Axis.
5 .Good compatability.Artcam,Castmate,Type3,Wentai etc.
6. With the function of recarving after break and power failure.
7. Adopting advance DSP System with USB connection, operated with DSP Handle.
♦Applicable Areas♦
1 Wood processing: processing of various furniture such as door ,window,cabinet,craft wooden door, screen etc.
2 Advertisement: Engraving and cutting various labels and number plate.
3. Art craft:Engraving characters of any languages and graphics on gifts and souvenirs.
♦Materials♦
Wood ,aluminum board,plastic,density board ,wave board,PVC,acrylic,crystal,light marble and other normal materials and light metal materials.
♦Processing Effect♦
Carve various shade vulture,relief etc.
Engraving,Cutting,Milling and Drilling is ok .
♦ plane or flat engraving samples based on stone , wood ,acrylic ,pvc materials
♦ Technical Specification♦
Model |
CC-MS2030BH8 |
Lathe body |
Thick and Hard Steel structure |
X Y effective working area |
2000*3000*200mm |
Precision Machining |
0.05MM |
Max Traverse Speed |
30000mm/min |
Max processing speed |
35000mm/min |
Table size |
2140*3400mm |
Resolution |
0.05 mm |
Spindle power rate |
Water-Cooling 2.2kw |
Inverter |
FULING |
X,Y structure |
Rack and pinion transmission, Taiwan-made Linear Bigger orbit |
Z structure |
taiwan-made ball screw |
Motor of X , Y ,Z axis |
Servo Motor |
Guide Rail |
Hiwin—20mm |
Spindle rotating speed |
0-24000r/min |
Standard Power |
AC380V-/220V-Three Phase (Optional) |
Max. idling speed |
30000mm/min |
Cooling mode |
Water-cooling |
Command |
G code,HPGL,U00,mmg,plt |
Dust-collect function |
Yes |
Clamping mode |
By Slots |
Operating system |
DSP system |
Diameter of cutter |
φ3.175-φ6 |
Working mode |
Servo |
Weight |
2000KGS |
Working Table |
steel ( By clamp/ HT250) |
Standard Power |
AC 220 V-380V Three Phase ( Optional) |
♦ Our Certificate ♦
♦ general Production process for reference
♦cnc router factory workshop♦

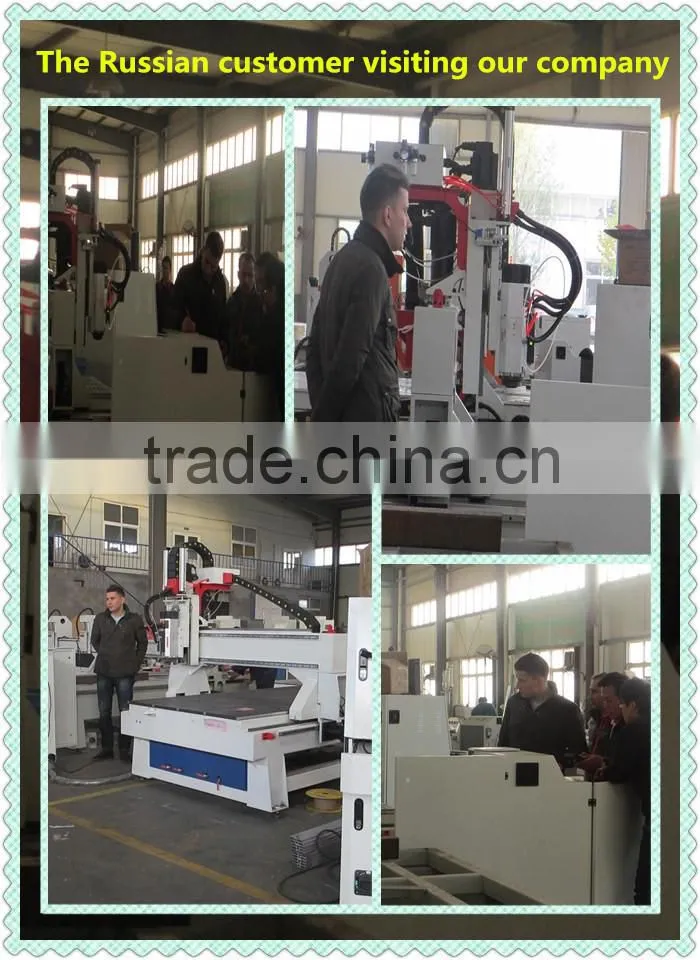

customer witness
