Specifications
1.Multi Heads CNC 3D Wood Engraving machine With Rotary Axis2. 2.2kw water-cooling spindle .
3. with four spindles
4. DSP

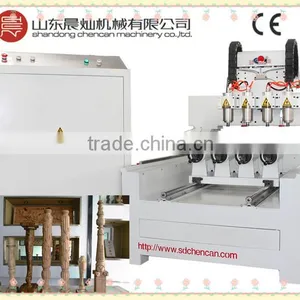

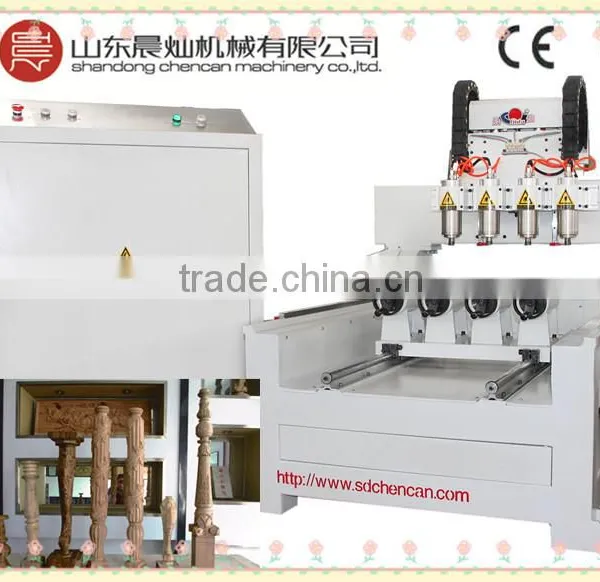

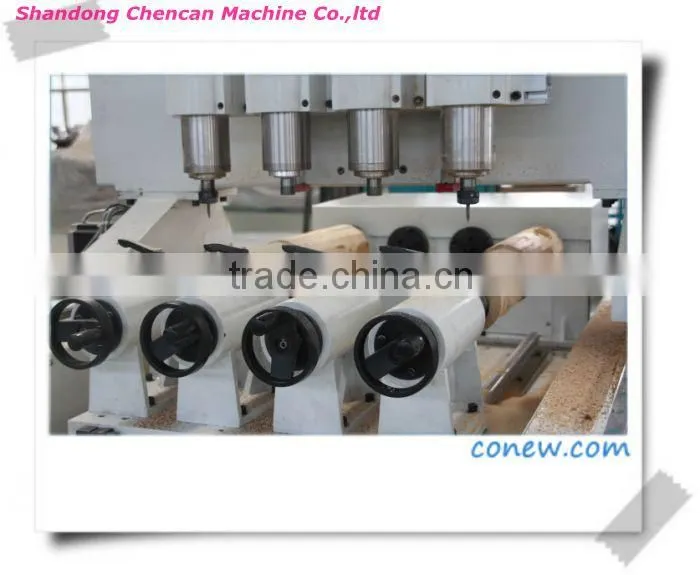

Multi Heads CNC 3D Wood Engraving machine With Rotary Axis
Model:CC-M1212BG4
Detailed Features:

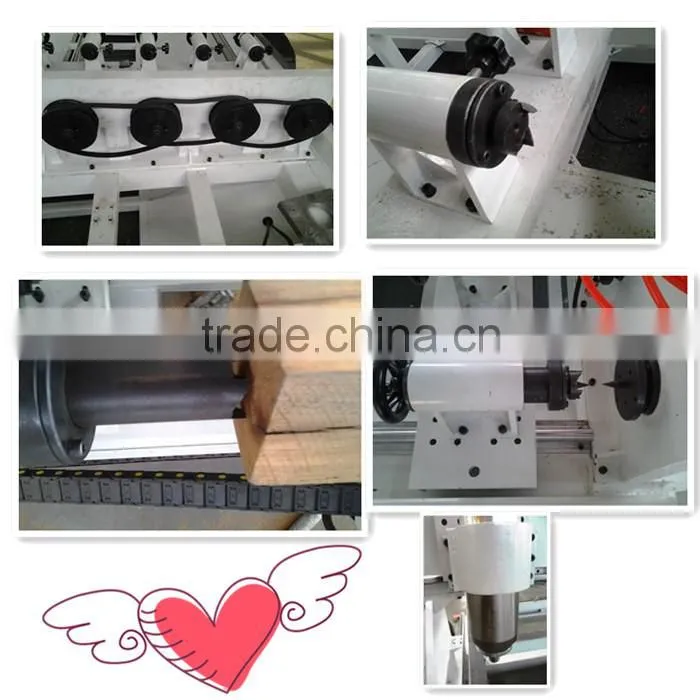

1. 4 axises machine, with 4 Rotaries , which can work at the same time or independently, and every one's max effective working area is 150mm(diameter) by 1000mm(length)
2. With Scanner or designed photo, it can do any 3D Engraving
3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.

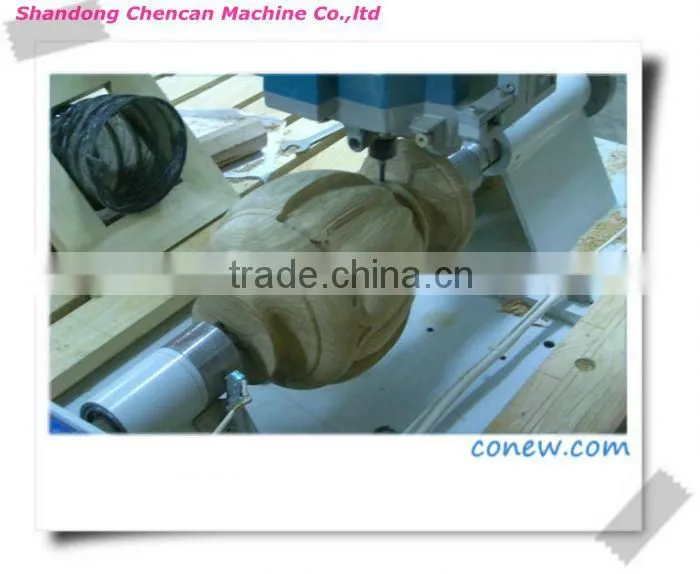

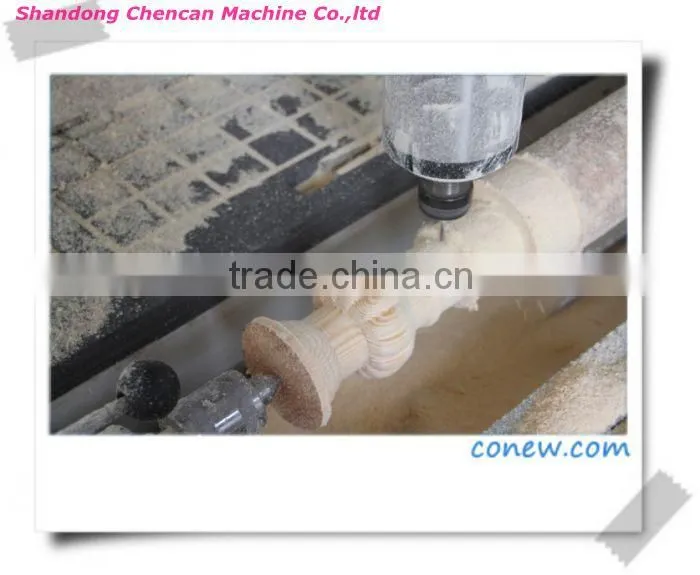

4.Has the 4throtary which is used for engraving cylinder workpiece.
5.Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
6.Has the function of re-carving after break point and power failure.
7. Adopting advanced DSP system with USB connection, operated with the handle
Technical Specifications
Description |
Parameter |
Optional parameter |
4th rotary axis max diameter |
150mm |
125mm, 200mm |
Machine dimension |
1800mm*1450*1450mm |
|
Resolution |
0.01mm |
|
Lathe structure |
Seamless welded steel structure |
|
X,Y structure |
Rack and pinion transmission, Hiwin square guide rail |
|
Z structure |
Imported ball screw |
|
Max. idling speed |
35m/min |
|
Spindle motor power |
2.2 KW |
1.5kw |
Spindle rotate speed |
0-24000r/min |
|
Working voltage |
AC380V/50Hz |
220v |
Working mode |
Stepper |
|
Cooling mode |
Water-cooling |
Air-cooling |
Dust-collect function |
Yes |
|
Work-holding |
By clamp |
|
The competitive advantage
1. High soft, famous brand electric cables, with high Abrasion, fold, high temperature , acid and alkali resistant .
2. Original Imported Taiwan Hiwin Guide Rail , Taiwan and Germany Imported ball screw.
3. We will provide you several kinds software for free, with English and Multilingual versions. Also you can get the perfect picture storage with thousands 2D and 3D designs, and some kinds of spare parts, work piece fixtures.
4. Perfect after sale service, timely reply to your any question, professional instructions for the machine, software and parts' using.
5. Any workstage is strictly processed according to Euro CE Quality Standard and ISO Quality Standard . Any set CNC Router will be done at least 72 hours careful testing and checking, from small part to the whole machine . After any part's quality inspection, finishing Basic maintenance measures, then the machine can be packaged by the specialized workers for transport.
6. Our company has powerful strength in metal Machining. In order to make sure every detail's high quality level, most of the machine's metal parts are made by our own Machining Center imported from American .
Beauty samples
The company detail:
The canton fair :
