Specifications
cnc plasma cutting machineStart system
HIWIN square orbit
HUAYUAN plasma power
rack and pinion
Start Controller Plasma Metal Cutting Machine
Brief Introduction:
1.This model is custom-made for metal processing, as achieves dual-function of both metal engraving and metal cutting. It is convenient, practical and saves cost of purchase.
2.Plasma Cutting for low carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet and other metal sheet .
3.CNC Router engraving and Cutting for wood,plastic,density board,wave board,PVC,acrylic,crystal ,aluminum board ect .
Features:
1. The 1325 engraving machine frame adopts the seamless steel structure that is firmer and more endurable than other materials, and the machine is operated simply.
2. The cutting speed is fast and the precision is high
3. The cutting mouth is small, tidy and without residue phenomenon.
4. Be based on the traditional numeral controlling system, the company has reformed the controlling method of cutting, which avoids the second repairing and maintaining.
5. This type of machine is mainly used for steel plate, aluminum plate, copper plate, iron plate, galvanized plate, titanium plate and other metal plates.
Technical parameter:
Machine Model |
CC-M1325BD |
Working area (X,Y,Z mm) |
1300x2500x200mm |
Machine structure |
Seamless steel structure lathe bed sawtooth working table and movable flat working table |
Working holding |
By clamps |
Overall Dimensions (mm) |
1640*3040*2000mm |
Precision (mm) |
0.07 |
Positioning accuracy(mm) |
0.02 |
Repeatability(mm) |
0.02 |
Idling Speed(mm/min) |
12,000 |
Working Speed (mm/min) |
8,000 |
Plasma Power Source |
45A/63A/65A |
Drive system |
Stepper motor |
Working Voltage |
AC380V/220v |
Control System |
Start control systems |
Note: All above is customized, Customization is available according to your request. | |
Part

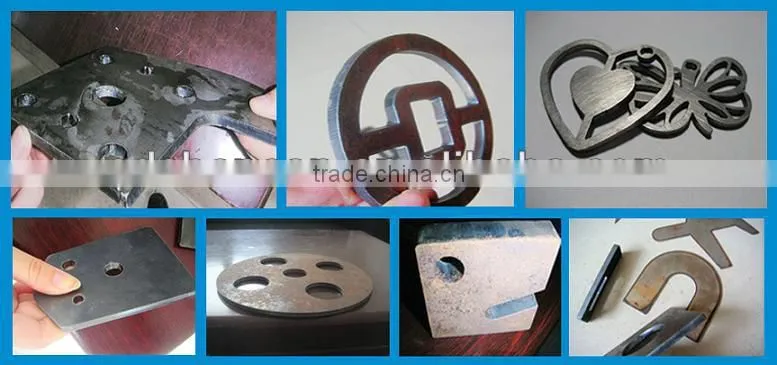

Samples:
Packaging:
One set per fumigation-free wooden case
Certificates

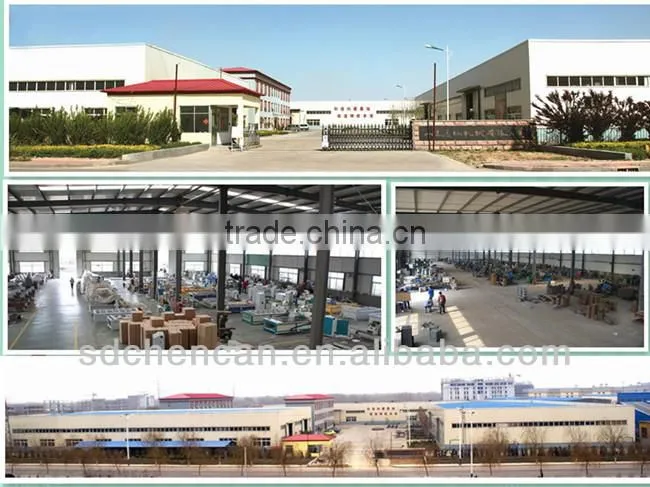

Welcome to visit our company

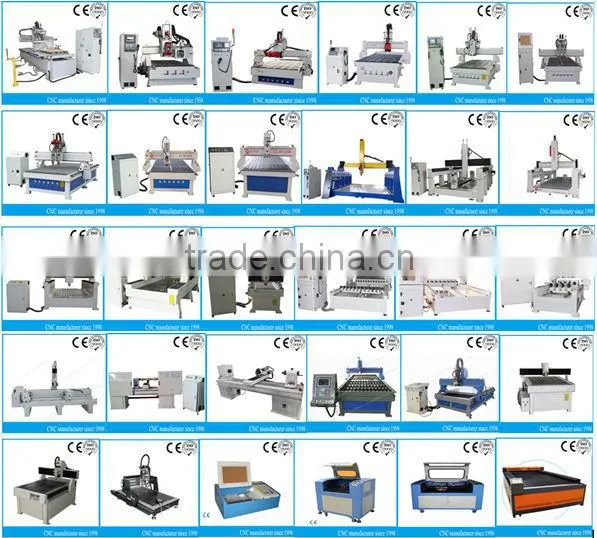

There are many other machines for your reference
