Specifications
1.Plasma metal Cutting machine2,3kw water cooling spindle
3.Material can be wood or related
4,Metal board cut

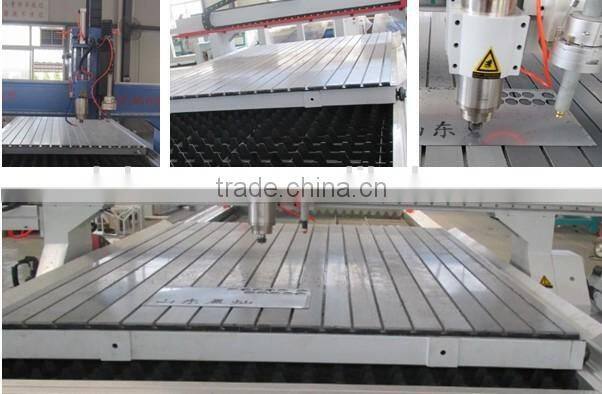

Plasma Cutting Machine with spindle also can do woodworking and metal cut

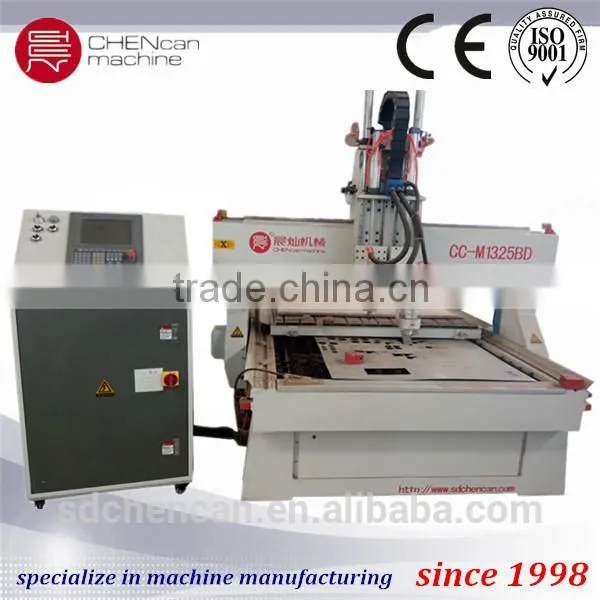

Model:CC-P1325
Main Features:
Working size:1300*2500*300mm
1,Beam using a good design, the structure has good rigidity, exercise inertia characteristics.
2,Gantry structure, Y axis synchronous dual motor dual drive and use XYZ axis linear guide, smooth transmission, high precision operation.
3,For advertising solid light, channel letters metal panels and floor cutting, cutting precision to achieve good targets.
4,With other advertising equipment (blister machine, gear cutting machine, engraving machine) supporting the formation of ad word processing pipeline, completely solve the traditional manual processing methods.
5,Cutting mouth is small, tidy, no dregs phenomenon, to avoid secondary finishing process.
6,With 3kw/4.5kw water cooling spindle,it can do woodworking also.
7,CNC control system is DSP and Start together.
8,Support Wentai, ARTCAM, Type3 software such paths generated standard G code files can also be converted by software to read AUTOCAD and other software to generate DXF format files. Control system uses the U disk swap processing files, easy to operate.
Technical parameter:
Stroke range |
1300*2500*300mm |
Process precision |
±0.05mm |
Reposition precision |
±0.025mm |
Structure |
Seamless steel structure |
X,y,z structure |
X, Y Helical rack and pinion, Z TBI ball screw |
Plasma supply |
HUAYUAN 45A |
Motor type |
Stepper motor |
Command code |
G code, HPGL, U00, mmg, plt |
Working voltage |
AC220V/380V 3phase 50-60HZ |
Operating system |
DSP/Start control system |
Driver |
YAKO |
Table |
Steel bar table |
Guide rail |
HIWIN square guide rail |
Brief Introduction:
1. This model is custom-made for metal processing, as achieves dual-function of both metal engraving and metal cutting. It is convenient, practical and saves cost of purchase. also has a special design for metal pipe cutting
2. Plasma Cutting for low carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet and other metal sheet .
3. CNC Router engraving and Cutting for wood,plastic,density board,wave board, PVC, acrylic, crystal , aluminum board ect .
package : Standard polywood for export
Sample:
Welcome to visit our factory:
ADD: West Mingjia Road, Qihe Economic Development Zone, Shandong Province, China
Tel: 0086-531-88078568 Fax: 0086-531-88078968
Website: www.
INDUSTRY PROFILE
Built 1998,16 years manufacturer and aboard after-sale service experience of CNC Machinery.
All products have obtained the Euro CE and ISO 9001:2008 Quality Certificate.
FAQ:
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 7-22 days after receipt of advance payment.
Package:Export High-quality Standard Fumigation-free Wooden Case for wood cnc router
(As for the package,for 1300mm*2500mm working size,all the assembling and installation is finished in our factory ,we use High-quality Standard Fumigation-free Wooden Case,then a 20’container is OK,if pacakge width exceed 2.1m,gantry should be removed)
For more informations ,pls contact :
Working video link
1 1325 standard size with a big rotary device link: http://youtu.be/0VQObJnFVvU
2 8 spindle with 8 rotaries machine link: http://youtu.be/OE3T4iikzhk
3 4 axis three spindle machine link: http://youtu.be/8z5E3ruoRLs
4 Carousel ATC machine working link: http://youtu.be/FbJ1iHR-Uk4
5 Linear type ATC machine with rotary device working link: http://youtu.be/CI5JkWwk-Ww
6 Stadard 1325 plasma machine link: http://youtu.be/hVqR7dhjkiQ
7 Plasma machine with spindle rotary device working link: http://youtu.be/bwhyGW2jMbg
8 Multipefunction machine with driller and saw head link: http://youtu.be/l7kNnHQAmWY
9 Mould machine with big rotary device working link: http://youtu.be/fgfiJAVyI0Q
10 Stone engrave machine: http://youtu.be/ggzon1U2dmc
11,3D scanner working video link: http://youtu.be/rRxW3nT4C64
