Help CenterDiscounted Price !! Jinan 1325 ATC 3 Axis Cnc Router , Cnc Wood Router Engraving Machine for Mold , Door , Cabinet
Related Products
-
Auto -tool Changer CNC Machine Center for Professional Panel Furniture, CabinetNegotiableMOQ: 1 Set -
CNC Machine Center With Auto Loading and Unloading for Panel Furniture, Cabinet, Wardrobe, Office FurnitureNegotiableMOQ: 1 Set
-
Cnc Router Machine High Quality Guitar Making Cnc RouterUS$ 23,800 - 26,000MOQ: 1 Set
-
Disk Auto-tool Changer Cnc Machine CenterNegotiableMOQ: 1 Set
-
Three Workstages Furniture Cnc Router With Rotating SoindleNegotiableMOQ: 1 Set

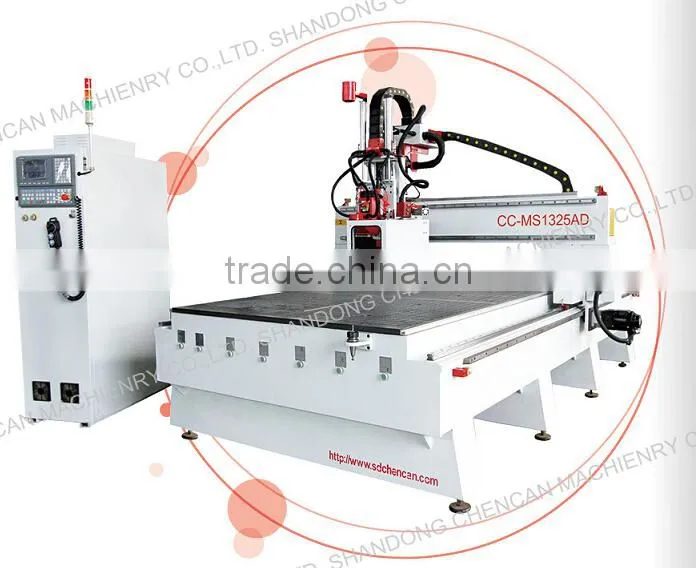

| Discounted Price!! Jinan 1325 ATC CNC Router |
|---|
|
| Product Features |
|---|
|
Optional: 1. Add 4 axis function--spindle rotart 180 degress; 2. Add rotary axis; 3. Bigger working size 1500*3000mm 2000*3000mm....; 4. 3D scanner 5. Drills and cutting saw
Standard Feature: 1. Whole machine is welded with thick seamless steel structure and heavy loadiing lathe body. Processed by high temperatue tempering treatmen and vibratin stress relief (VSR) to reduce residual stress; Ensure that the stability is excellent, not easy to be deformed. 2. Vacuum table with T-slot,can fix the work piece by suction and clamps. Attractive and durable, easier to operation, also can save your time. 3. Three axes adopt Taiwan imported HIWIN 30 big square guiding rail; XY axes adopt rack and pinion transmission (incline), fast working, hig efficiency and low cost; Z axis adopts Germany imported ball screw, with high precision and long life time. 4, Adopt high-torque YASKAWA servo motors and drives, having steady workiing capability and high positioning precision, with a higher working speed. 5. Mount the servo motors with Taiwan reducer, which can improve the working speed. 6. Adoptiing Taiwan-made Syntec control system, separate keyboard control system and color LCD screen makes the machines have perfect performance. 7. Spindle engine is Italy HSD air-cooling 9.0kw spindle wih the auto-tool changer funtion and spindle maximum speed with 24000rpm. 8. Circle type tool magazine whose capacity is 10 tools. Can changer 10 different tools one time. 9. Vacuum system with 5.5kw air cooling vacuum pump, which with big scution. 10. Well compatibility: CAD/CAM designing software e.g Type3/Artcam/Castmate/Wentai etc. 11. Has the function of re-carving after break point and power failure and forecasting process time. 12. Perfect oil-inject system makes maintenance much easier.
Applicable industries: Processing various kinds of moulds /furniture / advertising letter and so on.
Applicabl materials: Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.
Processig effect: Our router is widely used for engraving, cutting various shade vulture, relief and ect.
Basc advantage: A. High soft, famous brand electric cables, with high abrasion, fold, high temperature, acid and alkali resistant. B. Any work stage is strictly processed according to Euro CE quality standard and ISO quality standard. Any set CNC Router will be done at least 72 hours careful testing and checking, from small part to the whole machine. After any part’s quality inspection, finishing basic maintenance measures, the machine can be packaged by the specialized workers for transport. C. Our company has powerful strength in metal machines, In order to make sure every detail’s high quality level; most of the machine’s metal parts are made by our own machining center imported from American. |
| Technical Parameters | |
|---|---|
| X Y working area | 1300*2500mm |
| Z working area | 300mm |
| Precision | 0.01mm |
| Max idling speed | 70m/min |
| Max processing speed | 45m/min |
| Spindle | Italy HSD 9.0kw spindle |
| Working mode | Japan YASKAWA servo motors |
| Operating system | Taiwan Syntec system |
| Cooling mode | Air-cooling |
| Fixing | By suction |
| Ball screw | Germany/Taiwan ball screw, 2505 |
| Guide rail | Square guide rail, 30mm |
| Driver | Japan YASKAWA servo drives |
| Inverter | 11kw Fuling |
| Table surface | T slot & vacuum table |
| Frame | Welded structure |
| Spindle rotating speed | 0-24000r/min |
| Power supply | AC220V/50-60Hz or 380V/50-60HZ |
| Command | G code, HPGL, U00, mmg, plt |
| Diameter of cutter | 3.175-12.7mm |
| Standard sizes (X*Y axis) | 1500*3000mm 2000*3000mm 3000*4000mm |
| Options |
1. Added rotary axis 2. Automatic oil-injection system 3. Higher gantry . 4.Water-cooled spindles 5. 4 axis function etc. |

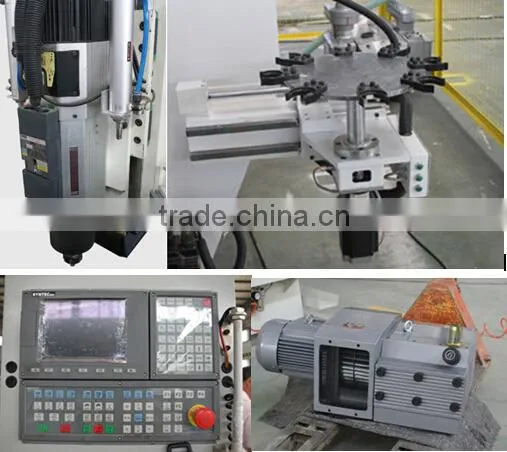

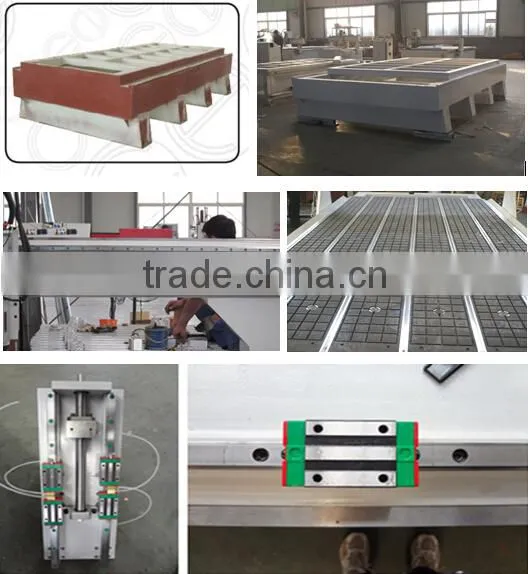

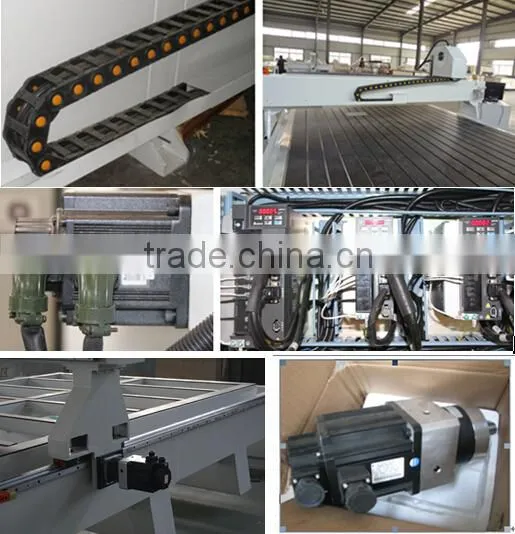

| Main Parts |
|---|
| |
|
| Application | |
|---|---|
Applicable materials |
Wood, Aluminum board, MDF, PVC, plastic, density board, wave board, acrylic, crystal, light marble and other nometal materials and so on. |
| Applicable industries |
1. Wood processing: process of various furniture such as doo, windows, cabinet, craft, wooden door, screen and so on. 2. Advertisement: engraving nd cutting various labels and number plate. 3. Art craft: engraving characters of any languages and graphics on gifts and souvenirs. |
Processing effect |
Engraving, cutting, milling, drilling, relief, shadow, enchasement and so on. |
| Samples | |
| |
| |
| Related Machines |
|---|
| |
| FAQ |
|---|
| 1. I never use this kind of machine before, is it easy to learn? |
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance. |
| 2. If the machine has problems, what can you do to help? |
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed. |
| 3. How does it work? |
Under CNC Machining, machine tools function through numerical control. A computer program is customized for an object and the machines are programmed with CNC machining language (called G-code) that essentially controls all features like feed rate, coordination, location and speeds. With CNC machining, the computer can control exact positioning and velocity. |
| 4. How could I know if this machine is suitable for me? |
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided. |
| Service and Guarantee |
|---|
1. Technical supports and suggestions before you order a machine according to your work piece. 2. Professional instruction for the operation of the machine. 3. One year warranty, we will provide the consumable parts at cost price after the warranty period. 4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications. 5. 24-hour technical support by email or calling. |
Part Replacement |
Customers have to send the broken parts to us within one week to our factory address: West Mingjia Road, Qihe Economic Development Zone, Shandong Province. We will check and send you the new one within one week. 1. Customer has to bear the cost of returning the broken parts. 2. If the broken parts is not man-made damaged, we will afford the cost of the new parts and its freight cost. |
| Package&Factory |
|---|
|
|
