Brief introduction:
EL-DN25C Program controlled torsion and twist machine is made on the basis of th original electric torsion
and twist machine. The program of machine is automatic correction, that keep the all products are same.
Parameters specification:
| EL-DN25C Program Controlled Twist and Torsion Machine | ||
| Enclosed Dies |
6 kinds for square steel 3 kinds for flat iron |
|
| Max Working Ability | Length | ≤200-800mm |
| Specification | ≤25mm×25mm | |
| Motor Performance |
Power: 4KW Voltage: 220V/380V/415V/440V |
|
| Packing Dimension | 1400*620*1100mm | |
| N.W. (kg) | 550 | |
| G.W. (kg) | 600 | |
Machine features:
1. Manual setting and automatic repetition, guaranteeing the product processing homogeneity
and reducing labor time and intensity.
2. Spindle Speed uniform, bending coarse and ensure that the smaller profile,
the machine can play the most effective role in its function
3. It is easy to change the dies, only need several seconds.
4. The max working ability is 25*25 square steel. And it can twist 4pcs φ12mm round steel
or 12*12mm square steel together.
5. It can twist 200-800mm pretzel. If the length exceeds 800mm, we can twist the part by segmentation method.
With high production efficiency, it can twist 600pcs of 12*12mm square steel per hour.

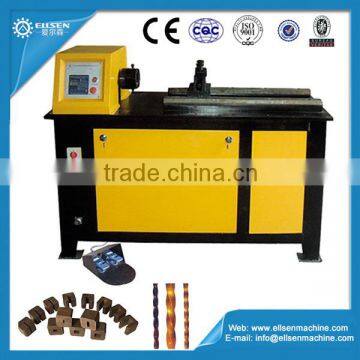

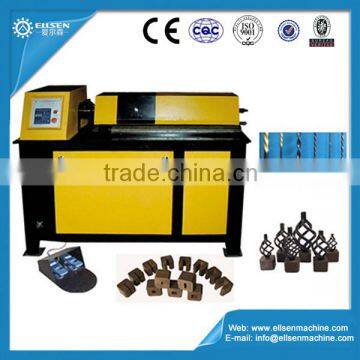

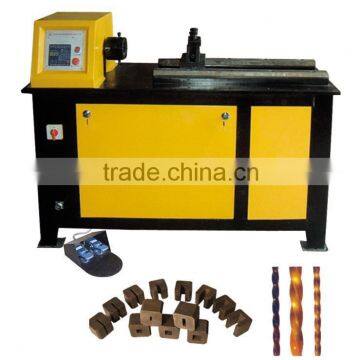

Machine photos:
Package:
Iron craft produced by the machine:
