Brief introduction:
EL-DN25D Program controlled (two-in-one) torsion and twist machine is made on the basis of the original electric torsion
and twist machine. The program of machine is automatic correction, that keep the all products are same.
For this machine, the basket twisting mechanism can be exchanged with the tailstock of the origial machine.
To take apart the stretching slide guide of the twist tailstock, then push on the flower basket mechanism and
connect it with the original power outlet to twist flower basket. Therefore the machine can twist not only pretzel shape
but also flower basket (bird cage).
Parameters specification:
| EL-DN25D Program Controlled Twist and Torsion Machine | ||
| Enclosed Dies |

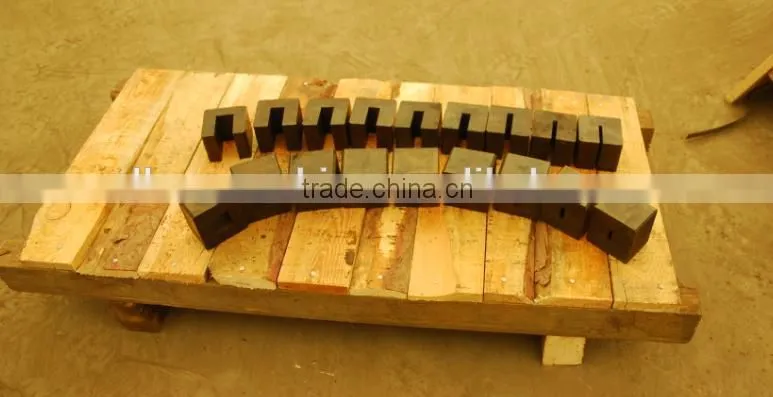

6 kinds for square steel 3 kinds for flat iron, 4 kinds for basket |
|
| Max Working Ability | Length | ≤200-800mm |
| Specification | ≤25mm×25mm | |
|
Square steel : 6*6mm, 7*7mm, 8*8mm Round steel: Ø6mm, Ø8mm | ||
| Motor Performance |
Power: 4KW Voltage: 220V/380V/415V/440V |
|
| Packing Dimension | 1500*700*1400mm | |
| N.W. (kg) | 600 | |
| G.W. (kg) | 650 | |
Machine features:
1. Manual setting and automatic repetition, guaranteeing the product processing homogeneity and reducing labor time and intensity.
2. Spindle Speed uniform, bending coarse and ensure that the smaller profile, the machine can play the most effective role in its function
3. It is easy to change the dies, only need several seconds.
4. The max working ability is 25*25 square steel. And it can twist 4pcsφ12mm round steel or 12*12mm square steel together.
5. It can twist 200-800mm pretzel. If the length exceeds 800mm, we can twist the part by segmentation method.
With high production efficiency, it can twist 600pcs of 12*12mm square steel per hour.

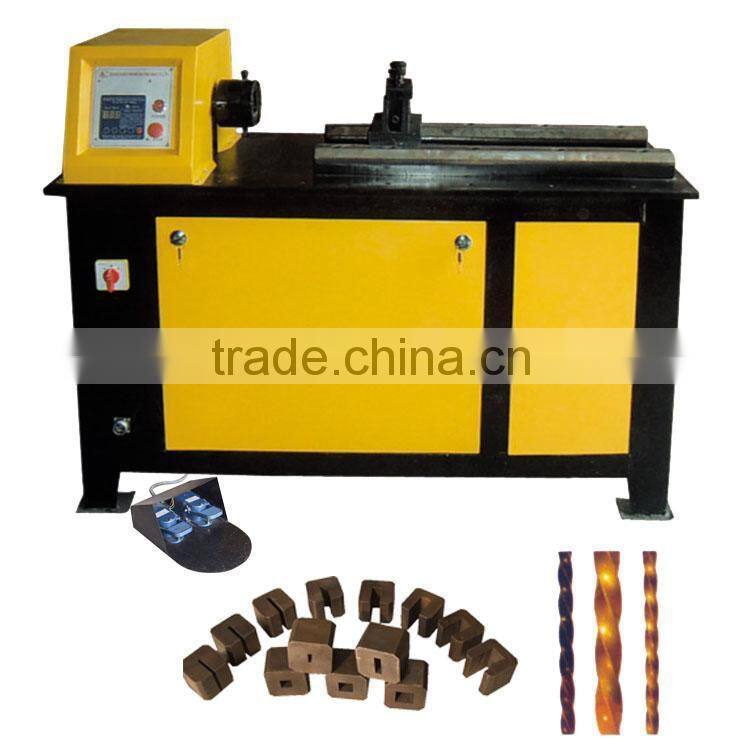

Machine photos:
EL-DN25C wrought iron twist machine :
if want to know more about this machine , please click below picture, you will have more informations about this machine
Package :

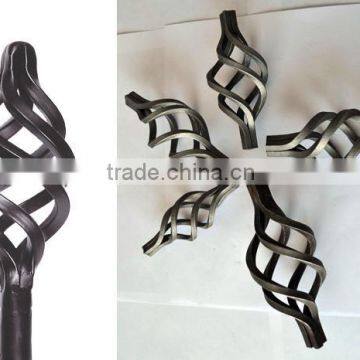

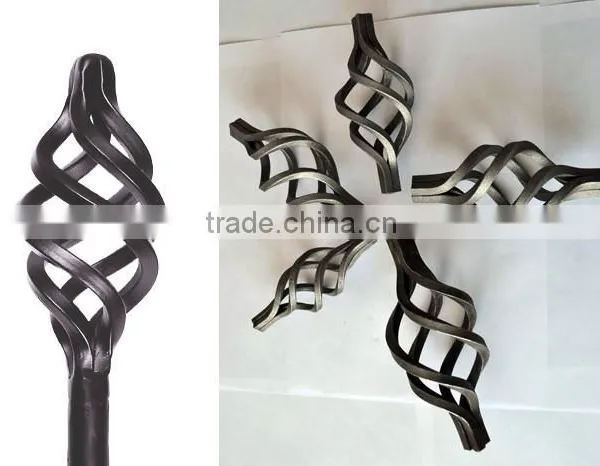

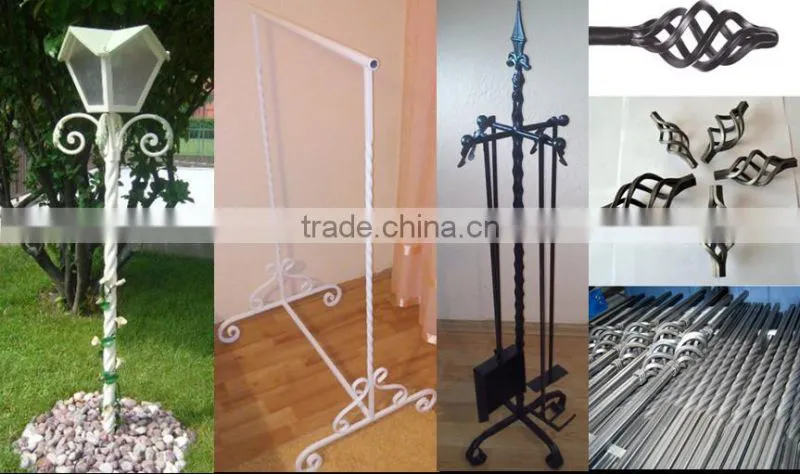

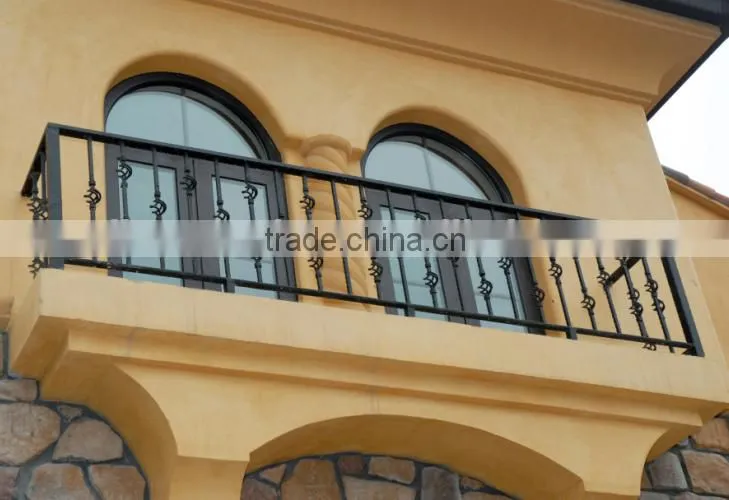

Iron craft produced by the machine:
