Help CenterHot Sale Craft&smart Mold 5 Axis CNC Machine Center
Related Products
-
Mini Cnc 5axis Mold Machine Center CC-V0404-5SNegotiableMOQ: 1 Set -
Craft&smart Mold 5 Axis CNC Machine Center CC-V0404-5SNegotiableMOQ: 1 Set
-
Crafts & Smart Mold 5 Axis CNC Machine Center CC-GM4040B-5SNegotiableMOQ: 1 Set
-
Cnc Router Machine Woodworking 1325NegotiableMOQ: 1 Set
-
Machine Cnc Router 5DNegotiableMOQ: 1 Set
Features
1. Guided by computer-aided design (CAD) system to achieve machines’ optimum structural design. Machine adopts reinforcing aluminum alloy construction, box structure and thick-walled. Strengthening ribs are welded inside. These make machine have excellent rigidity.
2. Equipped with high-level precision linear guide rails. High speed AC servo motors ensure machine having good stability during working with high speed.
3. X, Y, Z adopt high precision pretension ball screw direct drive mode, suitable for high precision strong cutting.
4. With high performance, high reliability and high speed Mach 3 CNC controller, the processing speed is fast and the efficiency is high.
5. Dynamic graphic tool path display, intelligent warning display and self-diagnosis function make operation and maintenance easy. Multi read-ahead control is particularly suitable for high speed and large capacity program tooling and demonstration.
6. The operation interface is designed according to human visual sense system, which makes people's visual sense to reach the most comfortable state. Portable hand-held remote control unit greatly facilitates tool setting, test cutting, processing and security.
7.Key parts are measured by three coordinate measuring detection and United Kingdom RENISHAW dual-frequency Laser Interferometer, test them thoroughly to ensure that geometric precision and accuracy.
8.Machine size can be customized according to customer requirements:
standard size CC-GM1325B-5S
X:Y:Z 1300*2500*1000mm C:±360° A:±120°
Rotary working size: Height 800mm, Chuck Dia 400mm, ing Dia 600mm
Standard Size CC-GM1835B-5S
X:Y:Z 1800*3500*1200mm C:±360° A:±120°
Rotary working size: Height 3500mm, Chuck Dia 1500mm, ing Dia 1800mm
Applicable industry
Sculpture, valves, cam, mold and plate disc type and tank shells and other types of non-metallic parts of milling, drilling, boring, especially suitable for a variety of complex shape two or three dimensional convex model and complex cavities and surfaces, and also sculpture industry.
Main Parameter:
Model |
CC-GM4040B-5S |
Working Size |
X:Y:Z 400*400*720mm C:±360° A:±120° |
Rotary working size |
Height:400mm Chuck Dia 200mm Max.Working Dia 400mm |
Frame |
reinforcing aluminum alloy construction, box- structure, thick-walled, more-ribbed |
Spindle |
Constant power water cooling spindle, 0-24000r/min |
Drive Mode |
Servo |
Reducer |
Robot reducer with high precision and large torque |
Controller |
Mach 4 or Germany 6-axis CNC Controller |
Accuracy |
Working Accuracy 0.1mm Repositioning Accuracy 0.04mm |

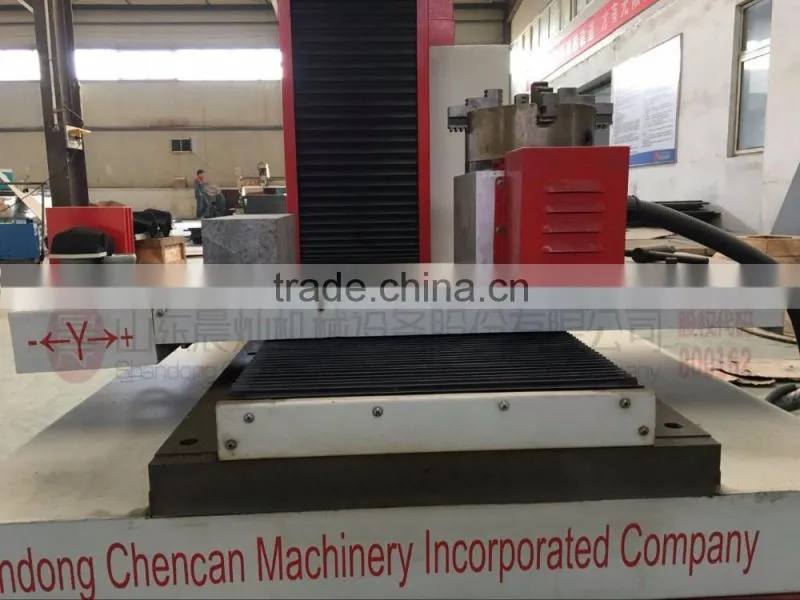

Main parts

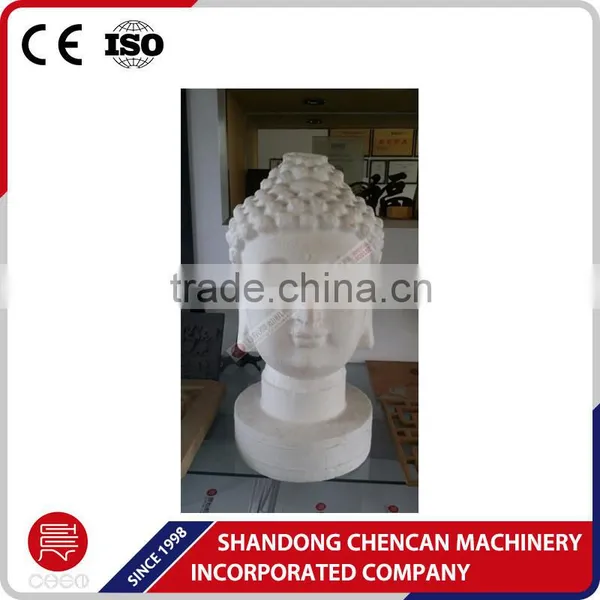

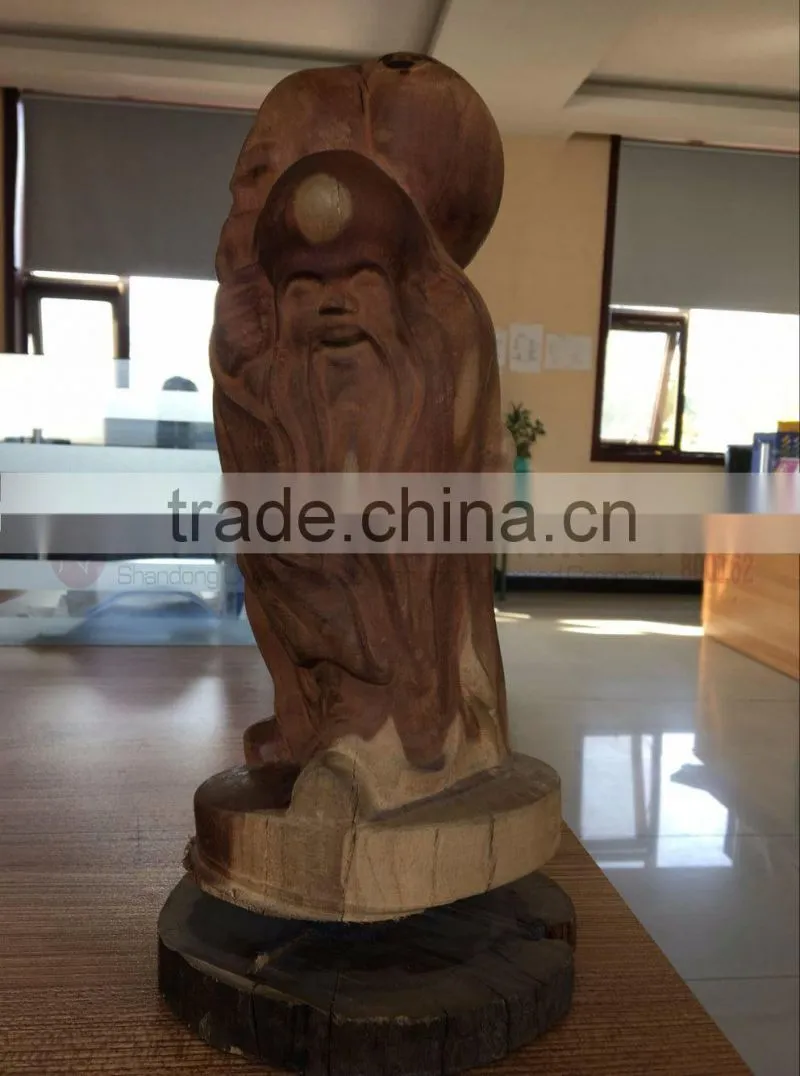

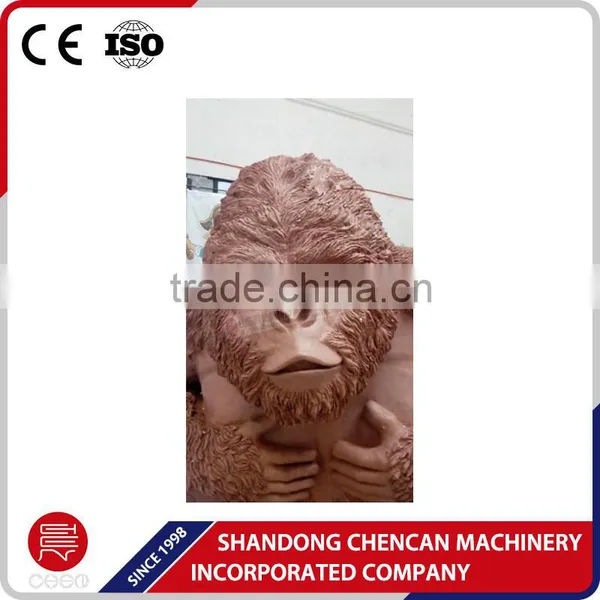

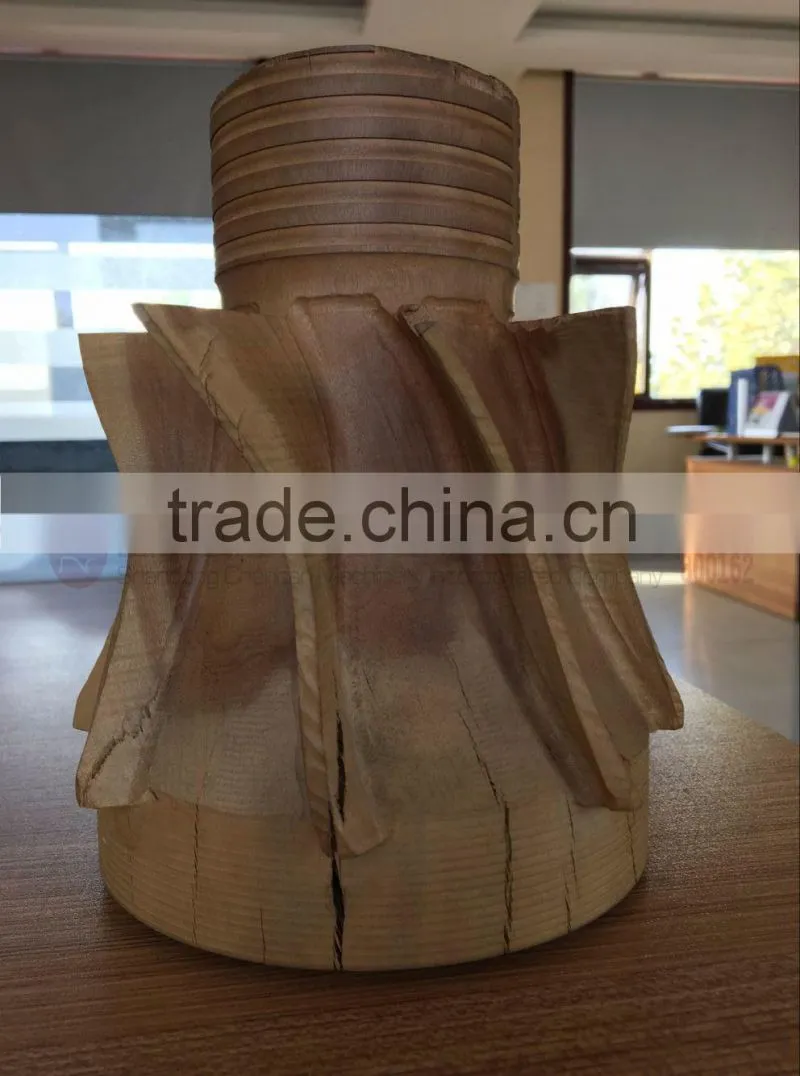

Sampls
more information pls contact
whatsapp no:008613562499855
